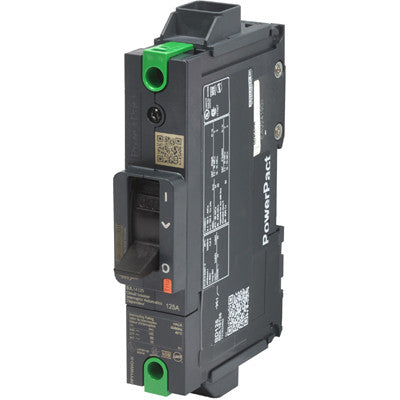

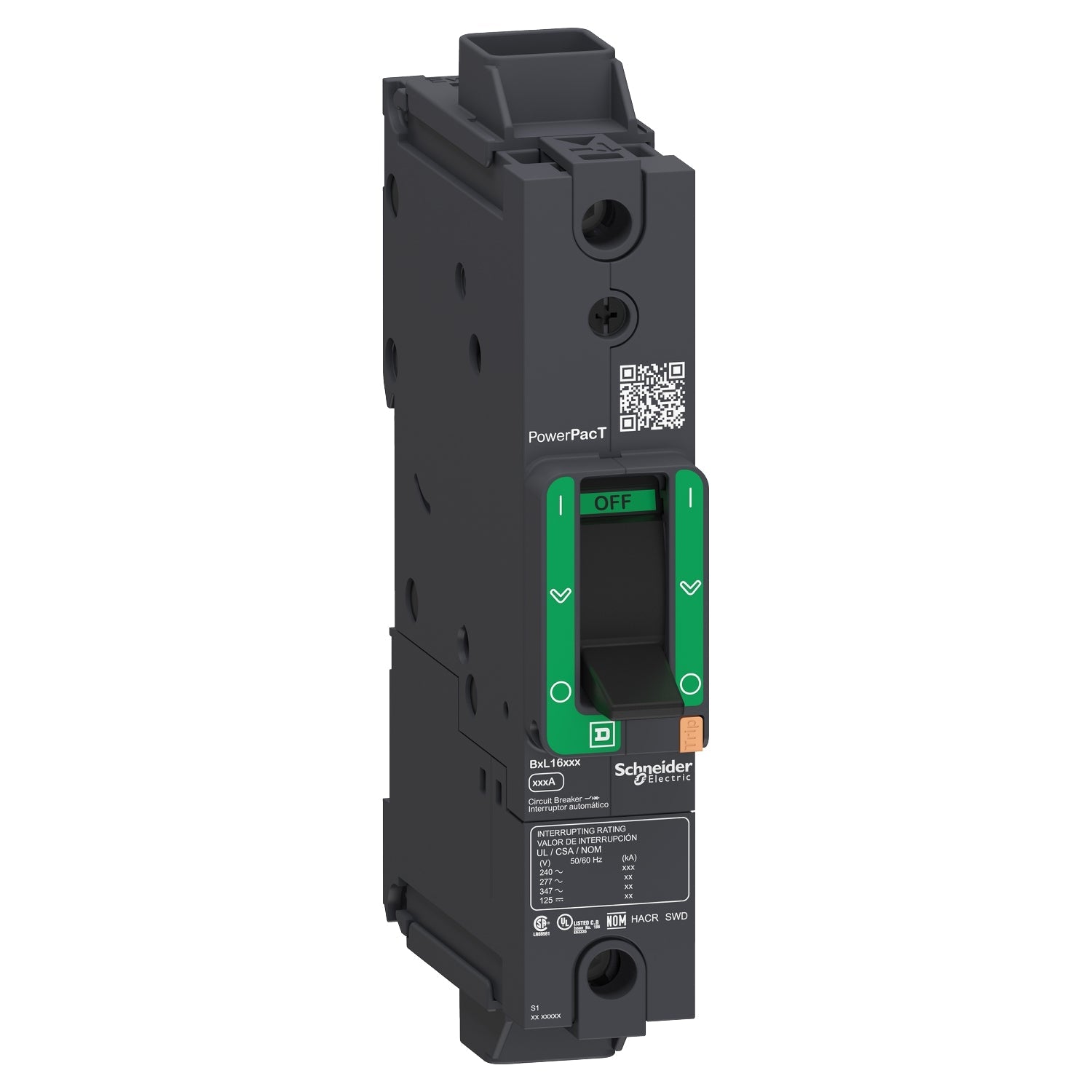

Schneider Electric BDL16040 Circuit Breaker | 600V 40A 1P 18kA@480V Feed-Thru Powerpact

Product Description:
The Schneider Electric BDL16040 is a Molded Case Circuit Breaker from the Powerpact family. It is a 1-pole, 40 amp breaker rated for 600 volts with an AIC rating of 18kA at 480V. This model features thermal magnetic protection and a feed-thru connection for reliable circuit interruption.

Key Features:
✔ Part Number: BDL16040
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDL
✔ Voltage: 600
✔ Amperage: 40
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Protection: Thermal Magnetic
✔ UPC: 060648114850
✔ GTIN: 03606481148506
✔ Country of Origin: Mexico
✔ Dimensions: 1.06 in x 5.39 in
✔ Weight: 2
✔ Certification: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Wire Size: AWG 6...AWG 2/0 fine stranded aluminum/copper, AWG 14...AWG 3/0 rigid or stranded aluminum/copper
