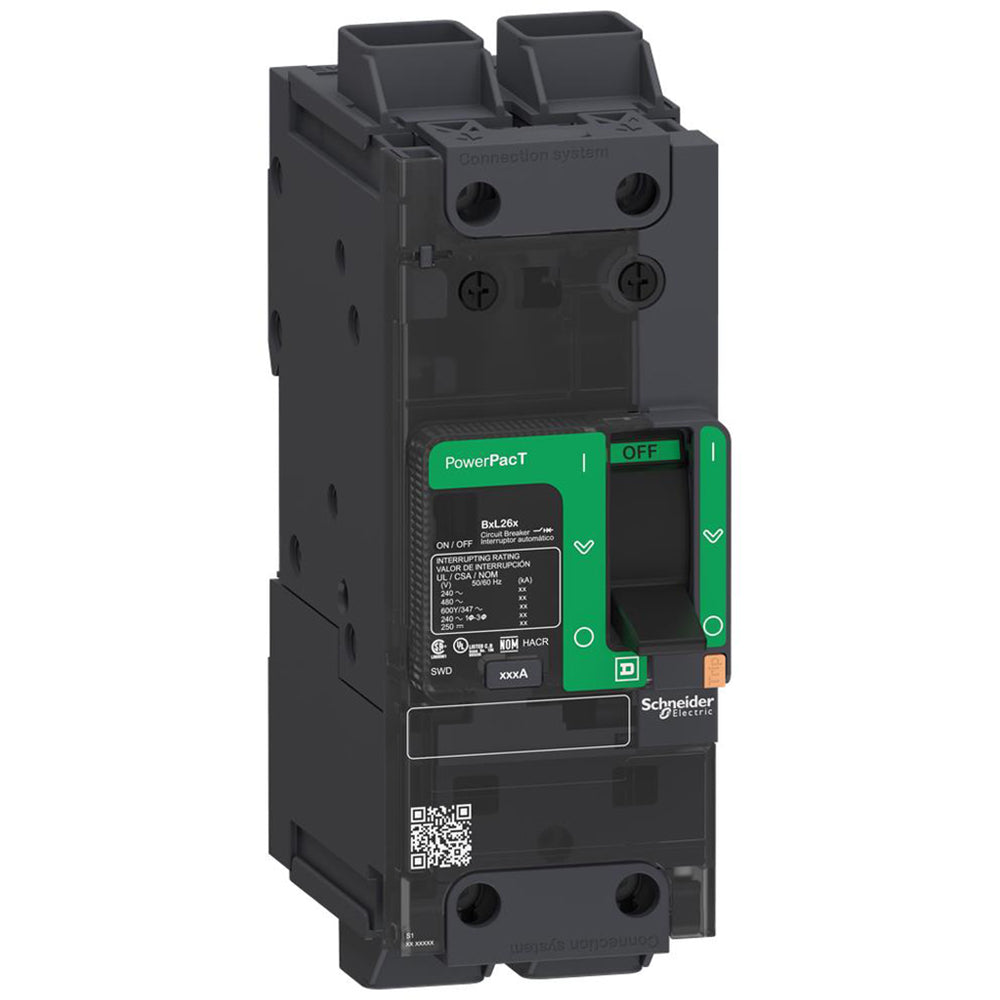

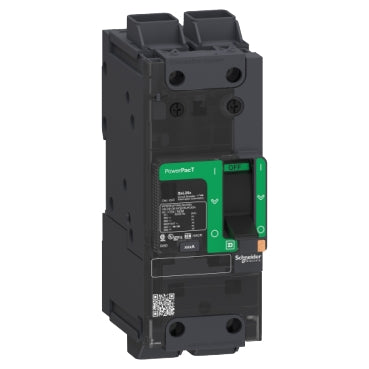

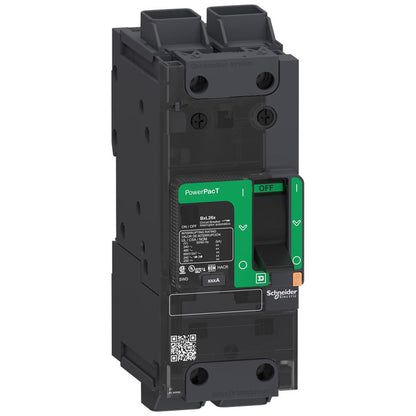

Schneider Electric BDL26015 Circuit Breaker | Powerpact BDL 600V 15A

Product Description:
The Schneider Electric BDL26015 is a Molded Case Circuit Breaker from the Powerpact family. It features a 2-pole design with a 600V, 15A rating and an AIC rating of 18kA@480V. This breaker includes Thermal Magnetic protection and uses a Feed-Thru connection for easy installation. It supports a wide range of wire sizes and operates in temperatures from -13°F to 158°F.

Key Features:
✔ Part Number: BDL26015
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDL
✔ Voltage: 600V
✔ Amperage: 15A
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Everlink Lug Both Ends
✔ Frame Size: 125A/BD
✔ MCM Size: Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
✔ Breaker Type: Standard
✔ Temp Rating: -
