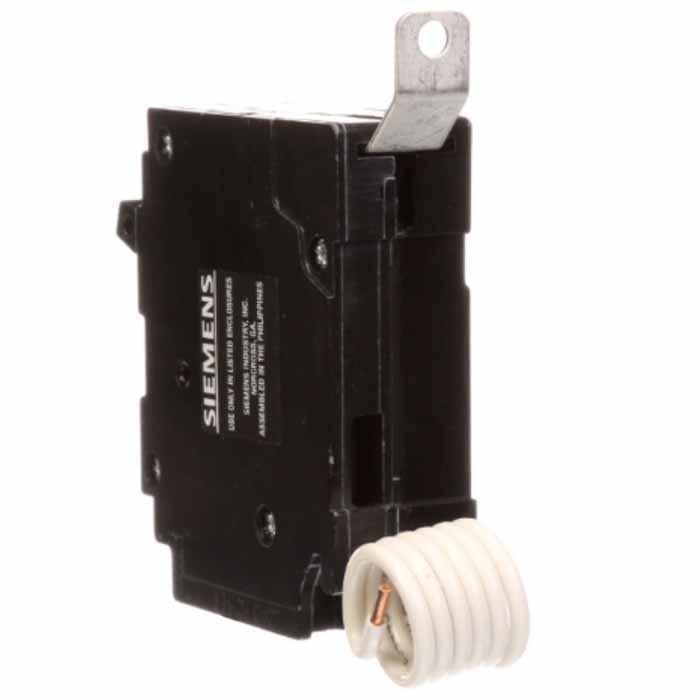

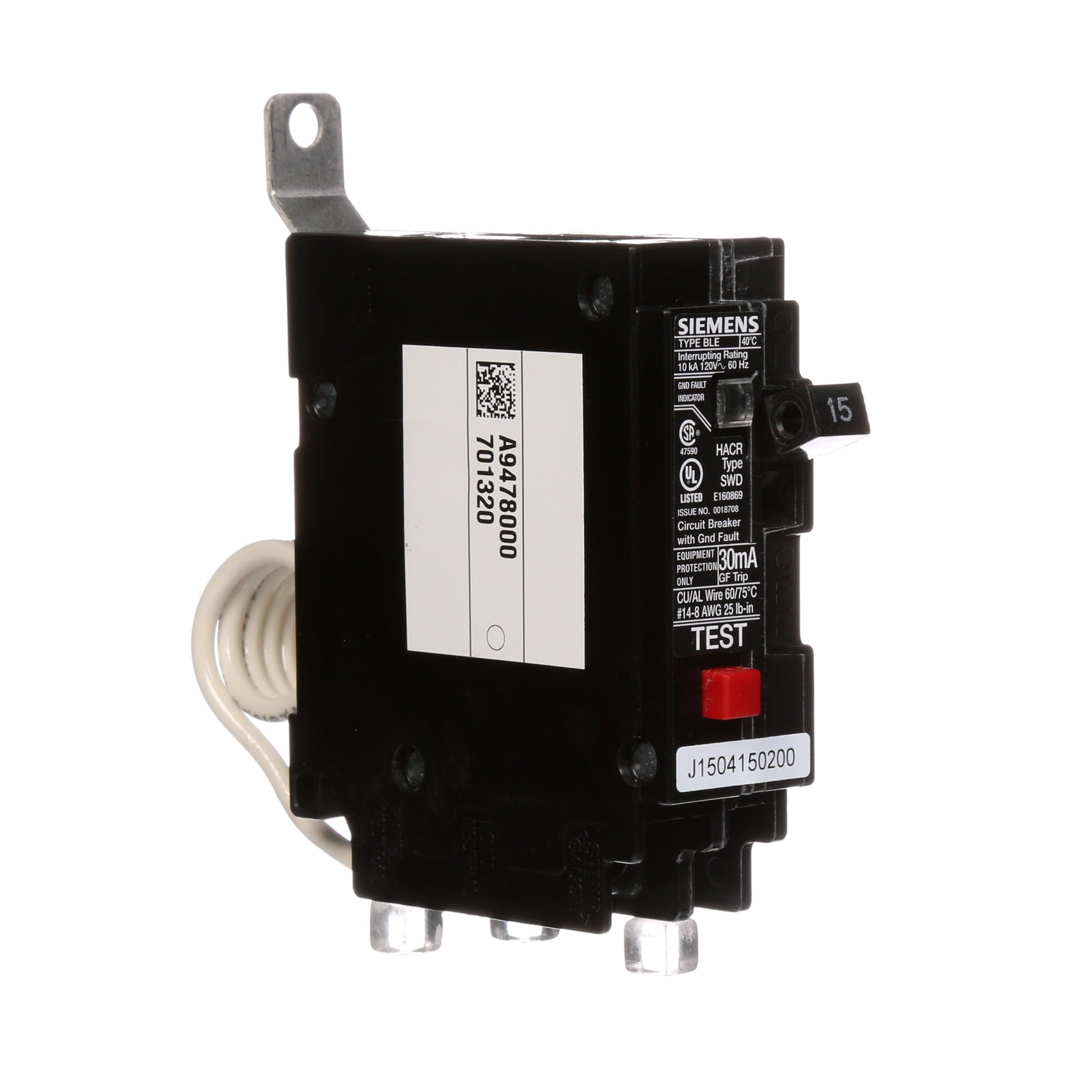

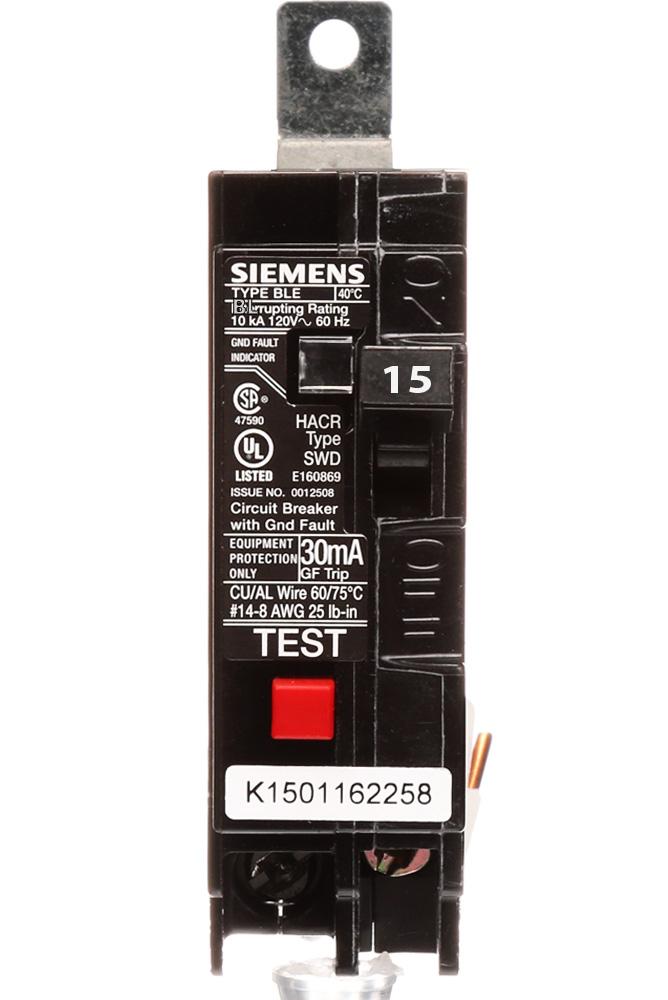

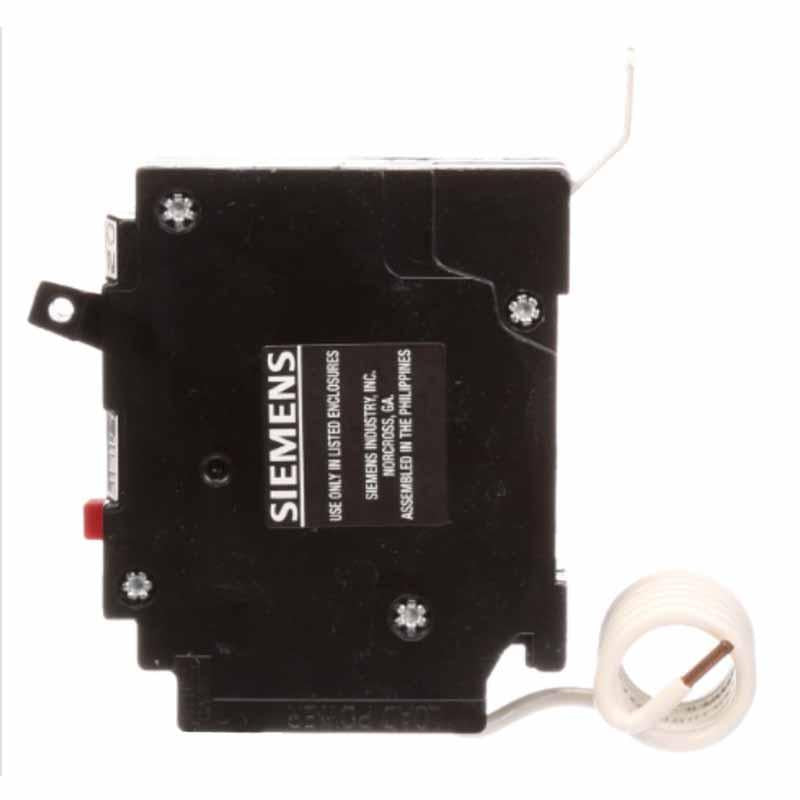

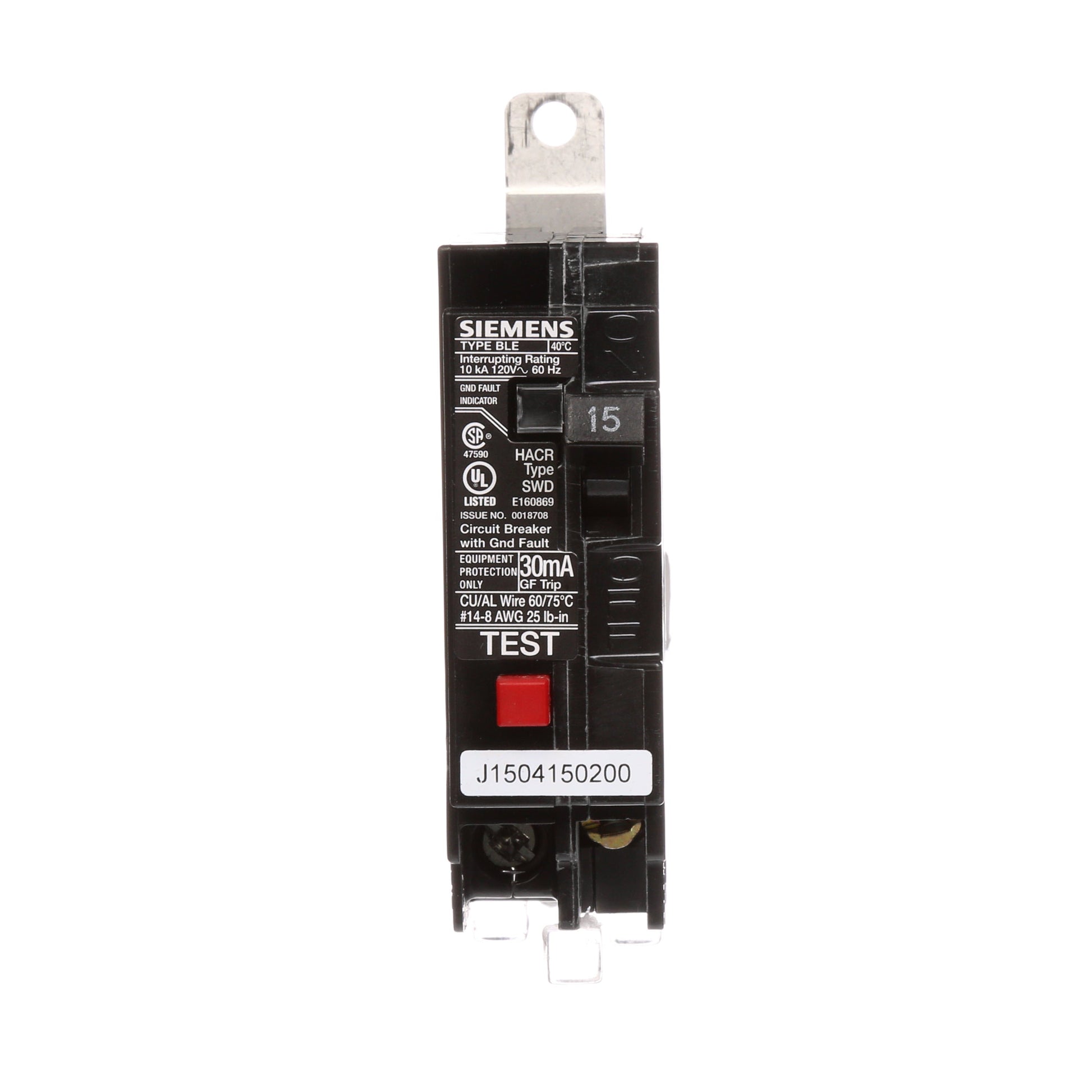

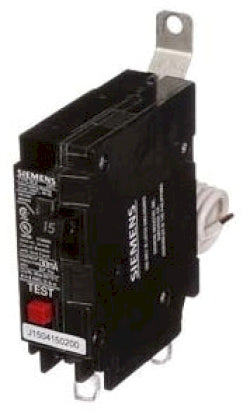

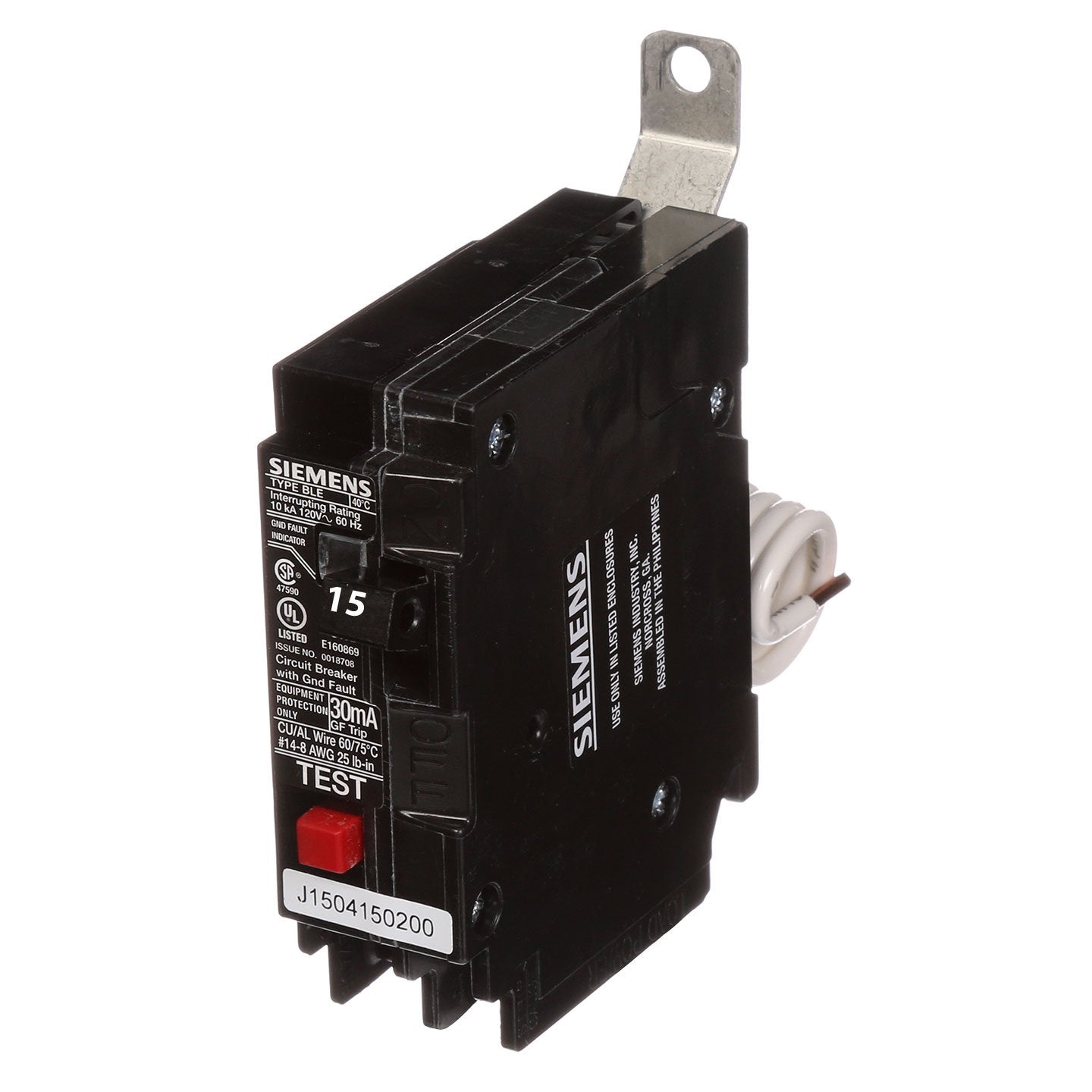

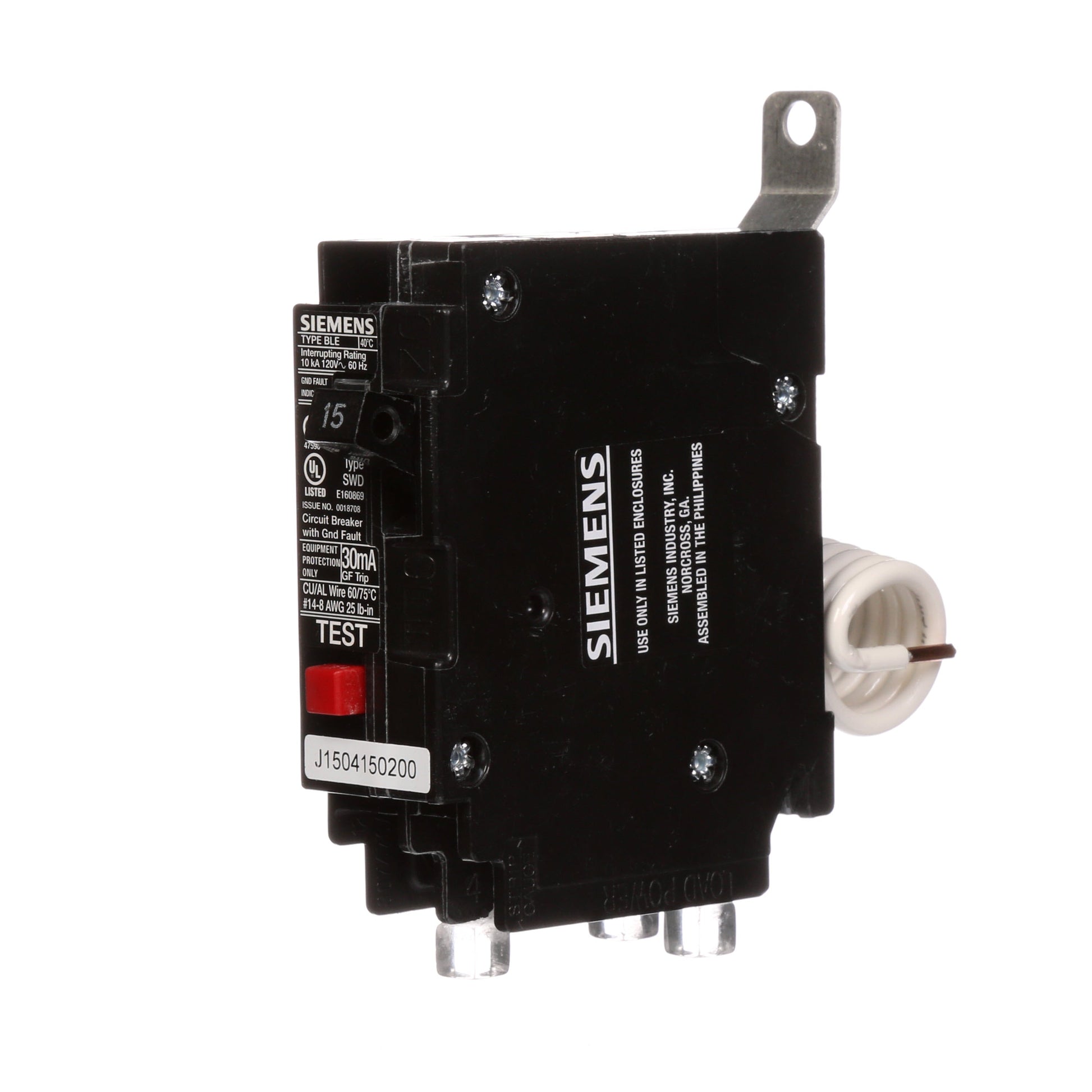

Siemens BE115 Circuit Breaker | 120V 15A 1P 10kA@120V Bolt-On BL Series

Product Description:

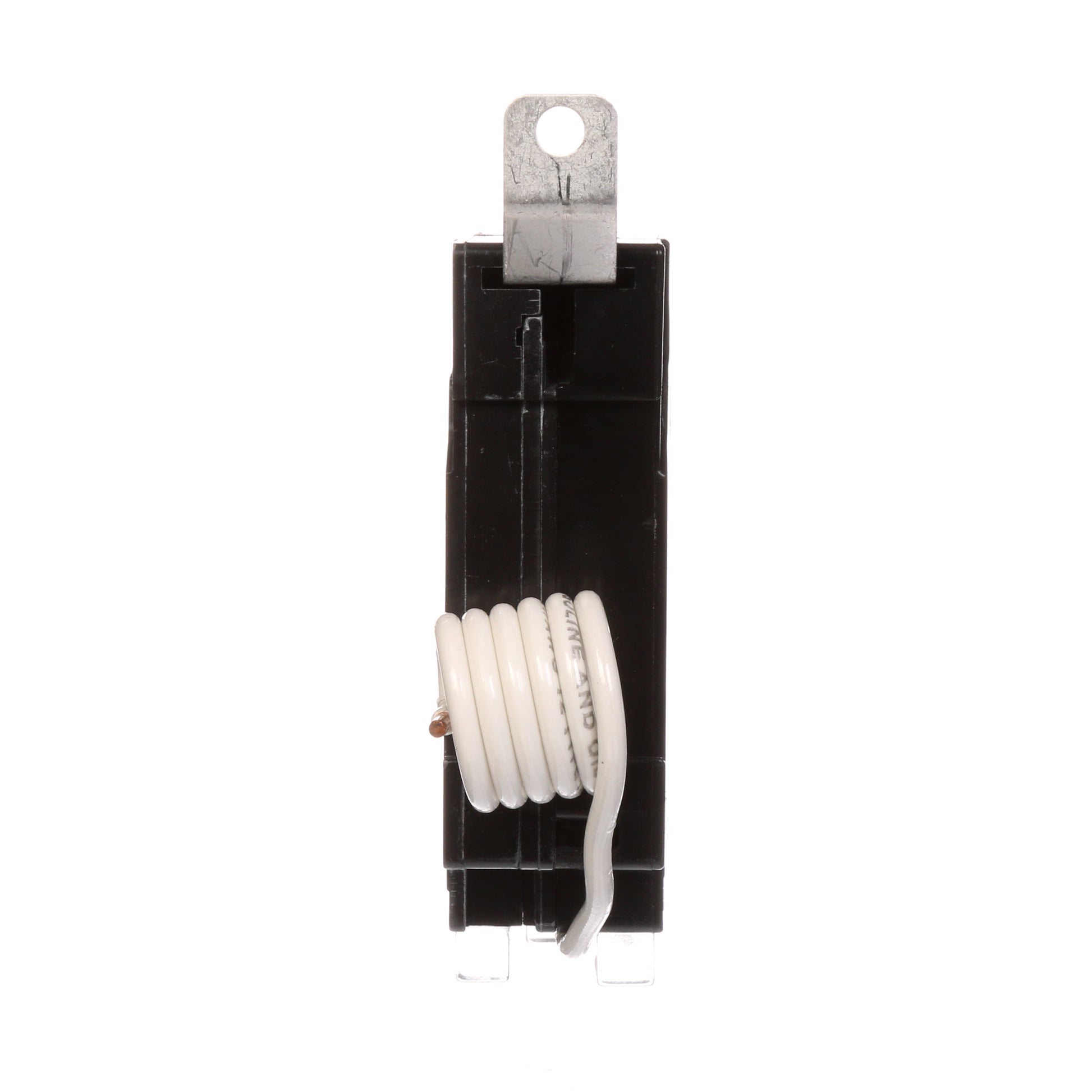

The Siemens BE115 is a Molded Case Circuit Breaker from the BL Series family. It is a 1-pole, 15 amp breaker rated for 120 volts with a 10kA AIC rating. This BLE type breaker uses a bolt-on connection and provides thermal magnetic protection. It is designed for use in Siemens P1 panelboards.

Key Features:
✔ Part Number: BE115
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BLE
✔ Voltage: 120
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 60A/BLE
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Ground Fault Equipment Protection
✔ Protection: Thermal Magnetic
✔ UPC: 783643266094
✔ GTIN: 00783643266094
✔ Country of Origin: Philippines
✔ Dimensions: 4 in x 5 in x 5 in
✔ Weight: 0.51
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
✔ Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
