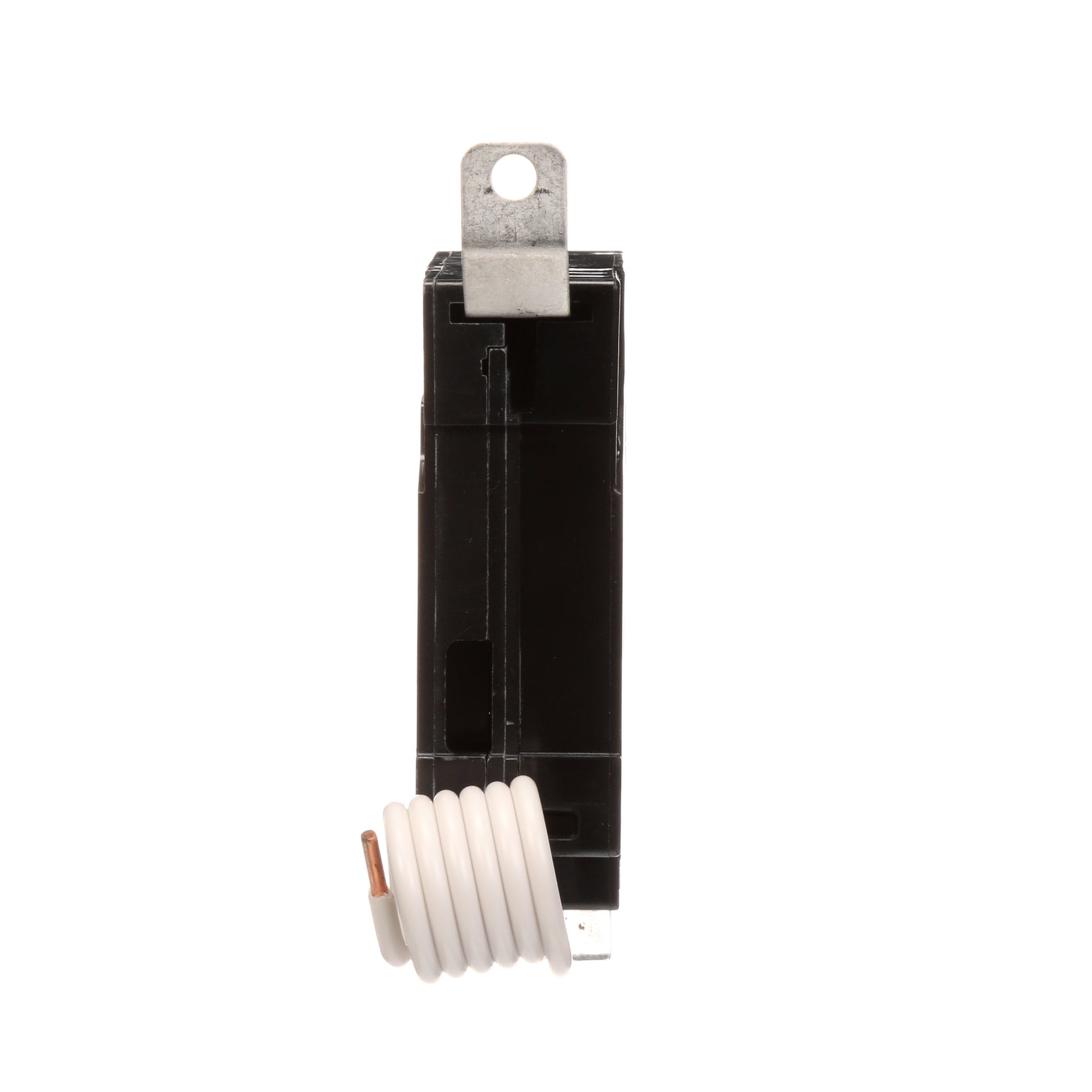

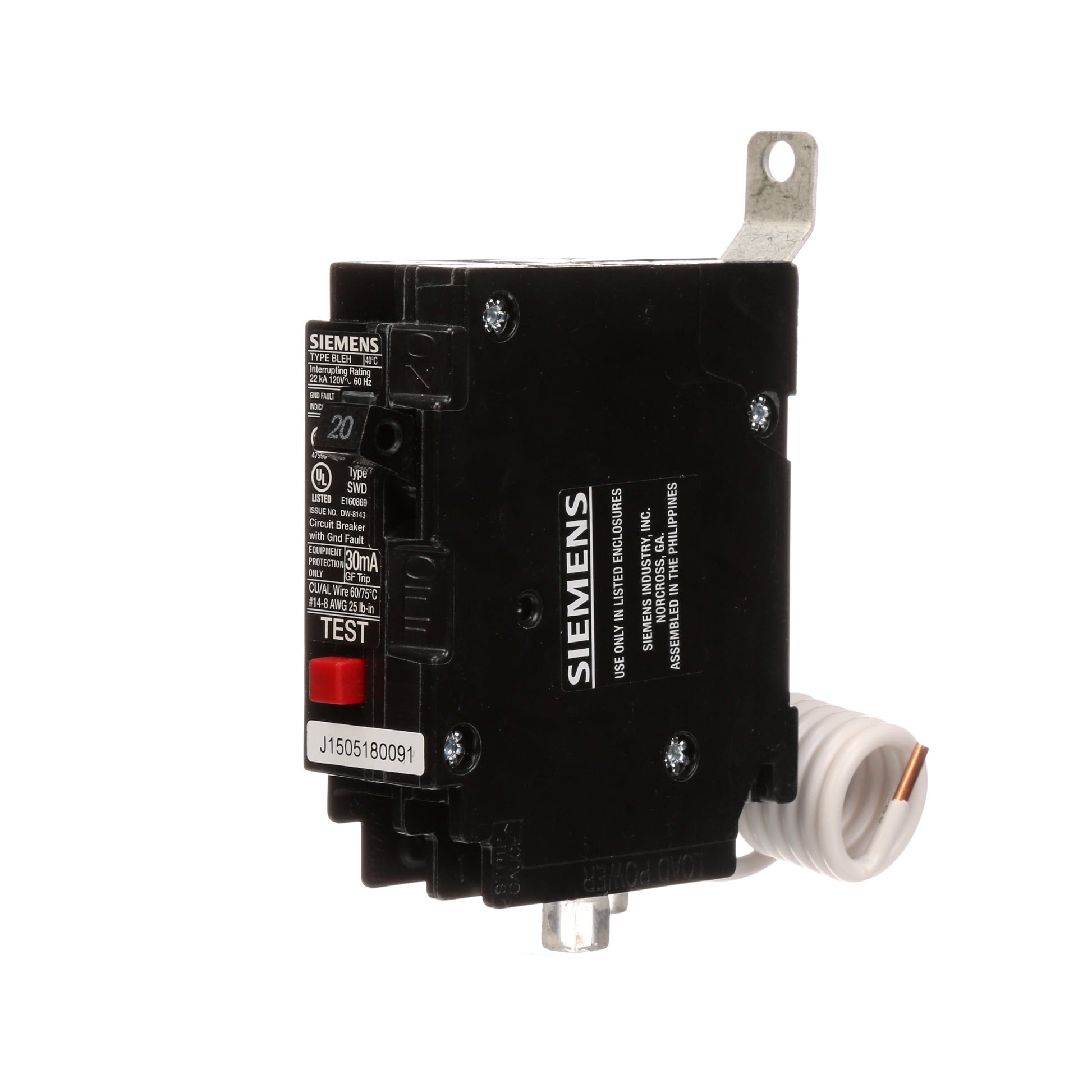

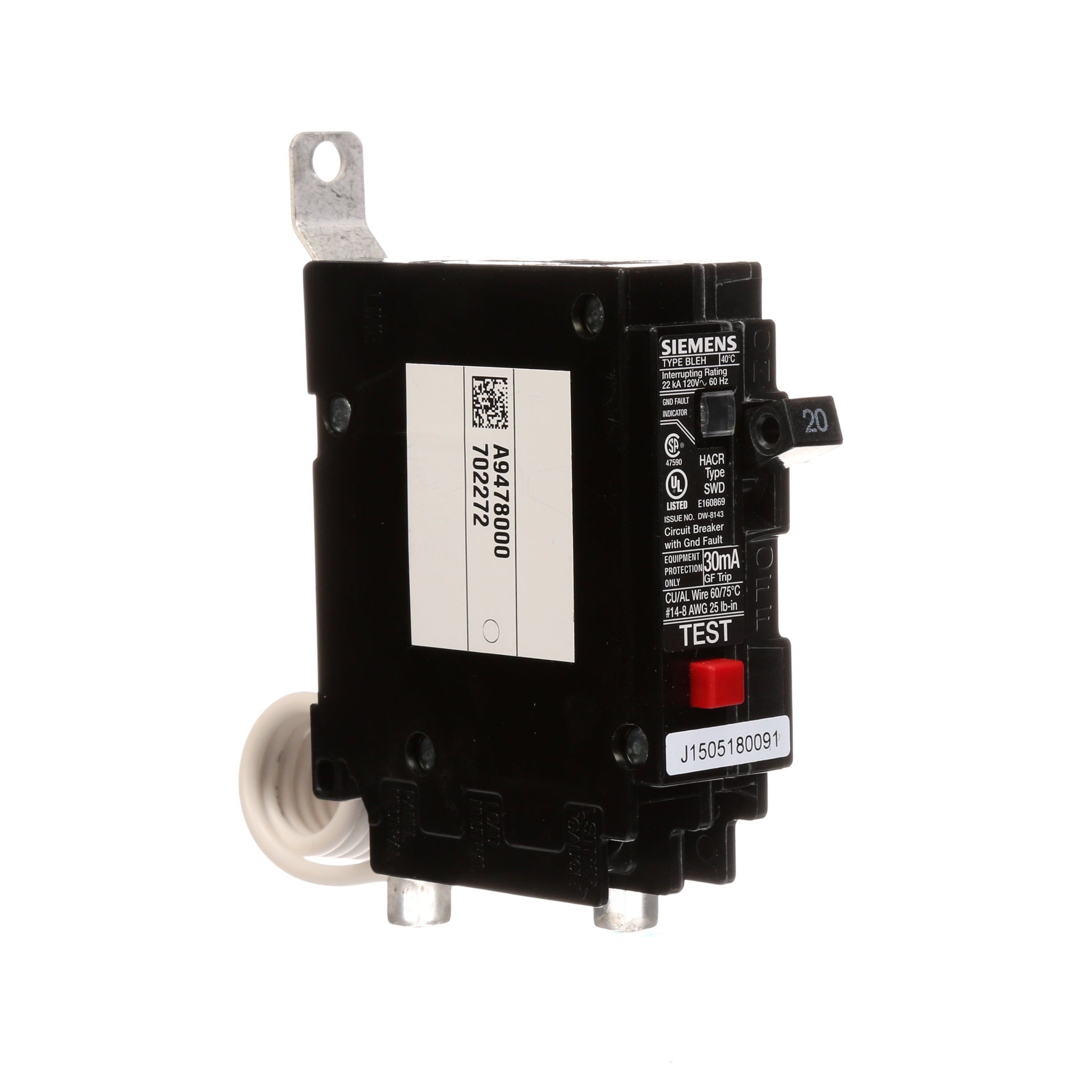

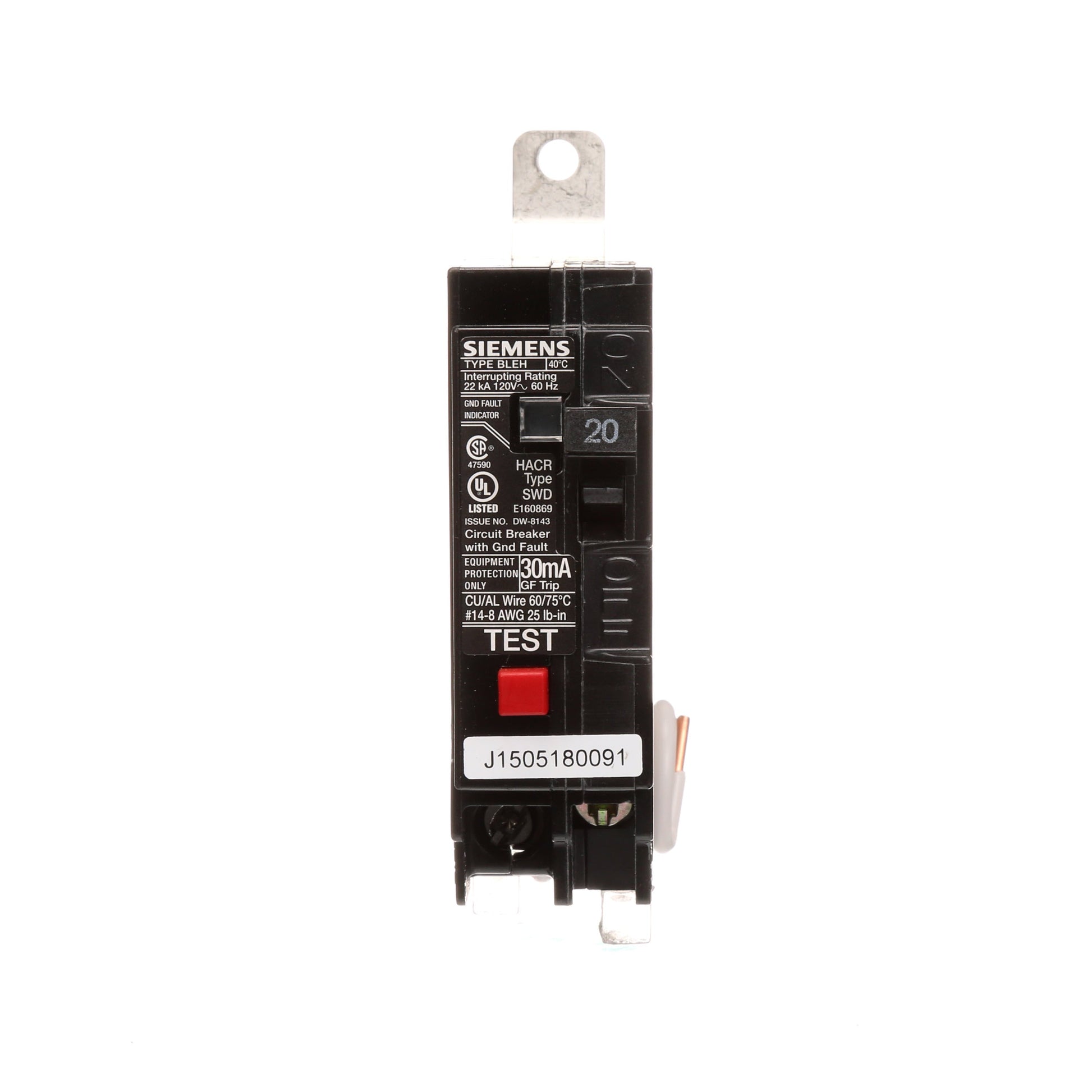

Siemens BE120H Circuit Breaker | 120V 20A 1P 22kA@120V Bolt-on BL Series

Product Description:
The Siemens BE120H is a Molded Case Circuit Breaker from the BL Series family. It is a 1-pole, 20 amp breaker rated for 120V with an AIC rating of 22kA@120V. This thermal magnetic circuit breaker uses a bolt-on connection for secure installation.

Key Features:
✔ Part Number: BE120H
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BLEH
✔ Voltage: 120
✔ Amperage: 20
✔ Poles: 1
✔ AIC rating: 22kA@120V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 60A/BLEH
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Ground Fault Equipment Protection
✔ Protection: Thermal Magnetic
✔ UPC: 783643266131
✔ GTIN: 00783643266131
✔ Country of Origin: Philippines
✔ Dimensions: 4 in x 5 in x 5 in
✔ Weight: 0.51
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
✔ Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
