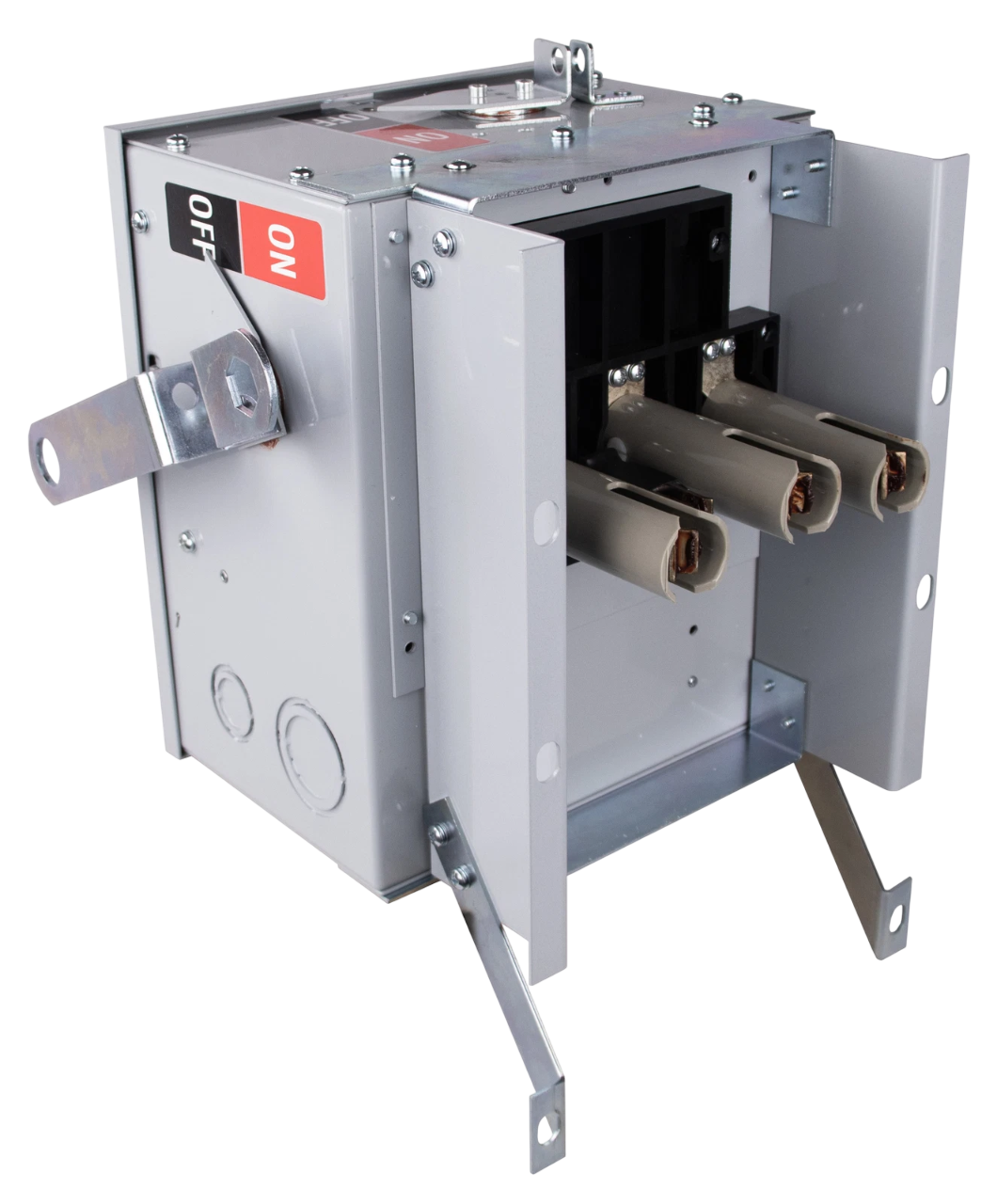

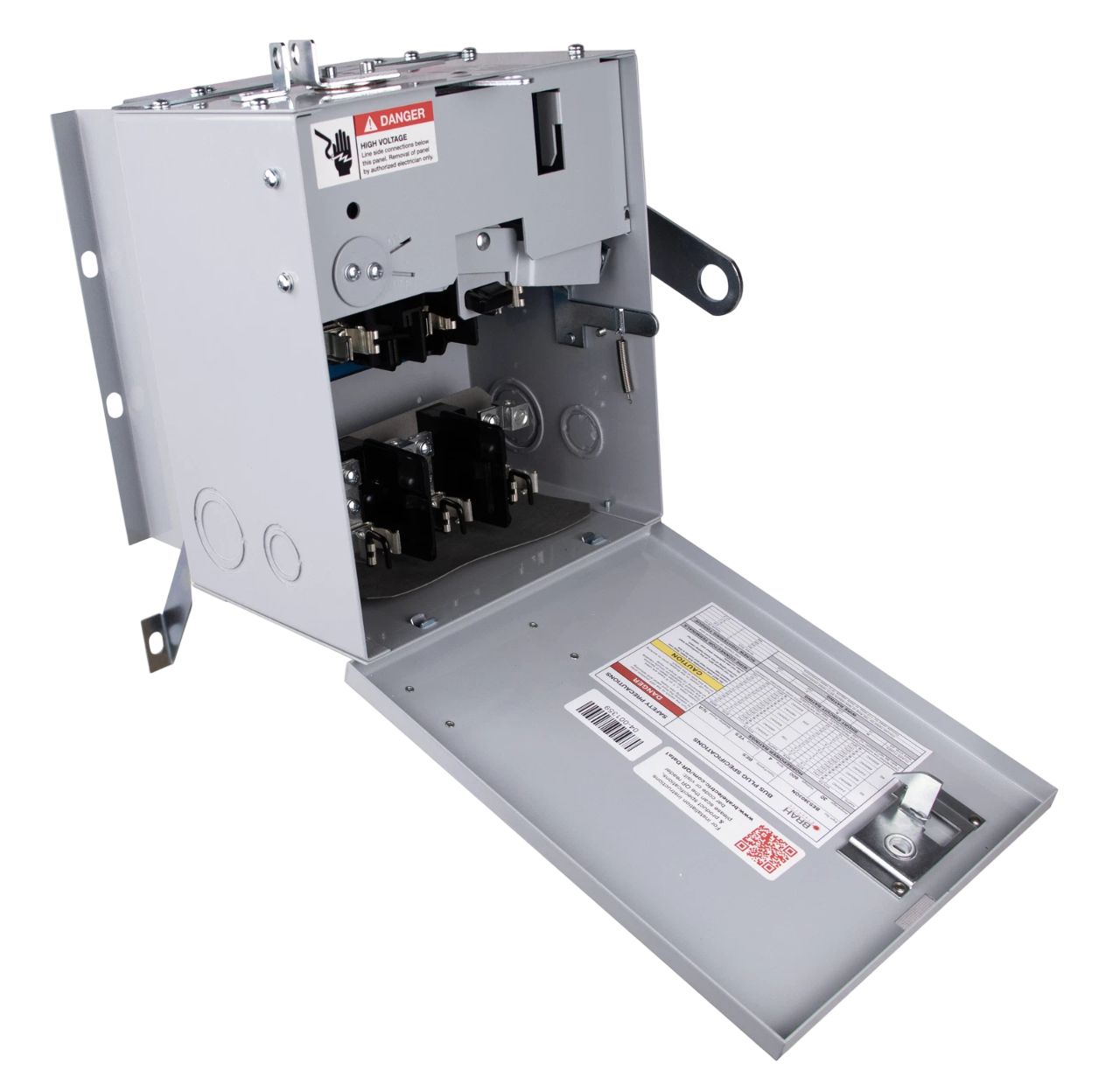

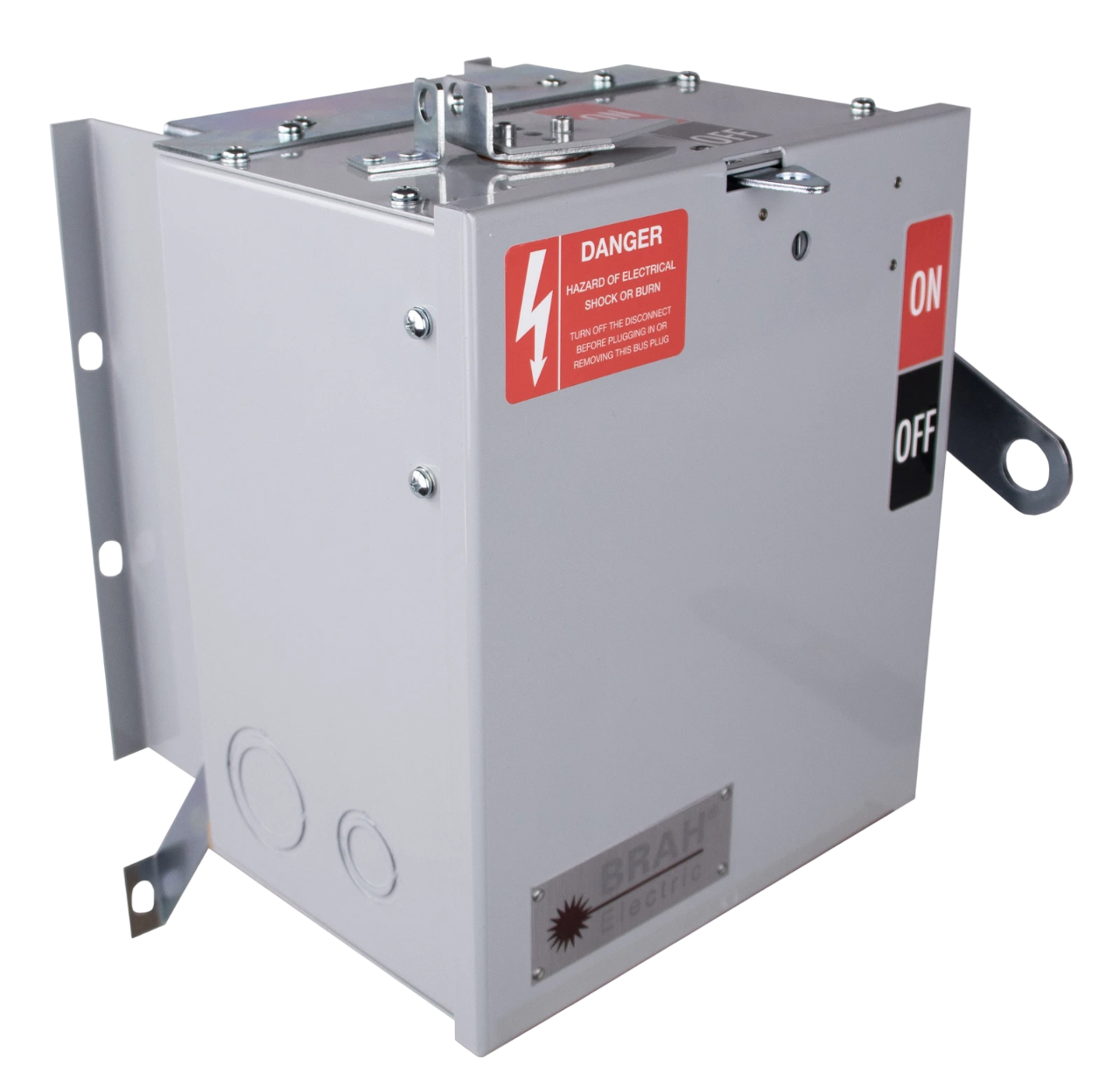

Images are for reference only
BRAH Electric
BRAH Electric BES3203N Bus Plug Fusible BD Series 3 Phase 4 Wire 240V 30A 65kA@240V
BRAH Electric BES3203N Bus Plug Fusible BD Series 3 Phase 4 Wire 240V 30A 65kA@240V
Price:
Sale
Sold out
Regular price
$1,314.92 USD
Regular price
$1,417.00 USD
Sale price
$1,314.92 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The BRAH Electric BES3203N is a 3 phase 4 wire bus plug designed for 240 Volt busway systems with a 30 Amp rating. It belongs to the BD Series and features a fusible design for enhanced safety. This BOS/BES type bus plug supports type R, H, and K fuses and offers an AIC rating of 65kA at 240V.
Key Features:
✔ Part Number: BES3203N
✔ Manufacturer: BRAH Electric
✔ Category: Bus Plug
✔ Subcategory: Fusible
✔ Family: BD Series
✔ Type: BOS/BES
✔ Voltage: 240
✔ Amperage: 30
✔ Phase: 3
✔ AIC rating: 65kA@240V
✔ Fuse Class: R, H, K
✔ Wire: 4
✔ UPC: 699252496275
✔ Country of Origin: China
✔ Dimensions: 9 61/100 in x 11 19/50 in
✔ Weight: 35
✔ Certification: UL Listed, UL Recognized
The BRAH Electric BES3203N is a 3 phase 4 wire bus plug designed for 240 Volt busway systems with a 30 Amp rating. It belongs to the BD Series and features a fusible design for enhanced safety. This BOS/BES type bus plug supports type R, H, and K fuses and offers an AIC rating of 65kA at 240V.
Key Features:
✔ Part Number: BES3203N
✔ Manufacturer: BRAH Electric
✔ Category: Bus Plug
✔ Subcategory: Fusible
✔ Family: BD Series
✔ Type: BOS/BES
✔ Voltage: 240
✔ Amperage: 30
✔ Phase: 3
✔ AIC rating: 65kA@240V
✔ Fuse Class: R, H, K
✔ Wire: 4
✔ UPC: 699252496275
✔ Country of Origin: China
✔ Dimensions: 9 61/100 in x 11 19/50 in
✔ Weight: 35
✔ Certification: UL Listed, UL Recognized
