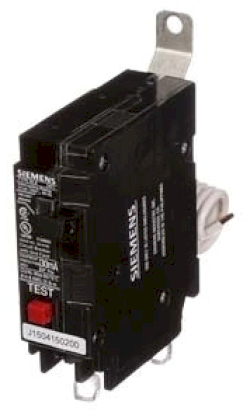

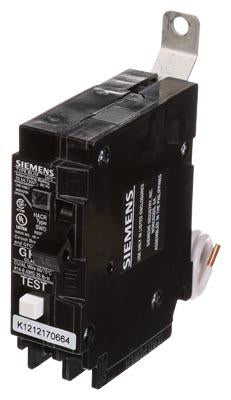

Siemens BF115H Circuit Breaker | 120V 15A 1P 22kA@120V Bolt-on BL Series

Product Description:
The Siemens BF115H is a Molded Case Circuit Breaker from the BL Series family, designed for reliable electrical protection. It features a 1-pole configuration with a 120V, 15A rating and an AIC rating of 22kA@120V. This breaker uses a bolt-on connection and provides thermal magnetic protection for enhanced safety.

Key Features:
✔ Part Number: BF115H
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BLHF
✔ Voltage: 120
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 22kA@120V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 60A/BLHF
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Ground Fault Circuit Interrupter (Class A - 5mA)
✔ Protection: Thermal Magnetic
✔ UPC: 783643069619
✔ GTIN: 00783643069596
✔ Country of Origin: Philippines
✔ Dimensions: 4 in x 1 in x 1 in
✔ Weight: 2
✔ Panel Type: Siemens Panelboards
✔ Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
✔ Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
