Square D BGA260201 Circuit Breaker | Powerpact BGA 600V 20A

Product Description:

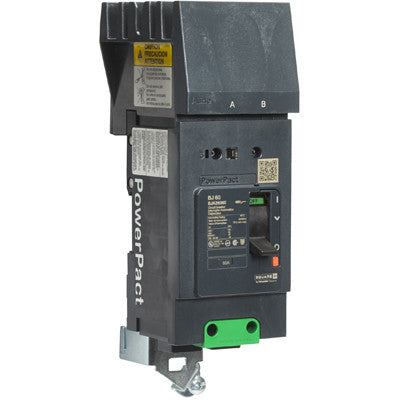

The Square D BGA260201 is a Molded Case Circuit Breaker from the Powerpact family. It features a 2-pole design with a 600V, 20A rating and a 35kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes Thermal Magnetic protection. It is suitable for industrial control panels and electrical distribution equipment.

Key Features:
✔ Part Number: BGA260201
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BGA
✔ Voltage: 600V
✔ Amperage: 20A
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 35kA@480V
✔ Connection: I-Line Style Plug-In
✔ Protection: Thermal Magnetic
✔ Terminal Connection: Al Mechanical Lug OFF End, I-Line ON End
✔ Frame Size: 125A/BG
✔ Wire Size: 14 AWG to 2 AWG
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Certification: CSA, EN/IEC, GB, NEMA, NMX, UL
✔ UPC: 606481153428
✔ GTIN: 03606480000000
✔ Country of Origin: Mexico
✔ Dimensions: 2.12 in x 5.39 in
✔ Weight: 1.42 lbs
