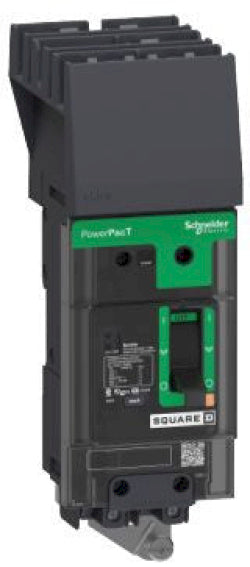

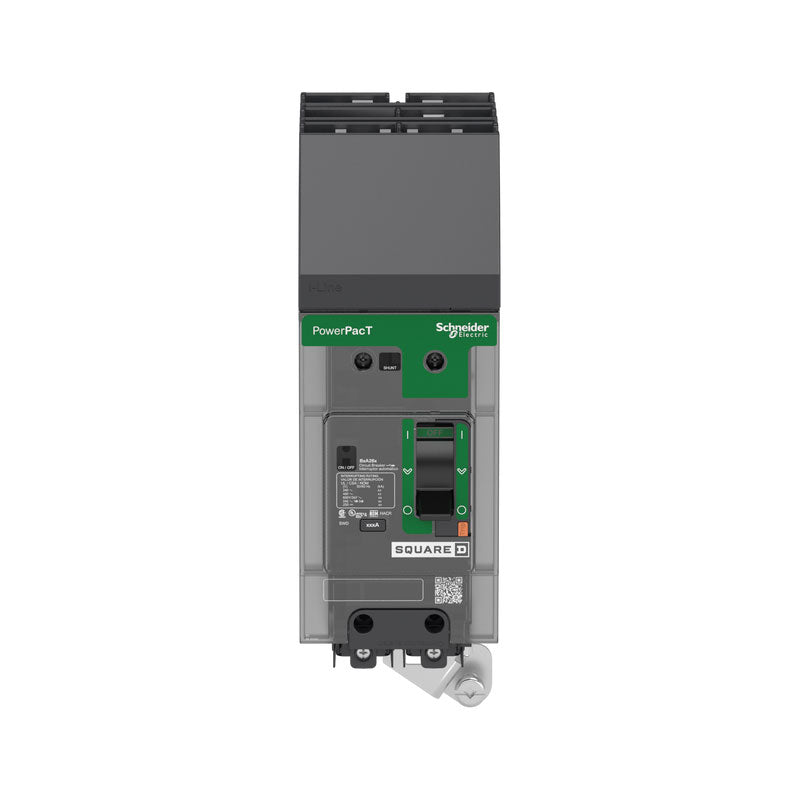

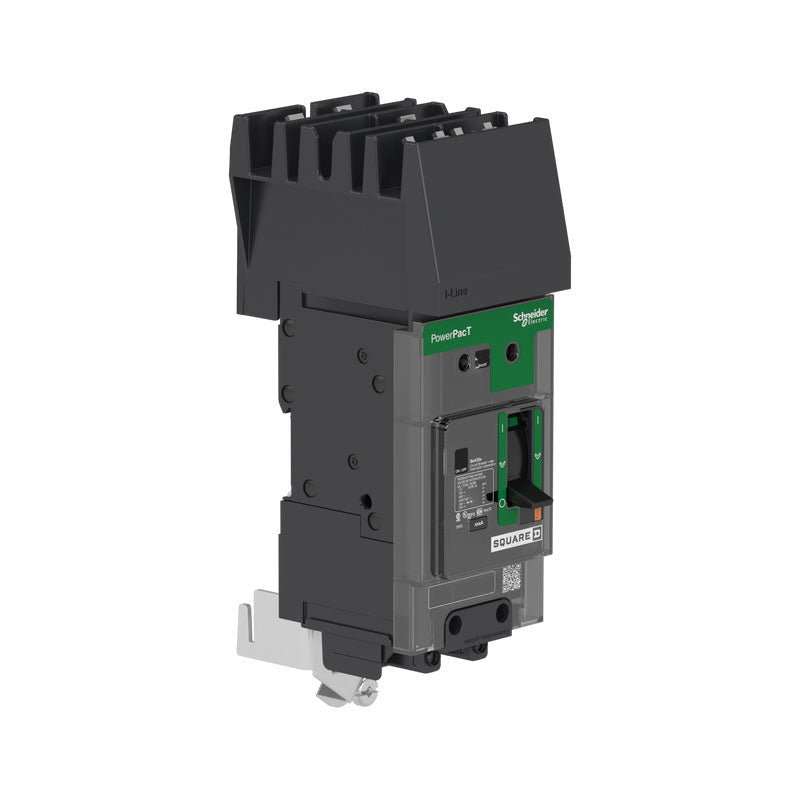

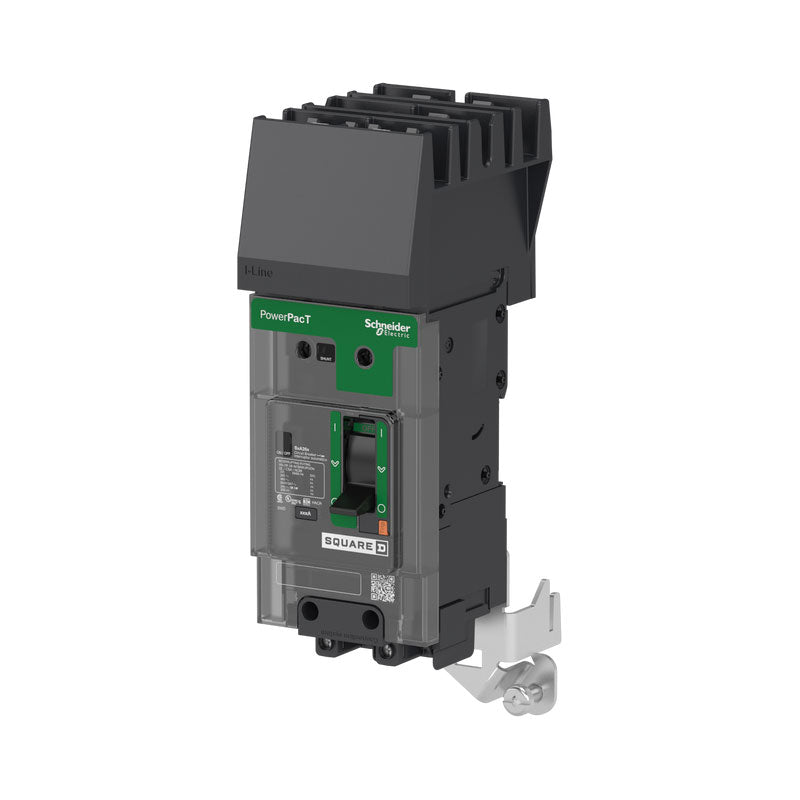

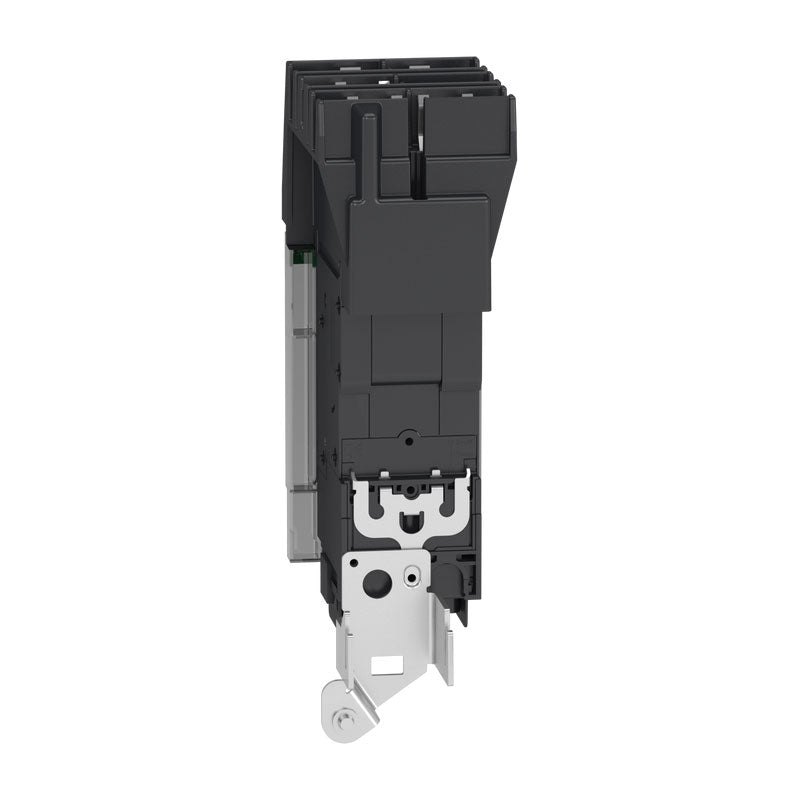

Square D BGA261252 Circuit Breaker | 600V 125A 2P 35kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Square D BGA261252 is a Molded Case Circuit Breaker from the Powerpact family. It features a 2-pole design with a 600V, 125A rating and a 35kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and offers Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: BGA261252
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BGA
✔ Voltage: 600
✔ Amperage: 125
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 35kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: G
✔ Wire Size: AWG 14...AWG 2/0 aluminum/copper
✔ Protection: Thermal Magnetic
✔ Phase Connection: AC
✔ UPC: 078590106778
✔ GTIN: 00785901067788
✔ Country of Origin: Mexico

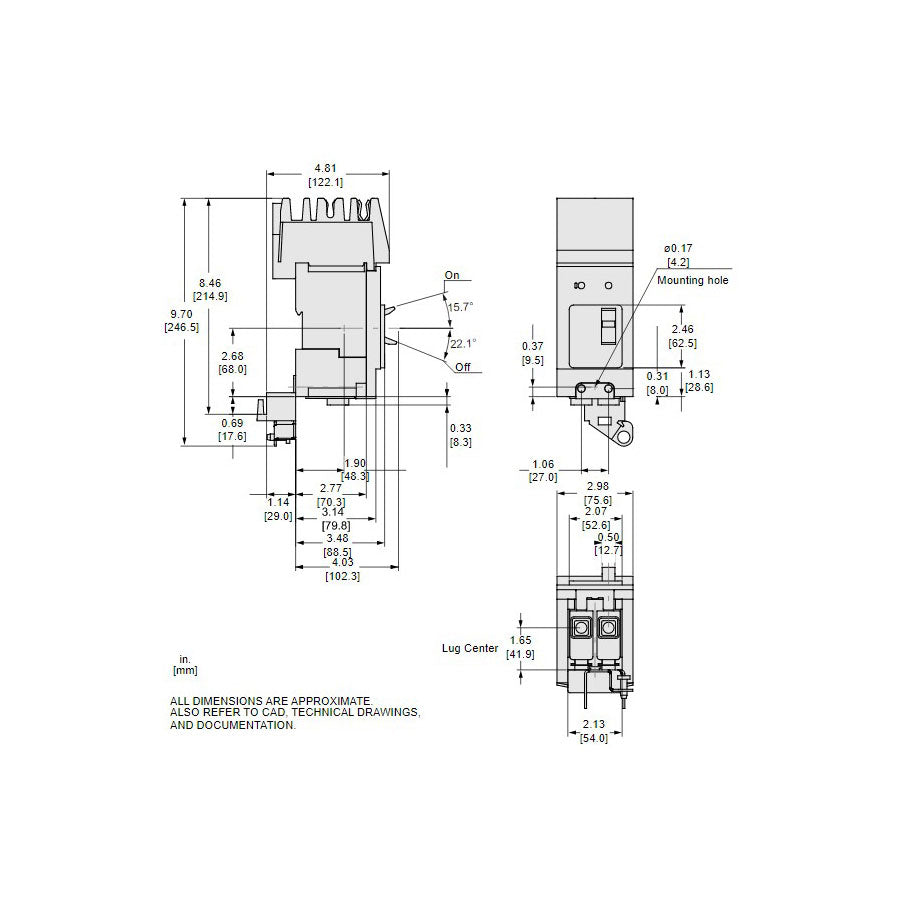

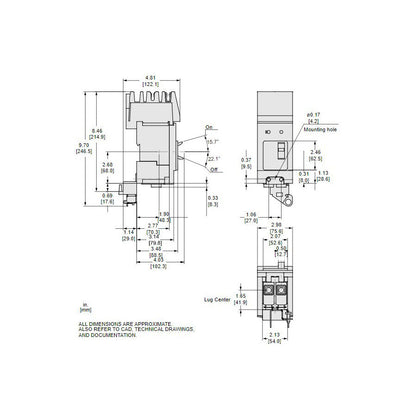

✔ Dimensions: 2.12 in x 5.39 in
✔ Weight: 1.32
✔ Standards: UL 489, CSA C22.2 No 5, IEC, CCC, EAC, NOM, CE, NEMA AB1, NMX J-266
✔ Certification: UL 489, CSA C22.2 No 5, IEC, CCC, EAC, NOM, CE, NEMA AB1, NMX J-266
