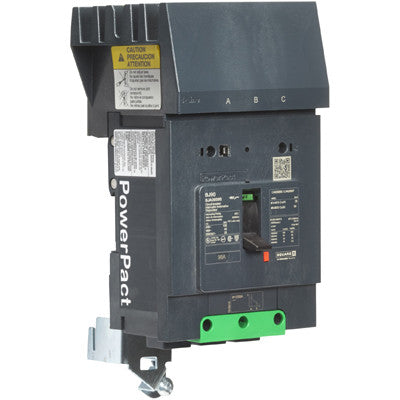

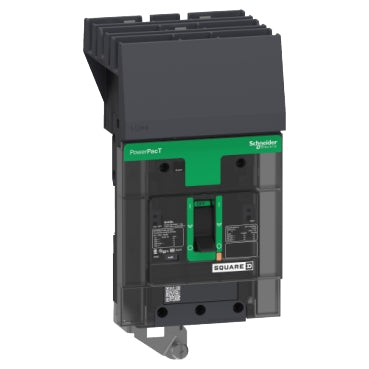

Schneider Electric BGA34035Y Circuit Breaker | Powerpact BGA 480V 35A

Product Description:
The Schneider Electric BGA34035Y is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 480V, 35A rating and an 18kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: BGA34035Y
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BGA
✔ Voltage: 480V
✔ Amperage: 35A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Protection: Thermal Magnetic
✔ Frame Size: 125A/BG
✔ Wire Size: Min. 14 AWG, Max. 2 AWG
✔ Terminal Connection: Al Mechanical Lug OFF End, I-Line ON End
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Certification: CSA, EN/IEC, GB, NEMA, NMX, UL
✔ UPC: 785901069287
✔ GTIN: 00785901069287
✔ Country of Origin: United States
