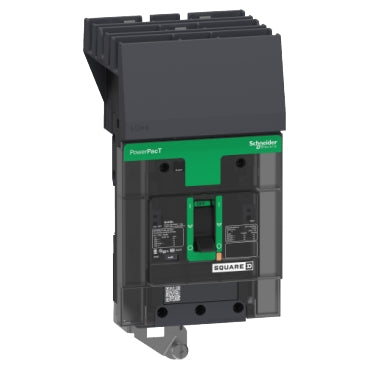

Square D BGA34080Y Circuit Breaker | Powerpact BGA 480V 80A

Product Description:
The Square D BGA34080Y is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 480V, 80A rating and an 18kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes Thermal Magnetic protection. It is designed for industrial control panels and electrical distribution equipment.

Key Features:
✔ Part Number: BGA34080Y
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BGA
✔ Voltage: 480V
✔ Amperage: 80A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Protection: Thermal Magnetic
✔ Frame Size: 125A/BG
✔ Wire Size: Min. 14 AWG, Max. 2 AWG
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Certification: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ UPC: 785901069461
✔ GTIN: 00785901069461
✔ Country of Origin: Mexico
✔ Dimensions: 3.19 in x 5.39 in
✔ Weight: 1.72 lbs
