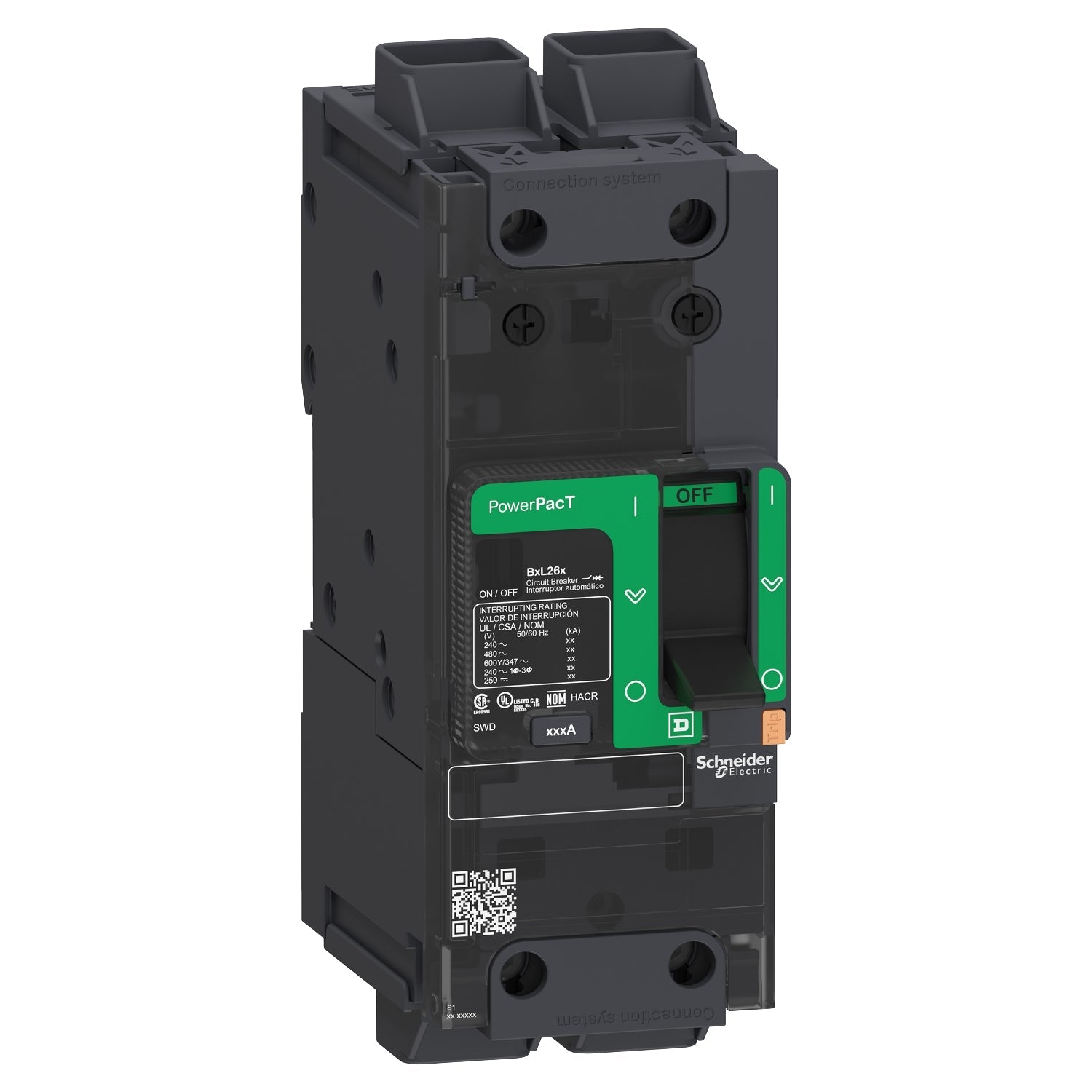

Schneider Electric BGL26030 Circuit Breaker | 600V 30A 2P 35kA@480V Feed-Thru Powerpact BGL

Product Description:
The Schneider Electric BGL26030 is a Molded Case Circuit Breaker from the Powerpact family. It features a 2-pole design with a 600V, 30A rating and a 35kA@480V AIC rating. This breaker uses Feed-Thru connections and offers Thermal Magnetic protection for reliable circuit safety.

Key Features:
✔ Part Number: BGL26030
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BGL
✔ Voltage: 600
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Protection: Thermal Magnetic
✔ UPC: 060648115403
✔ GTIN: 03606481154033
✔ Dimensions: Height 5.39 in (137 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Wire Size: AWG 6...AWG 2/0 fine stranded aluminum/copper, AWG 14...AWG 3/0 rigid or stranded aluminum/copper
