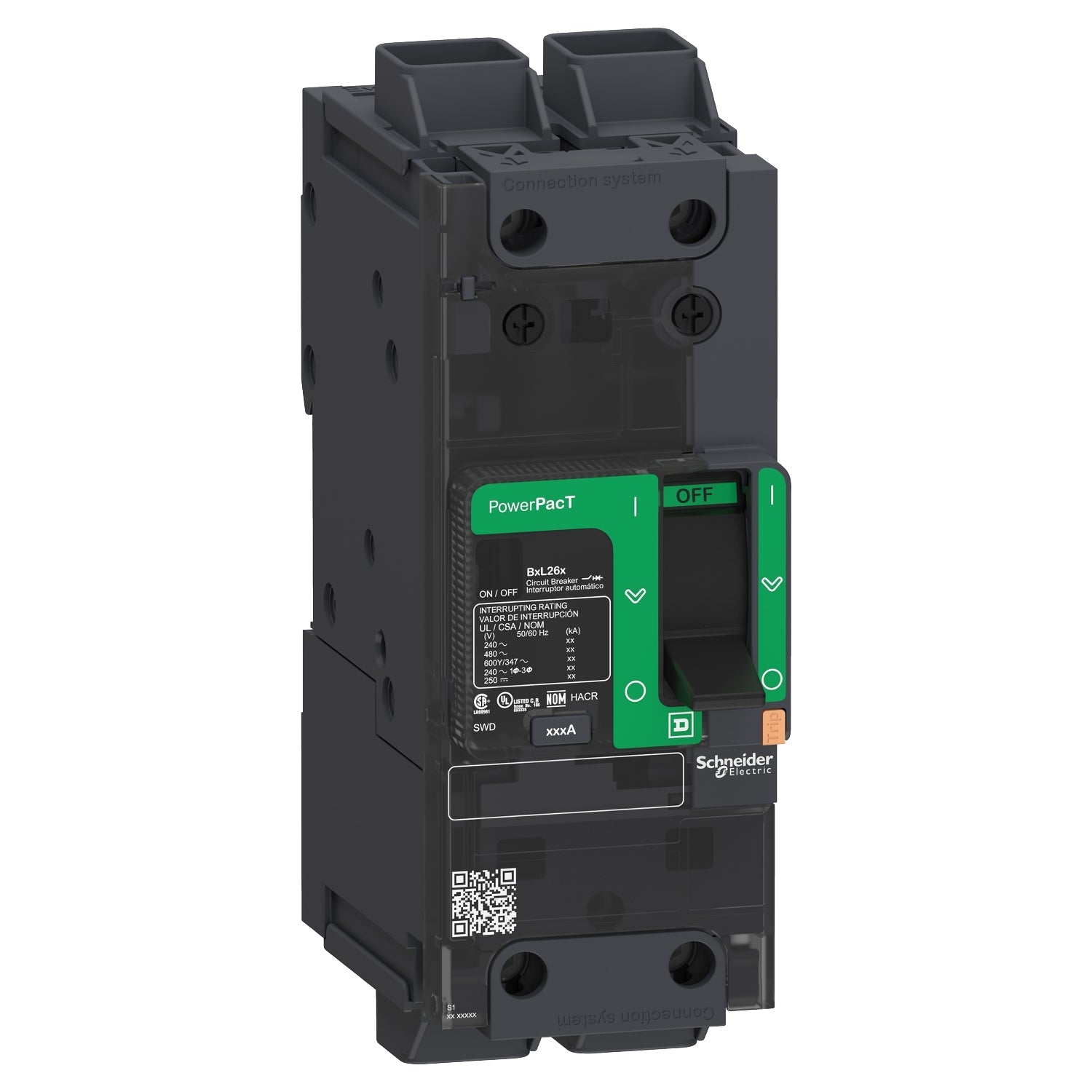

Schneider Electric BGL26045 Circuit Breaker | 600V 45A 2P 35kA@480V Feed-Thru Powerpact

Product Description:
The Schneider Electric BGL26045 is a Molded Case Circuit Breaker from the Powerpact family. This 2-pole breaker is rated for 600V and 45 amps, with a 35kA@480V AIC rating. It features Feed-Thru connections and Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: BGL26045
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BGL
✔ Voltage: 600
✔ Amperage: 45
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Protection: Thermal Magnetic
✔ UPC: 785901073659
✔ GTIN: 00785901073659
✔ Dimensions: Height 5.39 in (137 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 2 lb
✔ Wire Size: AWG 6...AWG 2/0 fine stranded aluminum/copper AWG 14...AWG 3/0 rigid or stranded aluminum/copper
