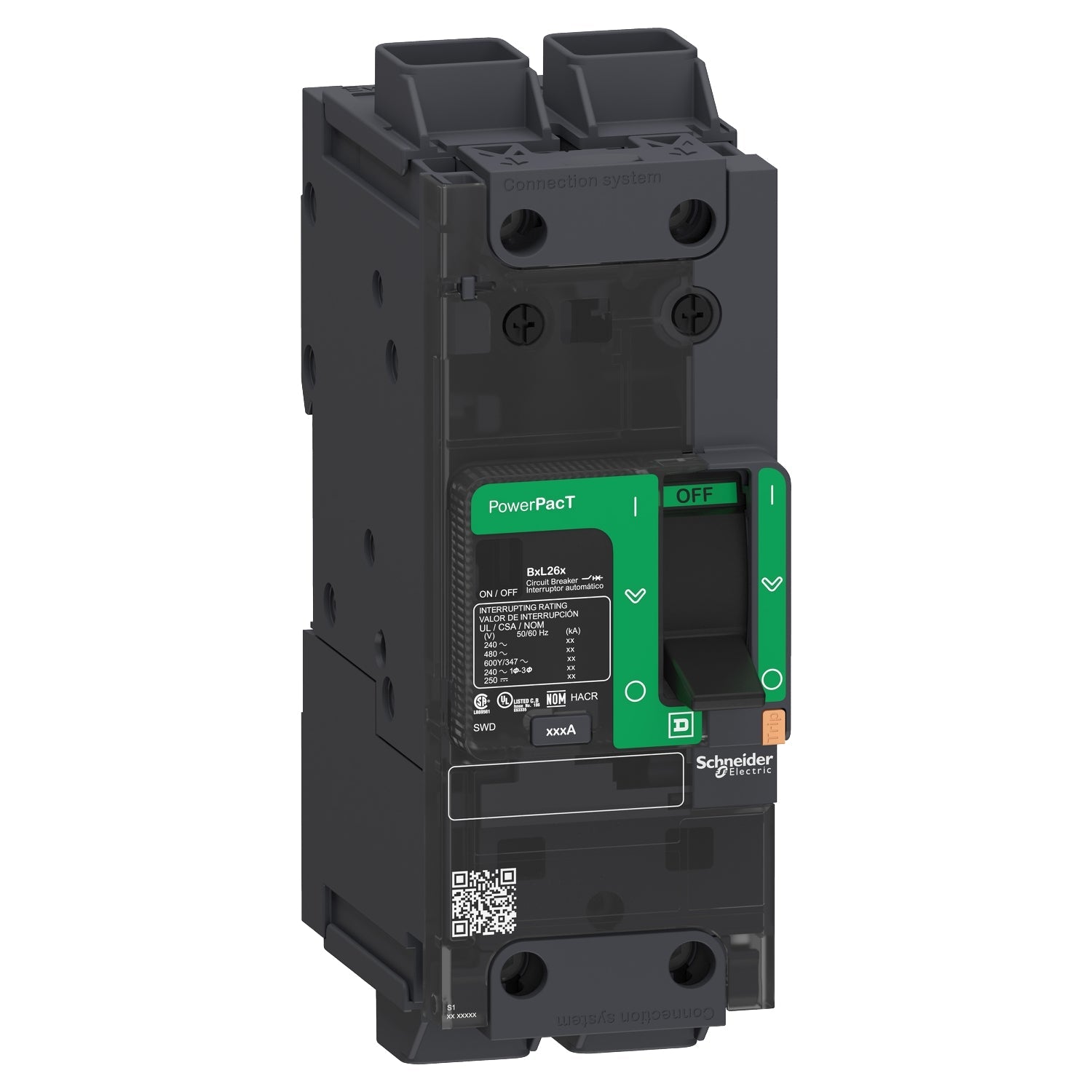

Schneider Electric BGL26080 Circuit Breaker | 600V 80A 2P 35kA@480V Feed-Thru Powerpact

Product Description:
The Schneider Electric BGL26080 is a Molded Case Circuit Breaker from the Powerpact family. It features 2 poles, 600V voltage, and 80A amperage with a 35kA@480V AIC rating. This breaker uses Feed-Thru connections and offers Thermal Magnetic protection. It is designed for industrial and electrical distribution applications.

Key Features:
✔ Part Number: BGL26080
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BGL
✔ Voltage: 600
✔ Amperage: 80
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Everlink Lug Both Ends
✔ Frame Size: 125A/BG
✔ Wire Size: Min. 14 AWG, Max. 2 AWG (rigid/stranded)
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901073710
✔ GTIN: 00785901073710
✔ Country of Origin: United States
✔ Dimensions: 5.39 x 3.09 x 4.44 in
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, UL 489
