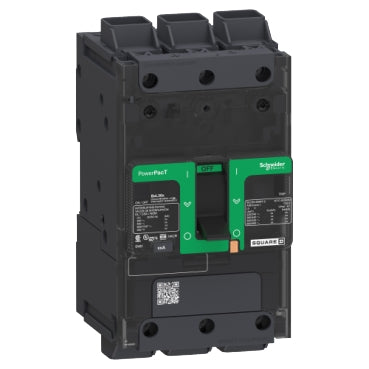

Schneider Electric BGL36040 Circuit Breaker | Powerpact BGL 600V 40A

Product Description:
The Schneider Electric BGL36040 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V rating and 40A capacity, offering a 35kA@480V AIC rating. This breaker includes Thermal Magnetic protection and uses a Feed-Thru connection for easy installation. It supports a wide range of wire sizes, from 14 AWG to 3/0 AWG, for flexible applications.

Key Features:
✔ Part Number: BGL36040
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BGL
✔ Voltage: 600V
✔ Amperage: 40A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Protection: Thermal Magnetic
✔ Terminal Connection: Everlink Lug Both Ends
✔ Frame Size: 125A/BG
✔ Wire Size: 14 AWG to 3/0 AWG
✔ Certification: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ UPC: 606481154098
✔ GTIN: 03606480000000
✔ Country of Origin: Mexico
