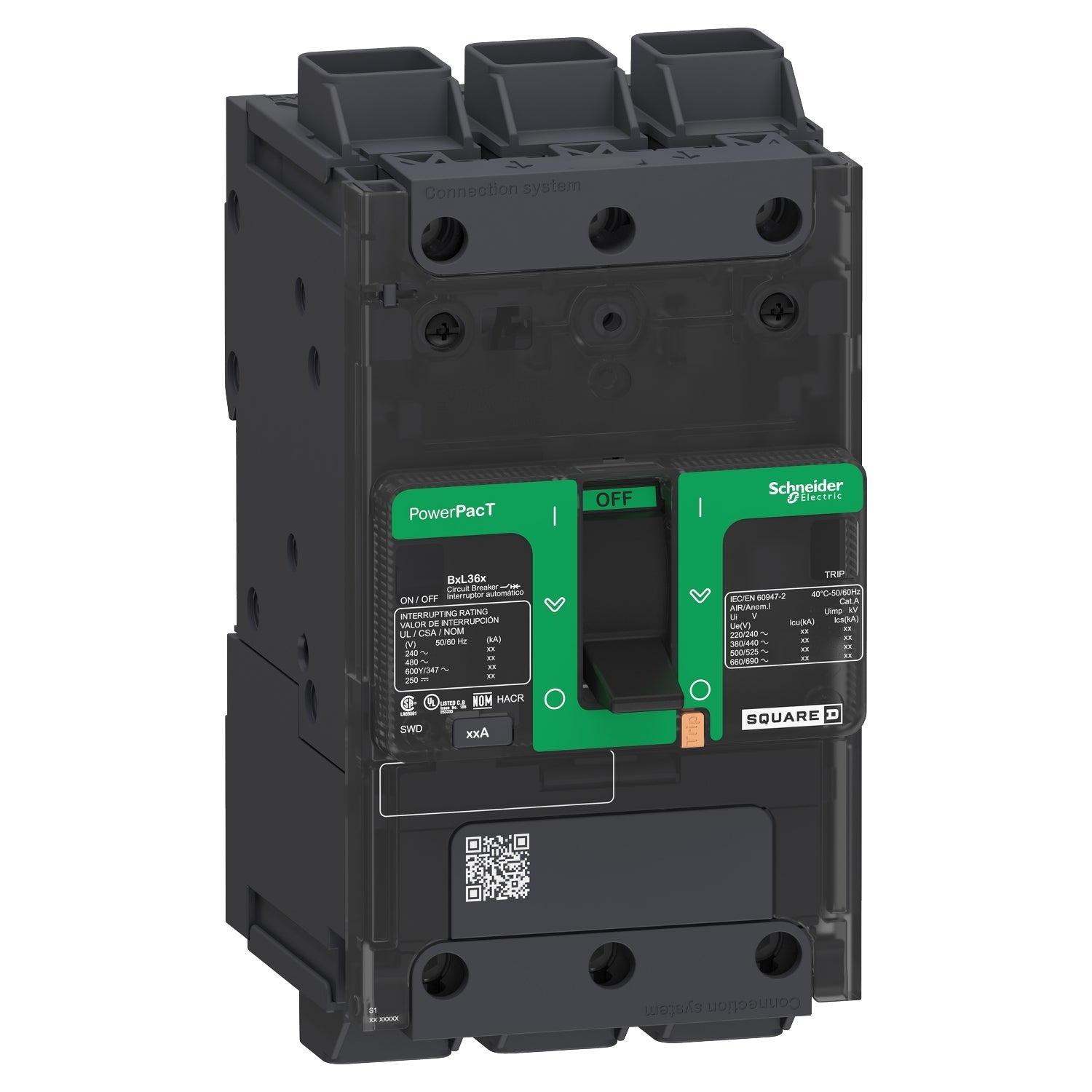

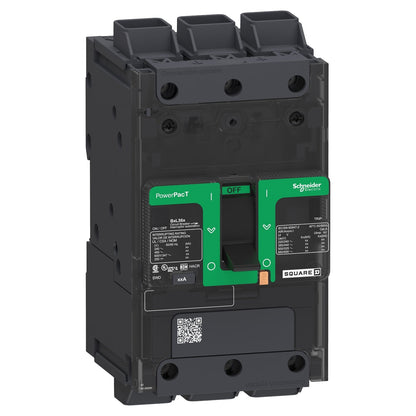

Schneider Electric BGL36045 Circuit Breaker | 600V 45A 3P 35kA@480V Feed-Thru Powerpact

Product Description:
The Schneider Electric BGL36045 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 45 amp breaker rated for 600 Volts with an AIC rating of 35kA@480V. This model features a Feed-Thru connection and provides reliable Thermal Magnetic protection for electrical systems.

Key Features:
✔ Part Number: BGL36045
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BGL
✔ Voltage: 600
✔ Amperage: 45
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Everlink Lug Both Ends
✔ Frame Size: 125A/BG
✔ MCM Size: Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901076193
✔ GTIN: 00785901076193
✔ Country of Origin: United States
✔ Dimensions: Height 5.39 in (137 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 1.36
✔ Panel Type: Electrical Distribution Equipment, Industrial Control Panels
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Wire Size: AWG 6...AWG 2/0 fine stranded aluminum/copper, AWG 14...AWG 3/0 rigid or stranded aluminum/copper
