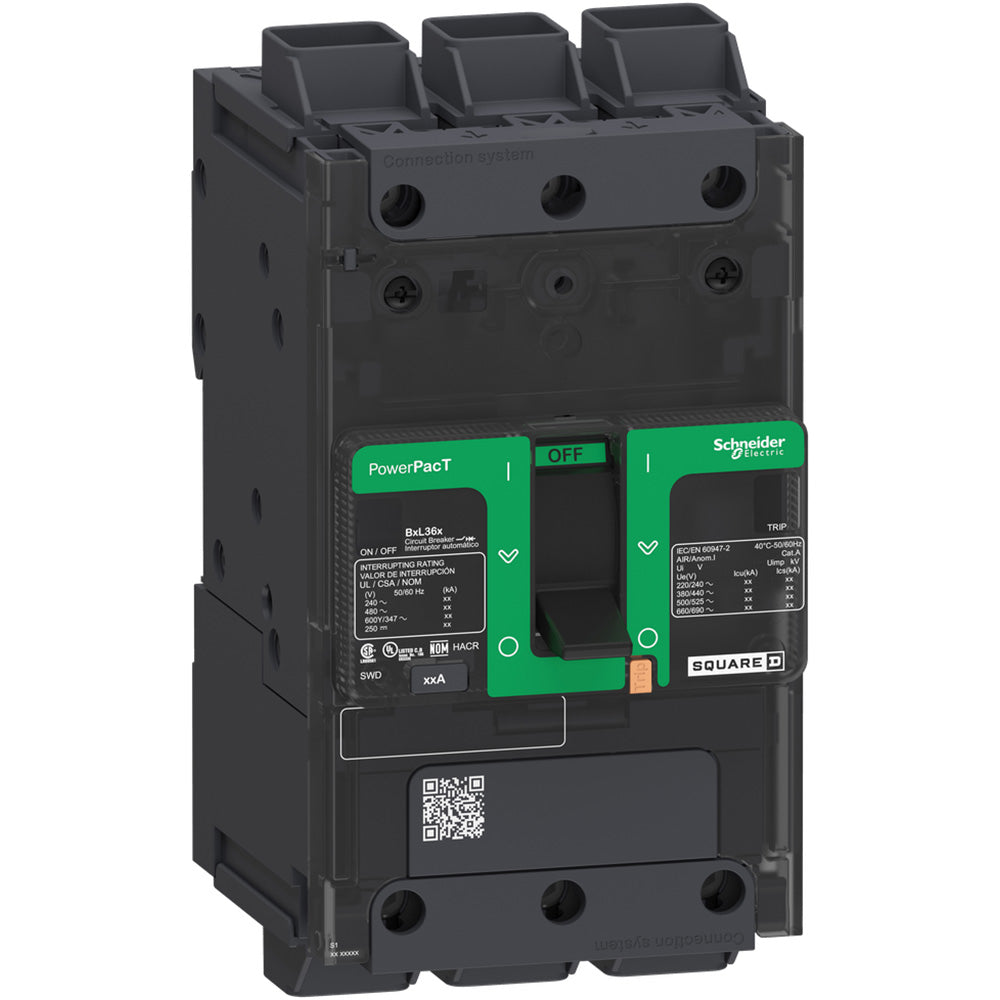

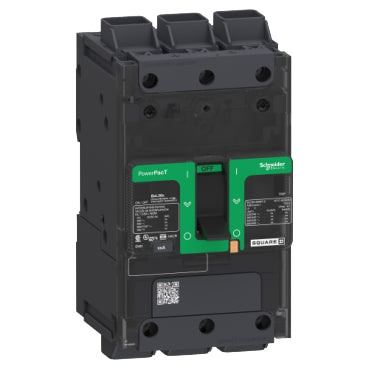

Schneider Electric BGL36050 Circuit Breaker | Powerpact BGL 600V 50A

Product Description:
The Schneider Electric BGL36050 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 50A rating and a 35kA@480V AIC rating. This breaker includes Thermal Magnetic protection and uses a Feed-Thru connection for easy installation.

Key Features:
✔ Part Number: BGL36050
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BGL
✔ Voltage: 600V
✔ Amperage: 50A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Protection: Thermal Magnetic
✔ Terminal Connection: Everlink Lug Both Ends
✔ Frame Size: 125A/BG
✔ Wire Size: Min. 14 AWG, Max. 2 AWG (rigid/stranded)
✔ Certification: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ UPC: 606481154104
✔ GTIN: 03606480000000
✔ Country of Origin: Mexico
✔ Dimensions: 3.19 in x 5.39 in
✔ Weight: 1.43 lbs
