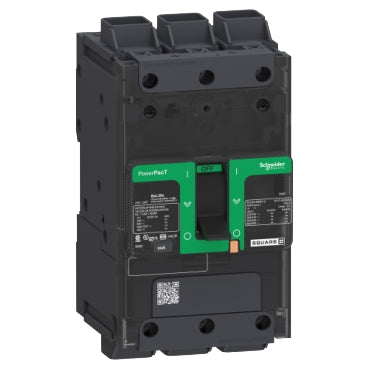

Schneider Electric BGL36080 Molded Case Circuit Breaker | 600V 80A 3P 35kA@480V Feed-Thru Powerpact BGL

Product Description:
The Schneider Electric BGL36080 is a Powerpact BGL series Molded Case Circuit Breaker designed for industrial electrical systems. It is a 3-pole, 80 amp breaker rated for 600 Volts with a 35kA interrupting capacity at 480V. This model features thermal magnetic protection and a feed-thru connection for reliable circuit management.

Key Features:
✔ Part Number: BGL36080
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BGL
✔ Voltage: 600
✔ Amperage: 80
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Protection: Thermal Magnetic
✔ Frame Size: 125A/BG
✔ Breaker Type: Standard
✔ Phase Connection: ABC
✔ Terminal Connection: Everlink Lug Both Ends
✔ UPC: 785901469025
✔ GTIN: 03606481154125
✔ Country of Origin: Mexico
✔ Dimensions: 3.19 in x 5.39 in
✔ Weight: 1.42
✔ Panel Type: Electrical Distribution Equipment, Industrial Control Panels
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Certification: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
