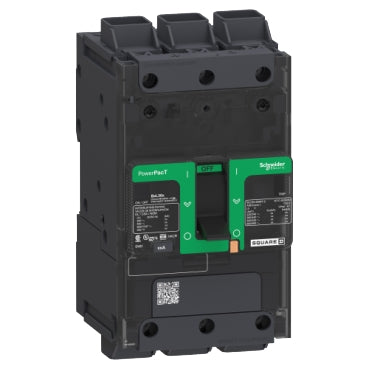

Schneider Electric BGL36125 Circuit Breaker | Powerpact BGL 600V 125A

Product Description:
The Schneider Electric BGL36125 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 125A rating and a 35kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes Thermal Magnetic protection for reliable performance. It is suitable for industrial and electrical distribution applications.

Key Features:
✔ Part Number: BGL36125
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BGL
✔ Voltage: 600V
✔ Amperage: 125A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Protection: Thermal Magnetic
✔ Terminal Connection: Everlink Lug Both Ends
✔ Frame Size: 125A/BG
✔ Wire Size: Min. 14 AWG, Max. 2 AWG (rigid/stranded)
✔ Certification: CSA, EN/IEC, GB, NEMA, NMX, UL
✔ UPC: 785901076438
✔ GTIN: 00785901000000
✔ Country of Origin: Mexico
