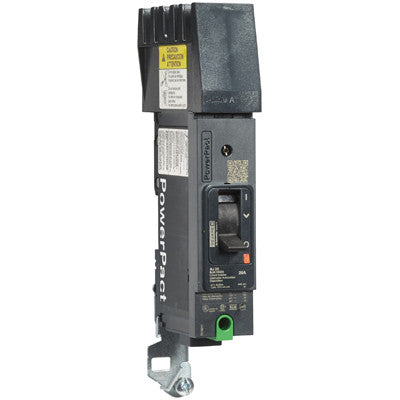

Square D BJA160201 Molded Case Circuit Breaker | 600V 20A 1P 100kA@240V I-Line Plug-In Powerpact

Product Description:
The Square D BJA160201 is a Molded Case Circuit Breaker from the Powerpact family. It is a 1-pole, 20 amp breaker rated for 600 Volts with an interrupting capacity of 100kA at 240V. This circuit breaker features an I-Line Style Plug-In connection for easy installation.

Key Features:
✔ Part Number: BJA160201
✔ Manufacturer: Schneider Electric, Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BJA
✔ Voltage: 600
✔ Amperage: 20
✔ Poles: 1
✔ AIC rating: 100kA@240V
✔ Connection: I-Line Style Plug-In
✔ Terminal Connection: Al Mechanical Lug OFF End, I-Line ON End
✔ Frame Size: 125A/BJ
✔ Wire Size: AWG 14...AWG 2/0 aluminum/copper
✔ UPC: 785901037408
✔ GTIN: 03606481154163
✔ Country of Origin: Mexico
✔ Dimensions: 1.06 in x 5.39 in
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Certification: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
