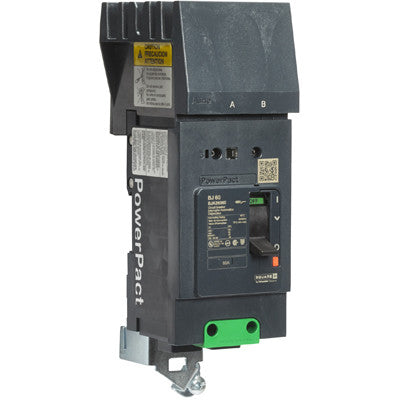

Square D BJA260201 Circuit Breaker | 600V 20A 2P 65kA@480V I-Line Style Plug-In Powerpact
Square D BJA260201 Circuit Breaker | 600V 20A 2P 65kA@480V I-Line Style Plug-In Powerpact
Price:
Sale
Sold out
Regular price
$1,139.72 USD
Regular price
$0.00 USD
Sale price
$1,139.72 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 5 left
Couldn't load pickup availability
Product Description:
The Square D BJA260201 is a Molded Case Circuit Breaker from the Powerpact family. It features a 2-pole design with a 600V, 20A rating and a 65kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and offers Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: BJA260201
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BJA
✔ Voltage: 600
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Terminal Connection: Al Mechanical Lug OFF End, I-Line ON End
✔ Frame Size: 125A/BJ
✔ Wire Size: 14 AWG to 2 AWG
✔ Protection: Thermal Magnetic
✔ Phase Connection: AB
✔ UPC: 785901013464
✔ GTIN: 03606481154200
✔ Country of Origin: Mexico
✔ Dimensions: 2.12 in x 5.39 in
✔ Weight: 1.42
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
The Square D BJA260201 is a Molded Case Circuit Breaker from the Powerpact family. It features a 2-pole design with a 600V, 20A rating and a 65kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and offers Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: BJA260201
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BJA
✔ Voltage: 600
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Terminal Connection: Al Mechanical Lug OFF End, I-Line ON End
✔ Frame Size: 125A/BJ
✔ Wire Size: 14 AWG to 2 AWG
✔ Protection: Thermal Magnetic
✔ Phase Connection: AB
✔ UPC: 785901013464
✔ GTIN: 03606481154200
✔ Country of Origin: Mexico
✔ Dimensions: 2.12 in x 5.39 in
✔ Weight: 1.42
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
