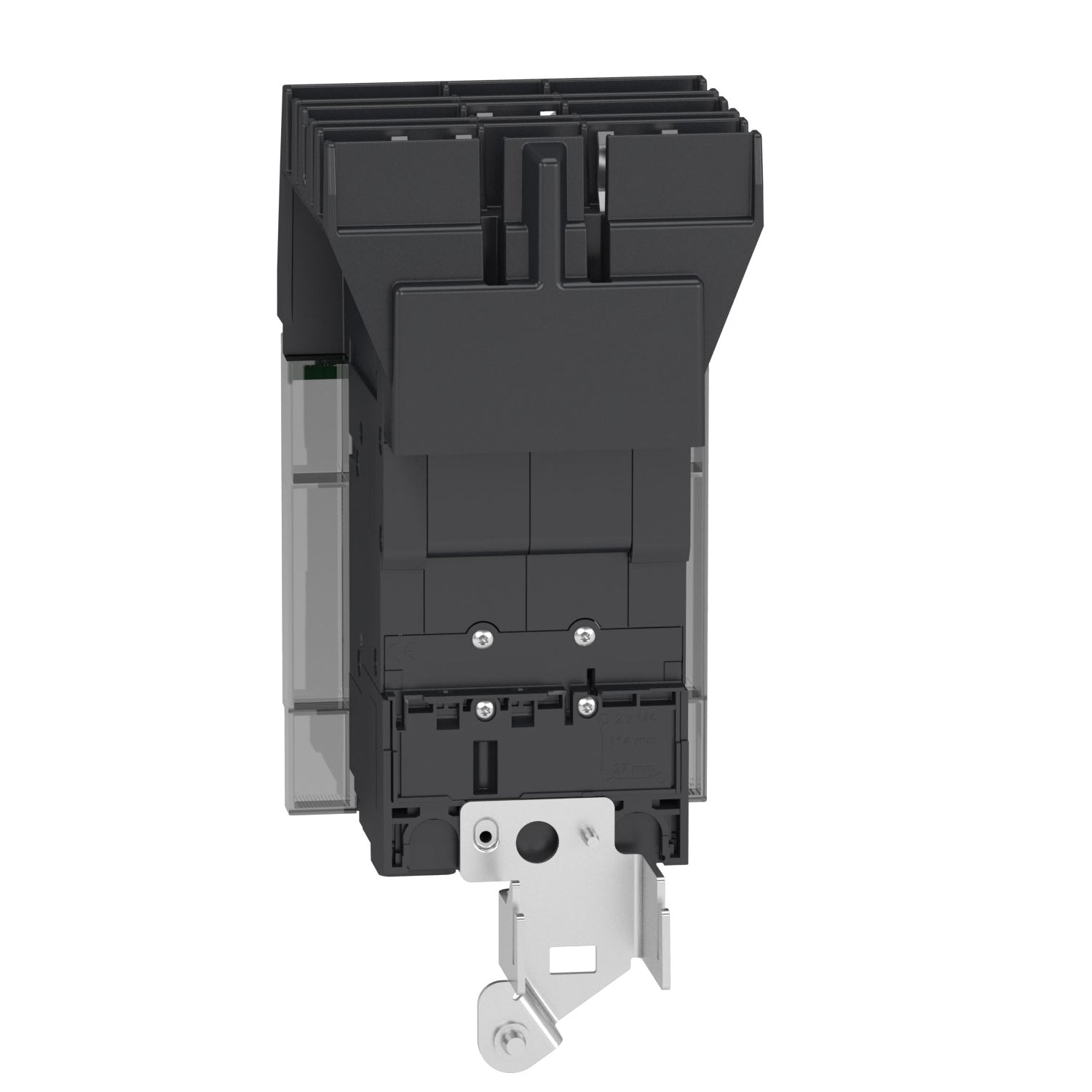

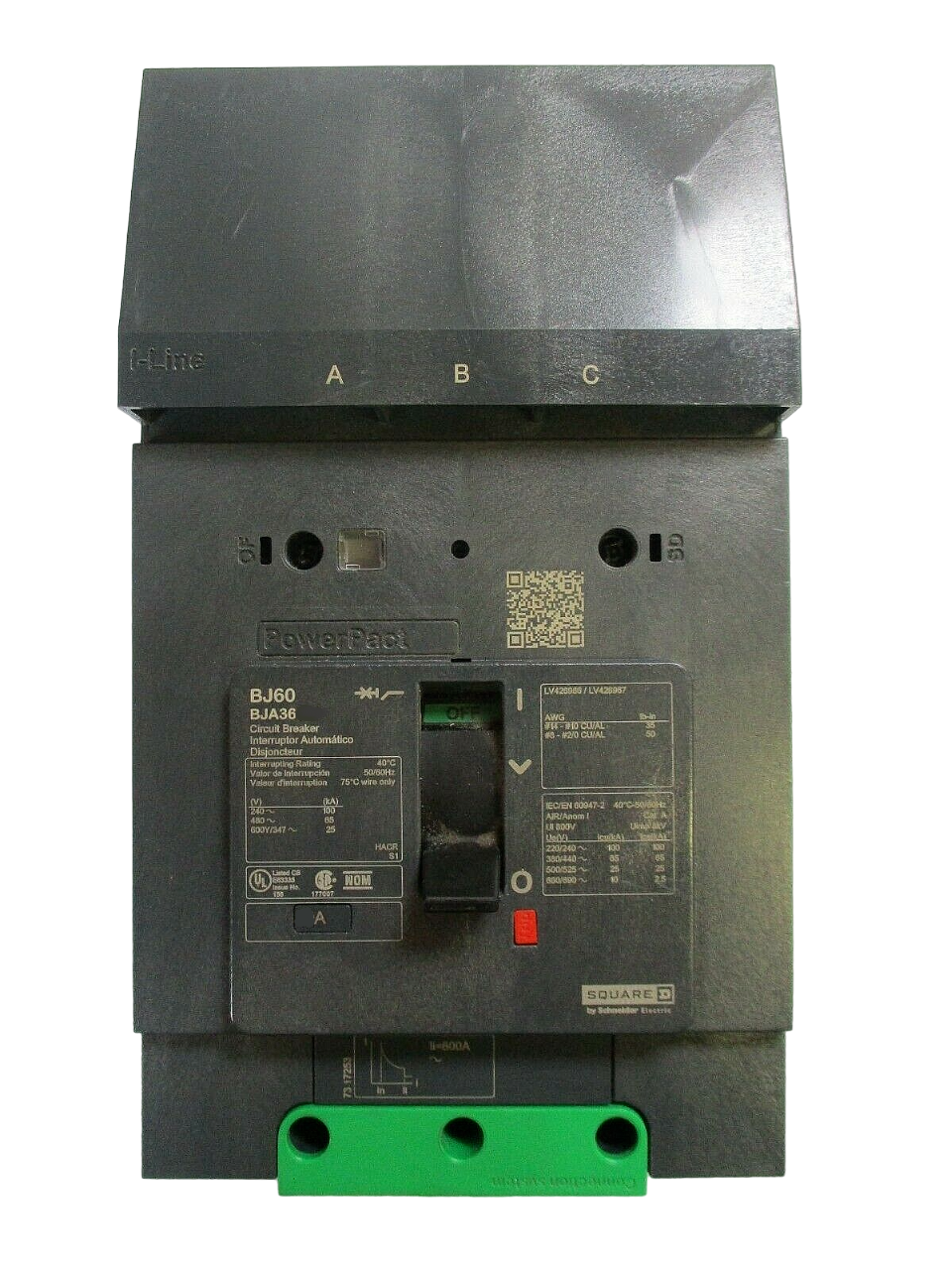

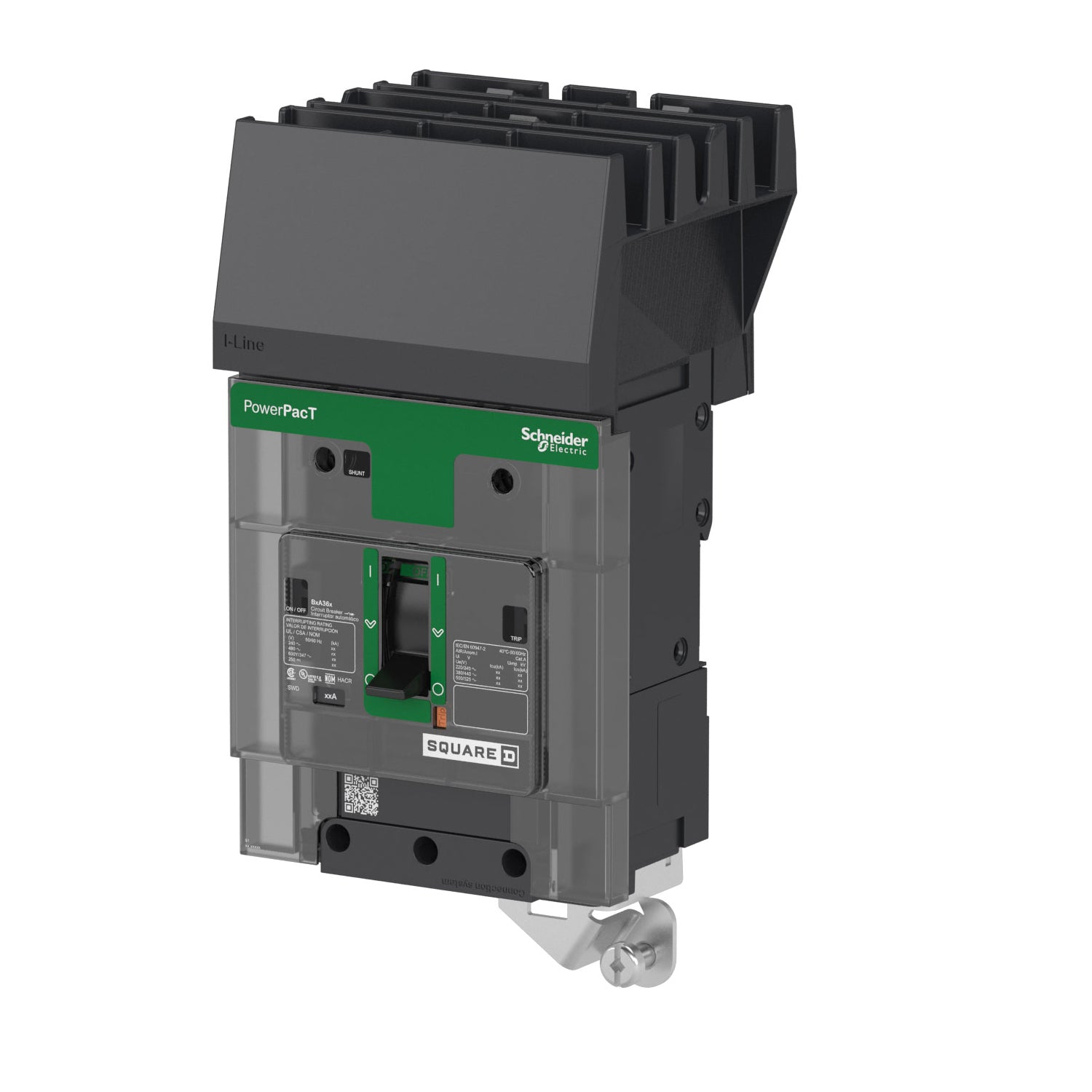

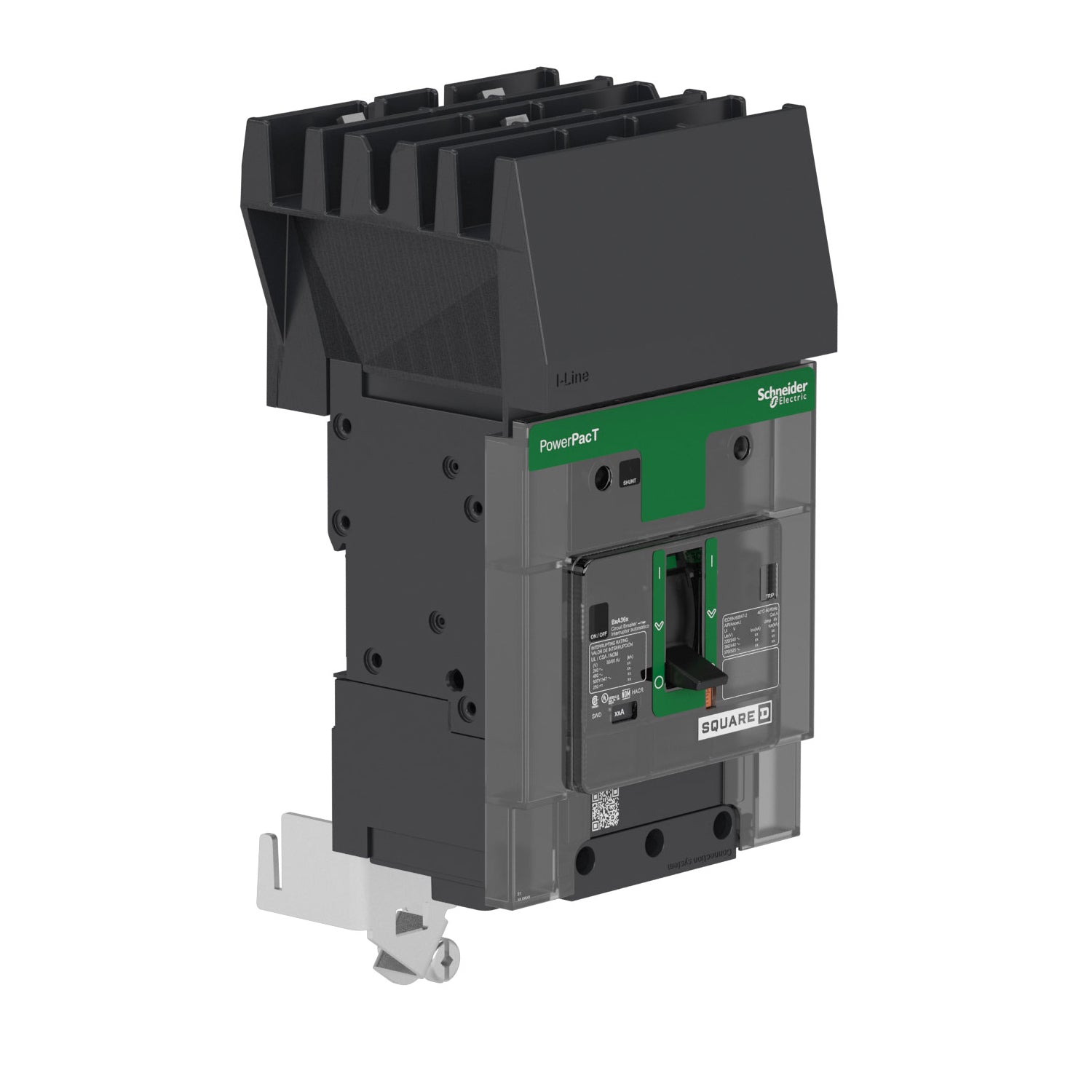

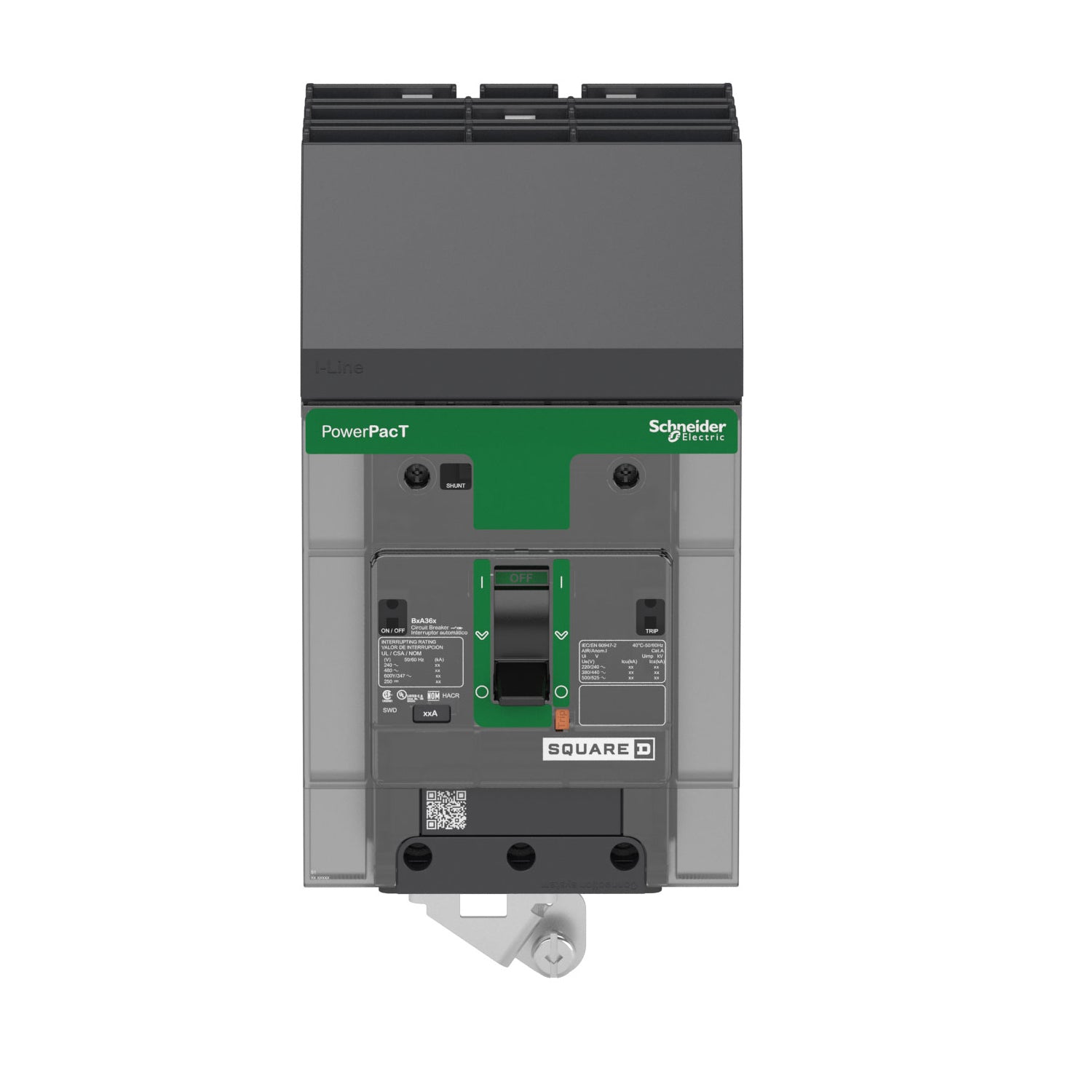

Square D BJA36110 Circuit Breaker | 600V 110A 3P 65kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Square D BJA36110 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 110A rating and a 65kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and offers Thermal Magnetic protection.

Key Features:
✔ Part Number: BJA36110
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BJA
✔ Voltage: 600
✔ Amperage: 110
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Al Mechanical Lug OFF End, I-Line ON End
✔ Frame Size: 125A/BJ
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901014683
✔ GTIN: 03606481185945
✔ Country of Origin: Mexico

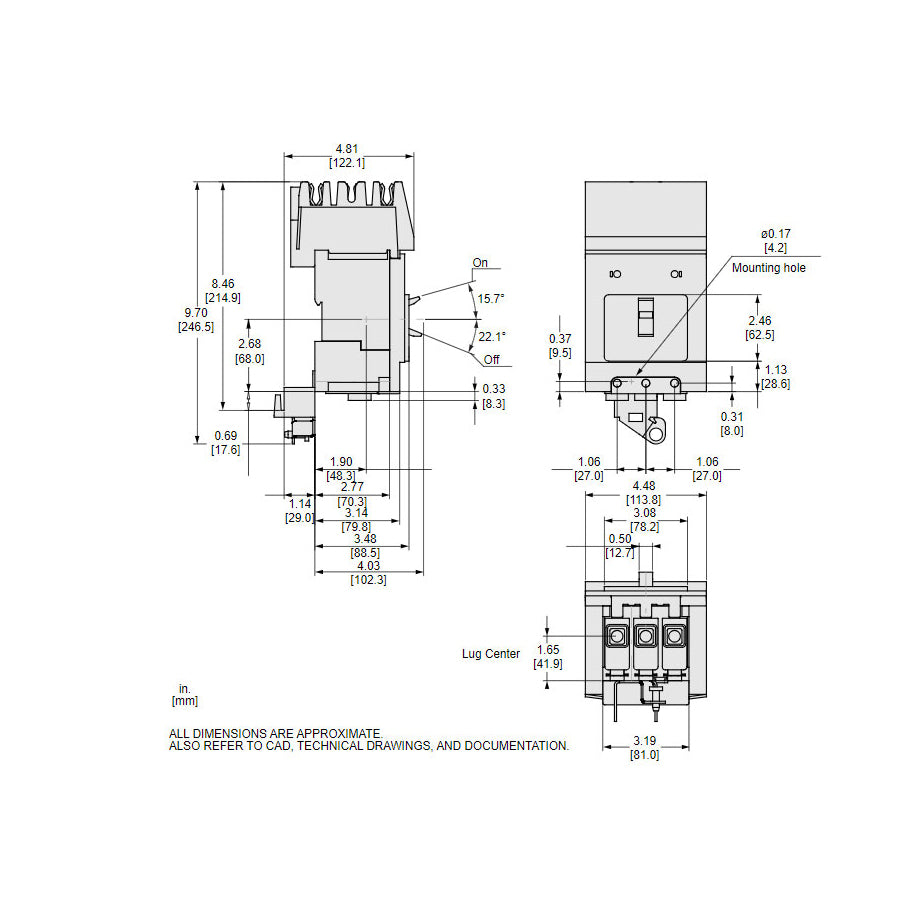

✔ Dimensions: 3.19 in x 5.39 in
✔ Weight: 1.88
✔ Panel Type: Electrical Distribution Equipment, Industrial Control Panels
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Certification: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Wire Size: AWG 14...AWG 2/0 aluminum/copper
