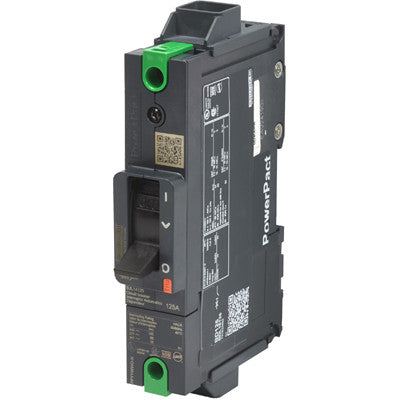

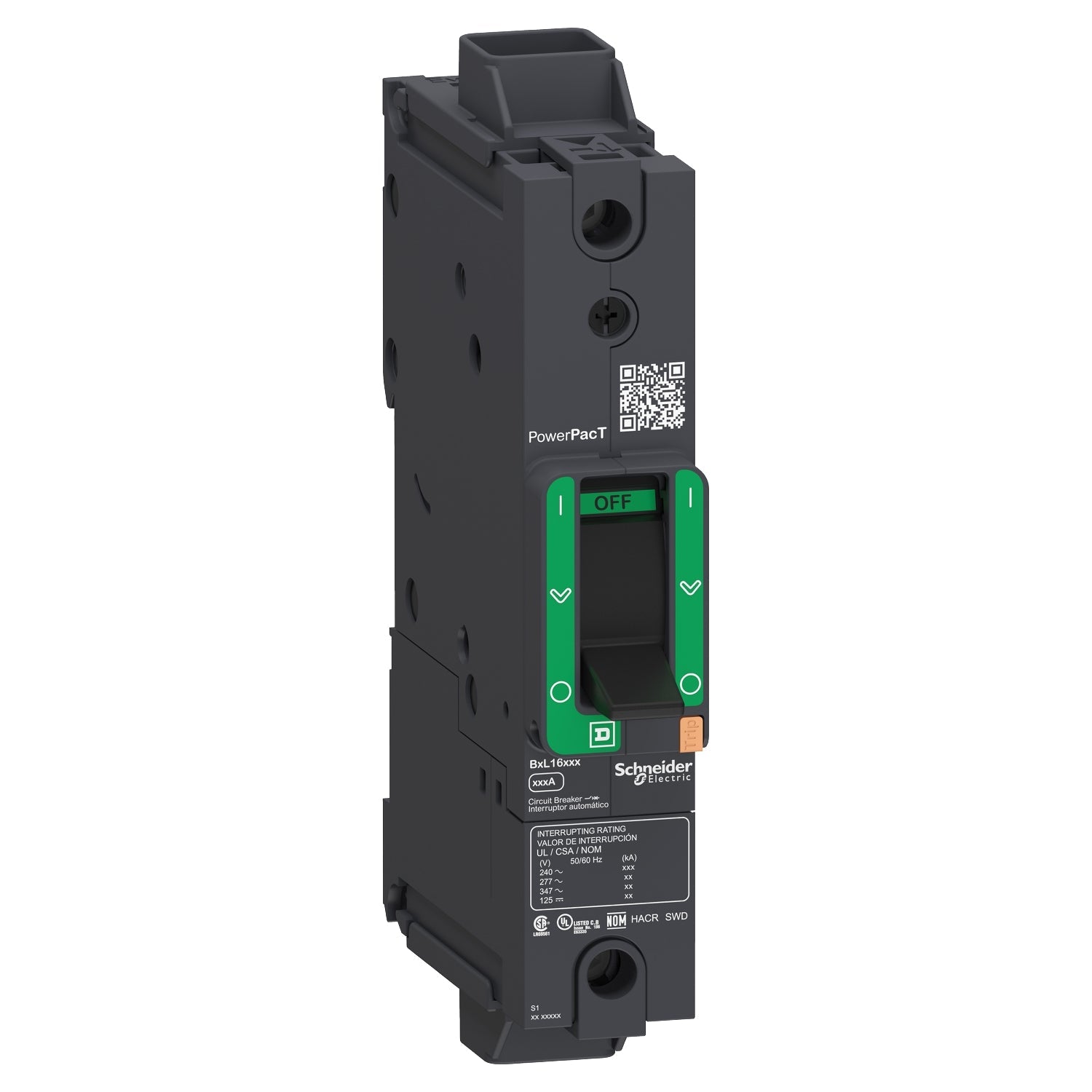

Square D BJL16030 Circuit Breaker | Powerpact BJL 600V 30A

Product Description:
The Square D BJL16030 is a Molded Case Circuit Breaker from the Powerpact family. It features a 1-pole design with a 600V, 30A rating and a 65kA@480V AIC rating. This breaker includes Thermal Magnetic protection and uses a Feed-Thru connection for easy installation.

Key Features:
✔ Part Number: BJL16030
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BJL
✔ Voltage: 600V
✔ Amperage: 30A
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Everlink Lug Both Ends
✔ Frame Size: 125A/BJ
✔ MCM Size: Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
✔ Breaker Type: Standard
✔ Temp Rating: -13-158 °F (-25-70 °C)
✔ UPC: 606481193912
✔ GTIN: 03606480000000
✔ Country of Origin: Mexico
✔ Dimensions: 1.06 in x 5.39 in
✔ Weight: 453.59
✔ Panel Type: Electrical Distribution Equipment, Industrial Control Panels
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Certification: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Wire Size: AWG 6...AWG 2/0 fine stranded aluminum/copper
AWG 14...AWG 3/0 rigid or stranded aluminum/copper
