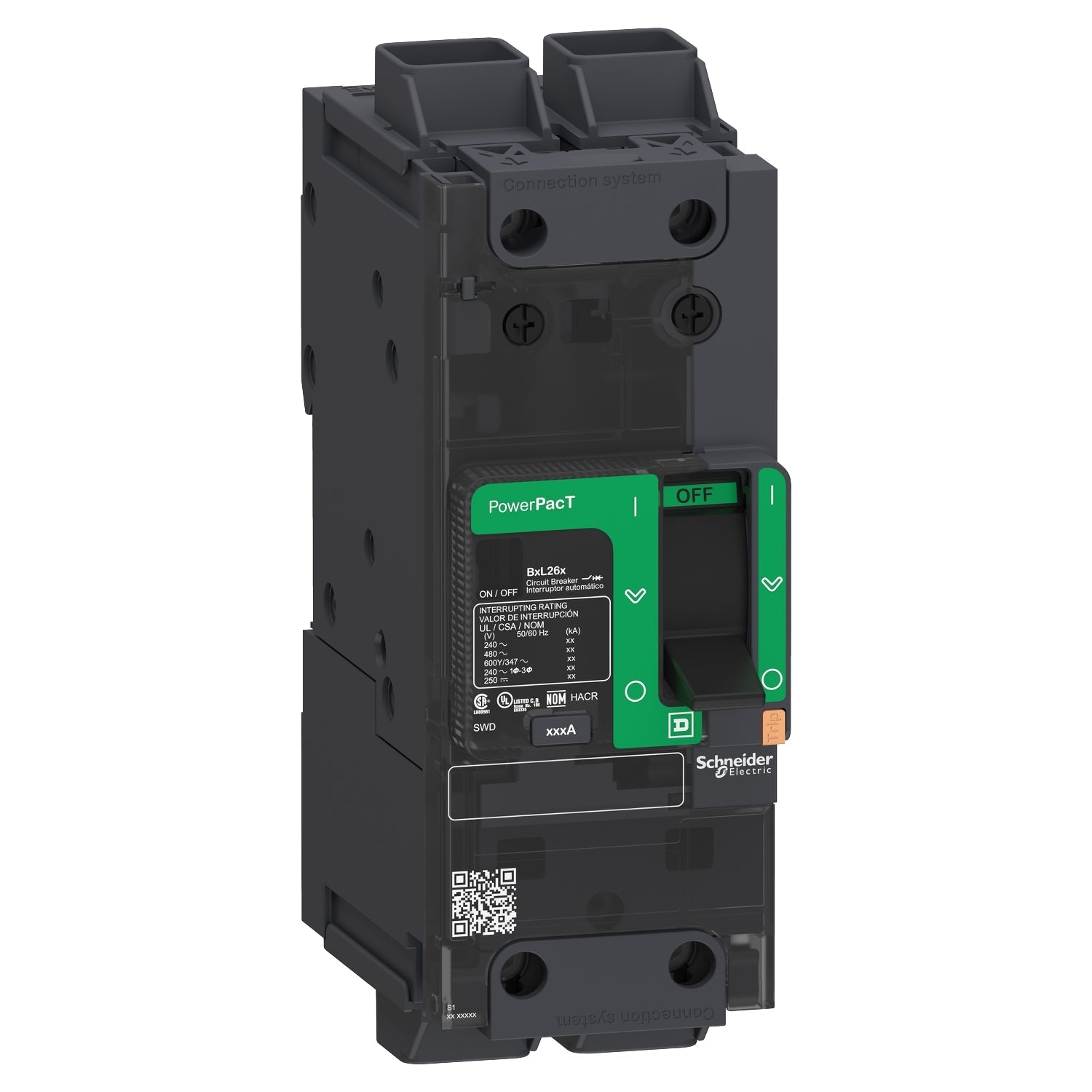

Schneider Electric BJL26030 Circuit Breaker | 600V 30A 2P 65kA@480V Feed-Thru Powerpact

Product Description:
The Schneider Electric BJL26030 is a Molded Case Circuit Breaker from the Powerpact family. It features 2 poles, 600V voltage, and 30A amperage with a 65kA@480V AIC rating. This breaker uses Feed-Thru connections and offers Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: BJL26030
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BJL
✔ Voltage: 600
✔ Amperage: 30
✔ Poles: 2
✔ AIC rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Everlink Lug Both Ends
✔ Frame Size: 125A/BJ
✔ MCM Size: Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901078227
✔ GTIN: 00606487056419
✔ Country of Origin: United States
✔ Dimensions: 2.12 in x 5.39 in
✔ Weight: 2
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Certification: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
