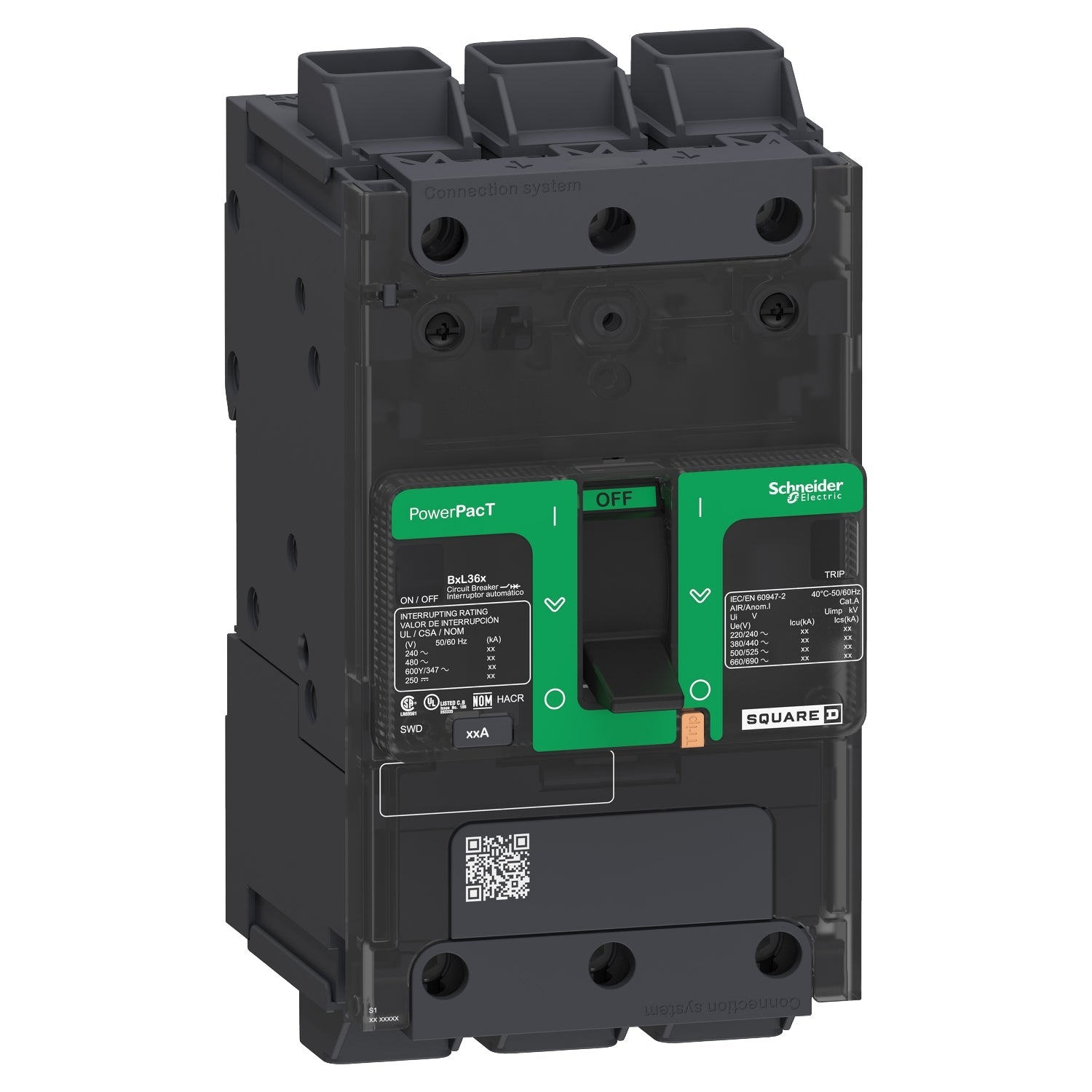

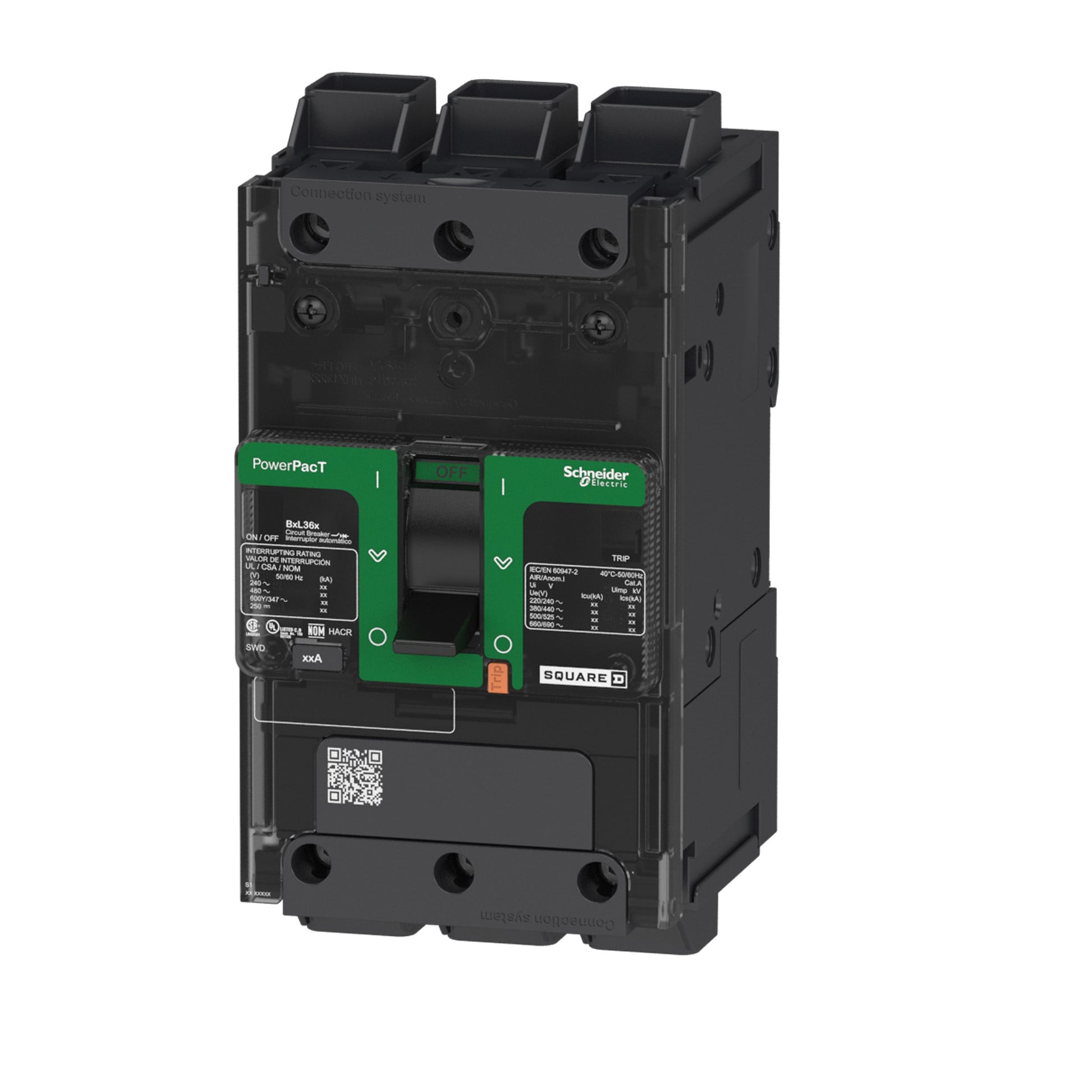

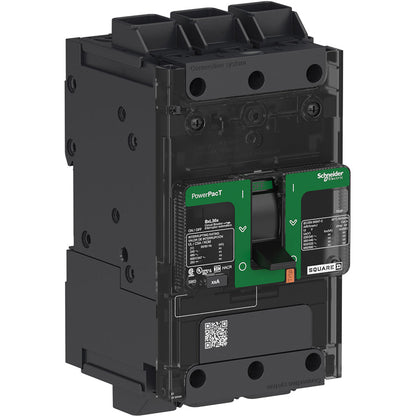

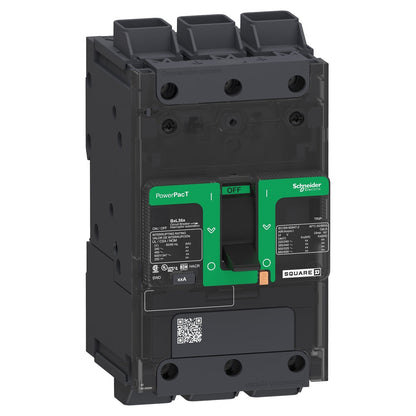

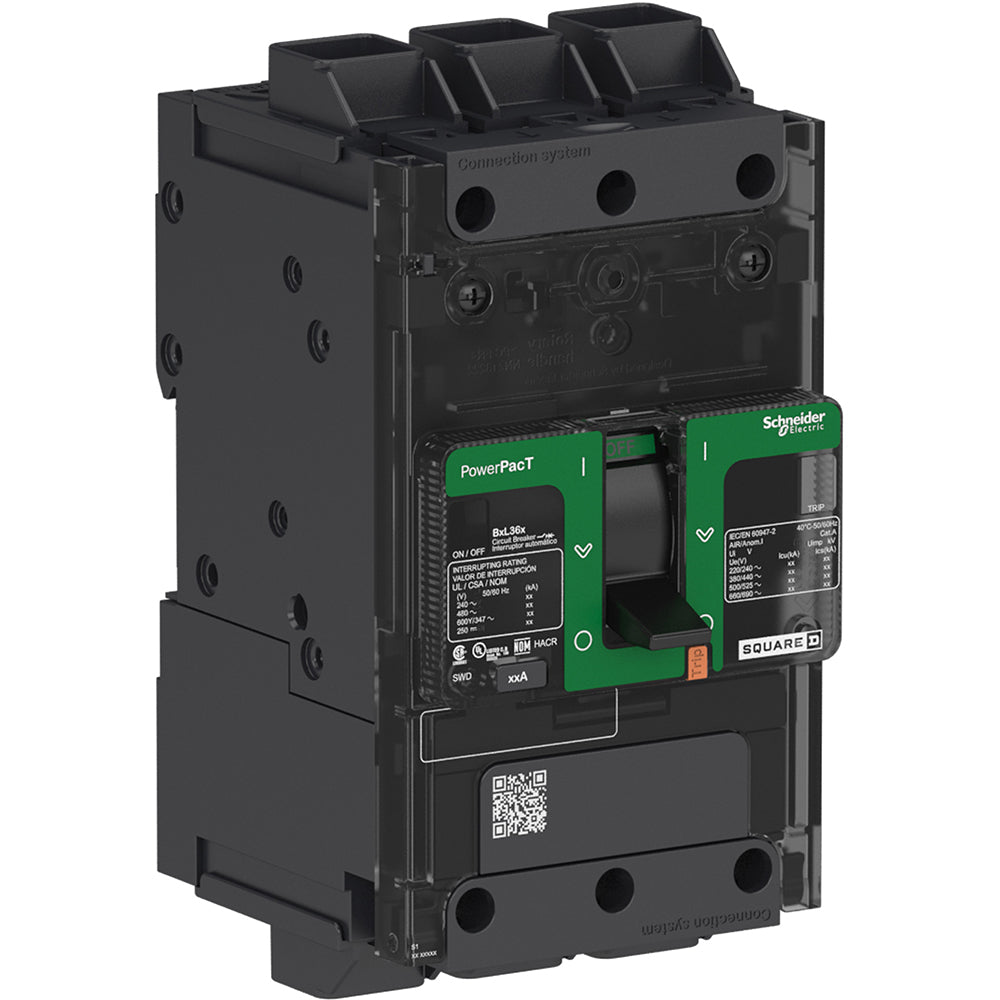

Square D BJL36020 Circuit Breaker | Powerpact BJL 600V 20A

Product Description:
The Square D BJL36020 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 20A rating and a 65kA@480V AIC rating. This breaker includes Thermal Magnetic protection and uses a Feed-Thru connection. It supports various wire sizes and is suitable for industrial applications.

Key Features:
✔ Part Number: BJL36020
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BJL
✔ Voltage: 600V
✔ Amperage: 20A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Everlink Lug Both Ends
✔ Frame Size: 125A/BJ
✔ MCM Size: Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
✔ Breaker Type: Standard
✔ Temp Rating: -13-158 °F (-25-70 °C)
✔ Wire Size: AWG 6...AWG 2/0 fine stranded aluminum/copper
AWG 14...AWG 3/0 rigid or stranded aluminum/copper
✔ Certification: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ UPC: 606481185993
✔ GTIN: 03606480000000
✔ Country of Origin: Mexico
✔ Dimensions: 3.19 in x 5.39 in
✔ Weight: 1.33 lbs
✔ Panel Type: Electrical Distribution Equipment, Industrial Control Panels
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
