Schneider Electric BJL36045 Circuit Breaker | Powerpact BJL 600V 45A

Product Description:

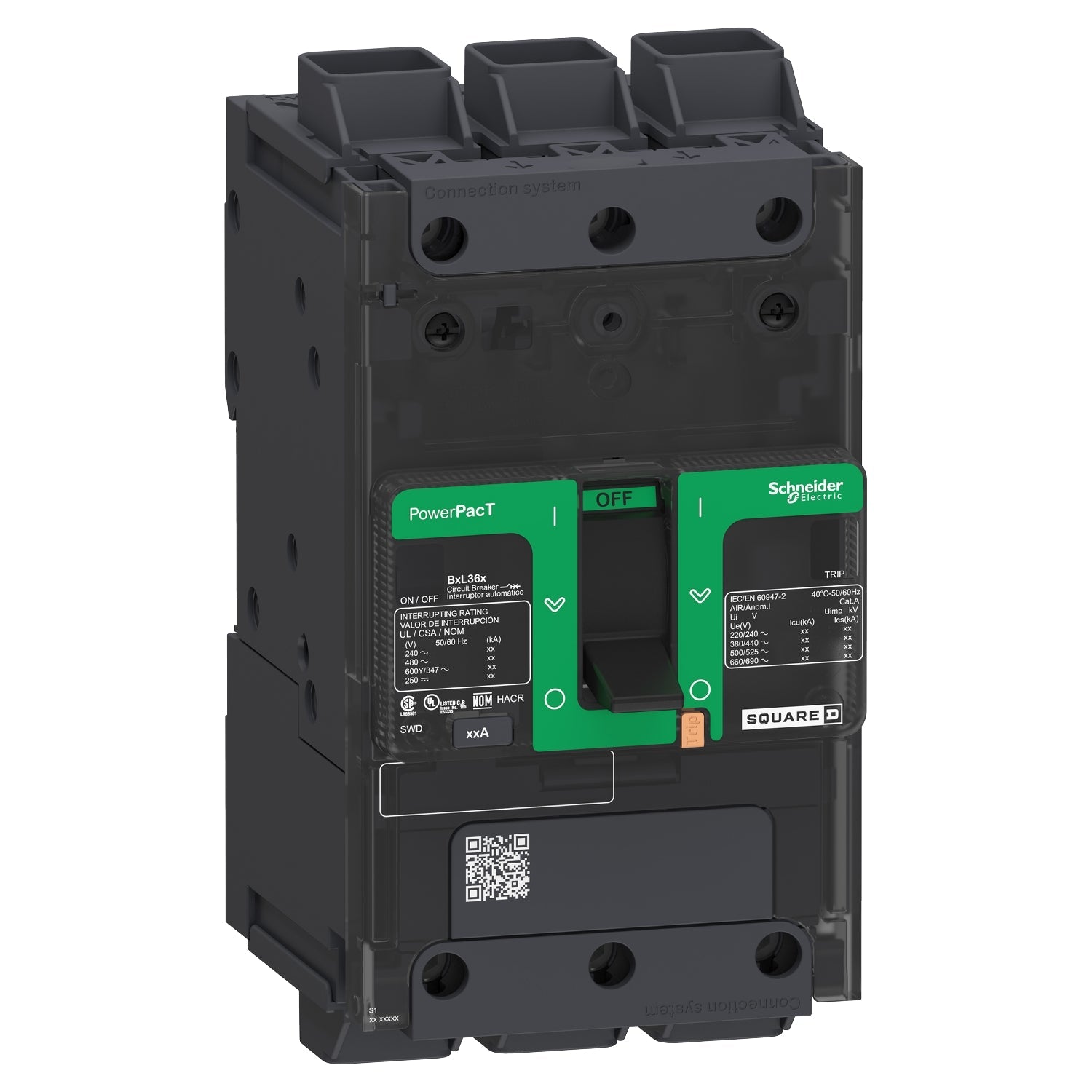

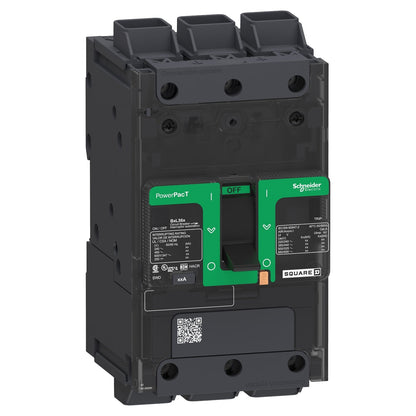

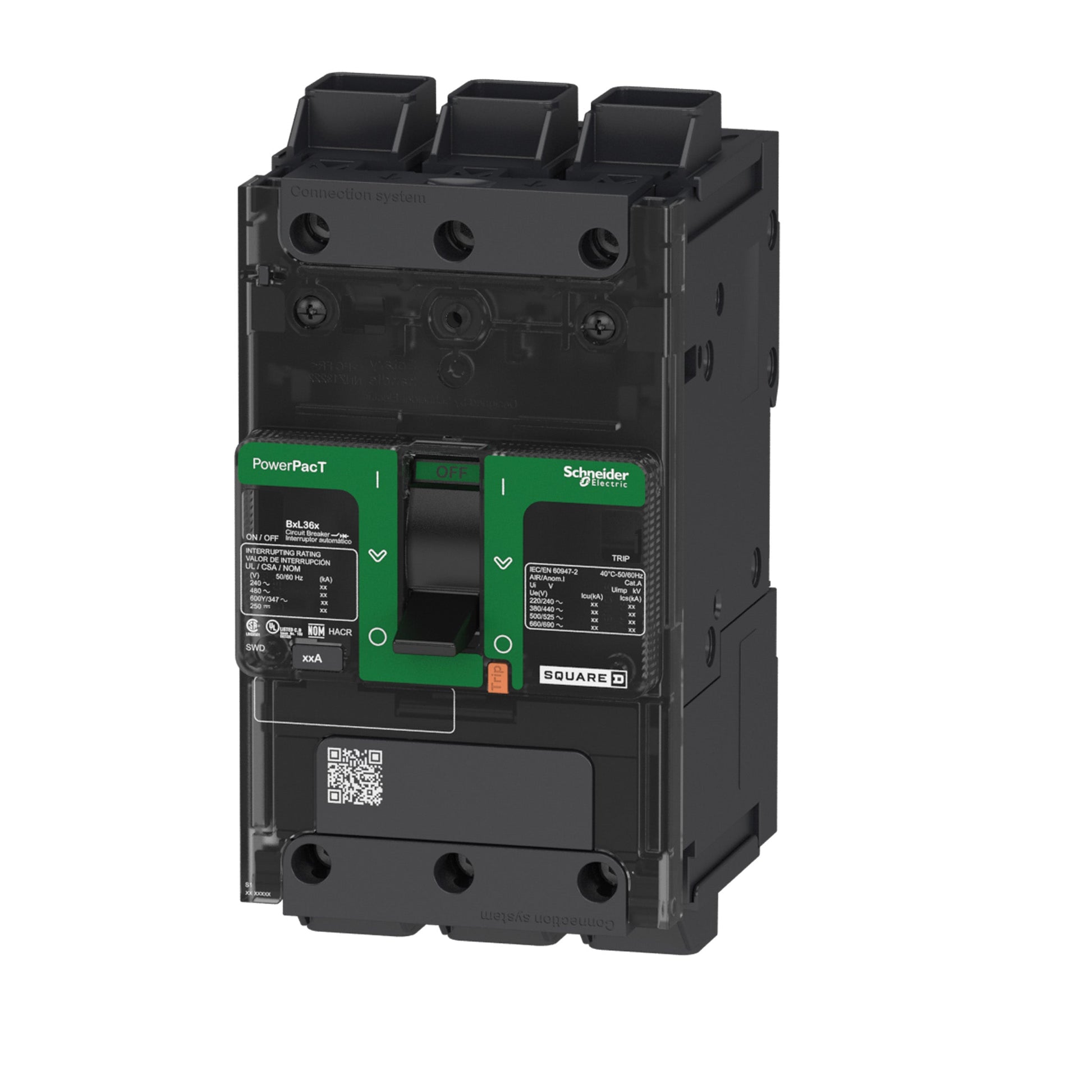

The Schneider Electric BJL36045 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 45A rating and a 65kA@480V AIC rating. This breaker uses Feed-Thru connections and includes Thermal Magnetic protection for reliable performance. It is suitable for industrial and electrical distribution applications.

Key Features:
✔ Part Number: BJL36045
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BJL
✔ Voltage: 600V
✔ Amperage: 45A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Everlink Lug Both Ends
✔ Frame Size: 125A/BJ
✔ MCM Size: Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
✔ Breaker Type: Standard
✔ Temp Rating: -13-158°F (-25-70°C)
✔ UPC: 785901078548
✔ GTIN: 00785901000000
✔ Country of Origin: United States
✔ Dimensions: 3.19 in x 5.39 in
✔ Weight: 1.18 lbs
✔ Panel Type: Electrical Distribution Equipment, Industrial Control Panels
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Certification: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Wire Size: AWG 6...AWG 2/0 fine stranded aluminum/copper
AWG 14...AWG 3/0 rigid or stranded aluminum/copper
