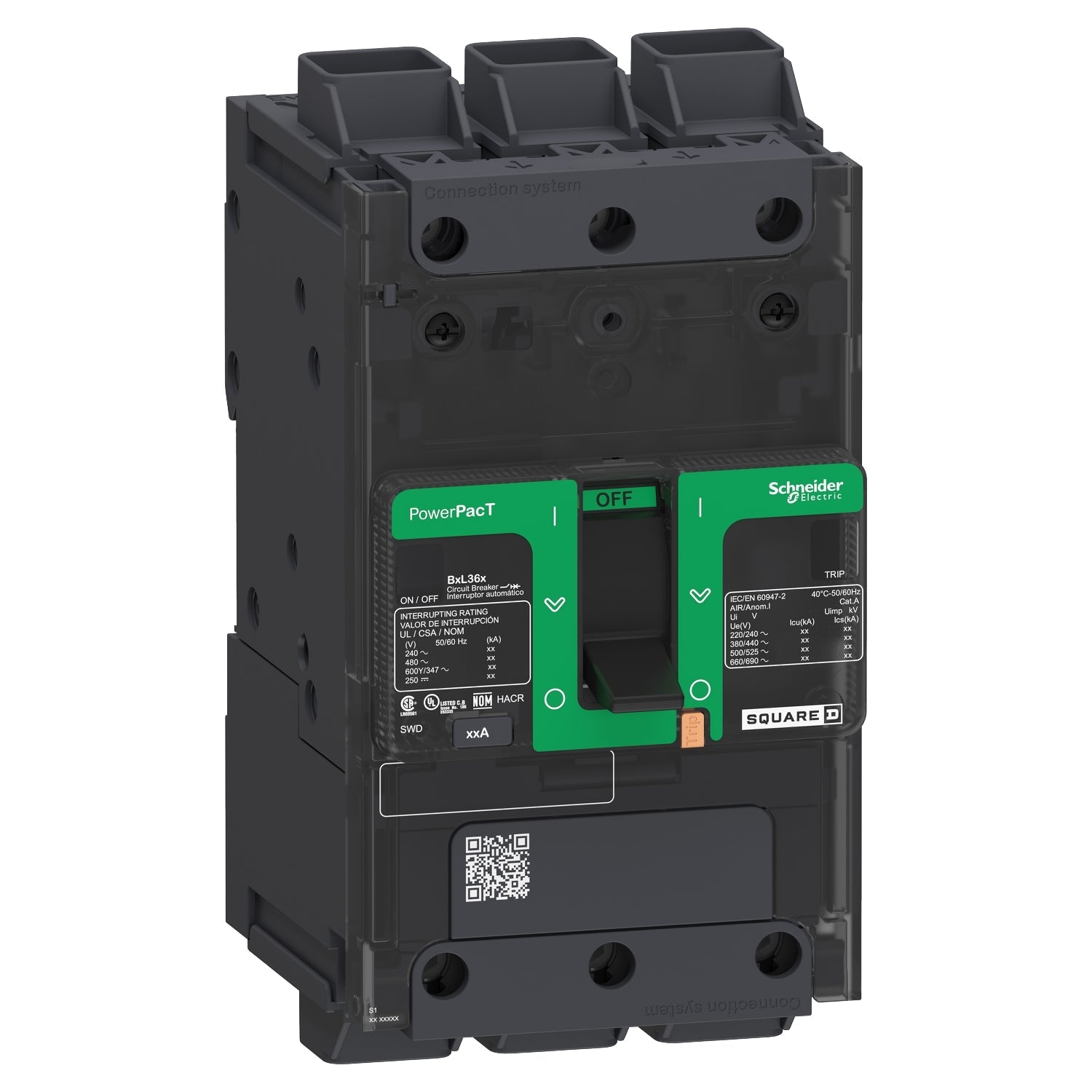

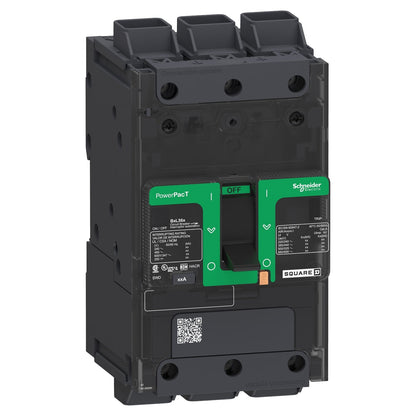

Square D BJL36060 Circuit Breaker | 600V 60A 3P 65kA@480V Feed-Thru Powerpact

Product Description:
The Square D BJL36060 is a Powerpact family Molded Case Circuit Breaker designed for industrial electrical systems. It is a 3-pole, 60 amp breaker rated for 600 volts with a 65kA interrupting capacity at 480V. This model features thermal magnetic protection and a feed-thru connection for reliable circuit management.

Key Features:
✔ Part Number: BJL36060
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BJL
✔ Voltage: 600
✔ Amperage: 60
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Everlink Lug Both Ends
✔ Frame Size: 125A/BJ
✔ MCM Size: Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901025856
✔ GTIN: 03606481186034
✔ Country of Origin: Mexico
✔ Dimensions: 3.19 in x 5.39 in
✔ Weight: 1.45
✔ Panel Type: Electrical Distribution Equipment, Industrial Control Panels
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Certification: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Wire Size: AWG 6...AWG 2/0 fine stranded aluminum/copper, AWG 14...AWG 3/0 rigid or stranded aluminum/copper
