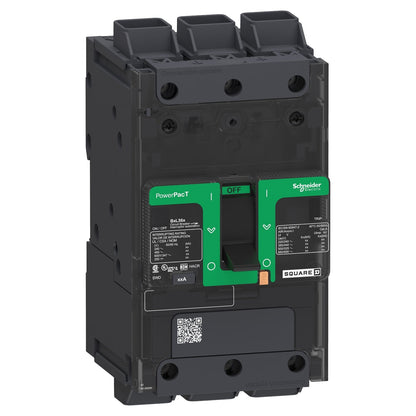

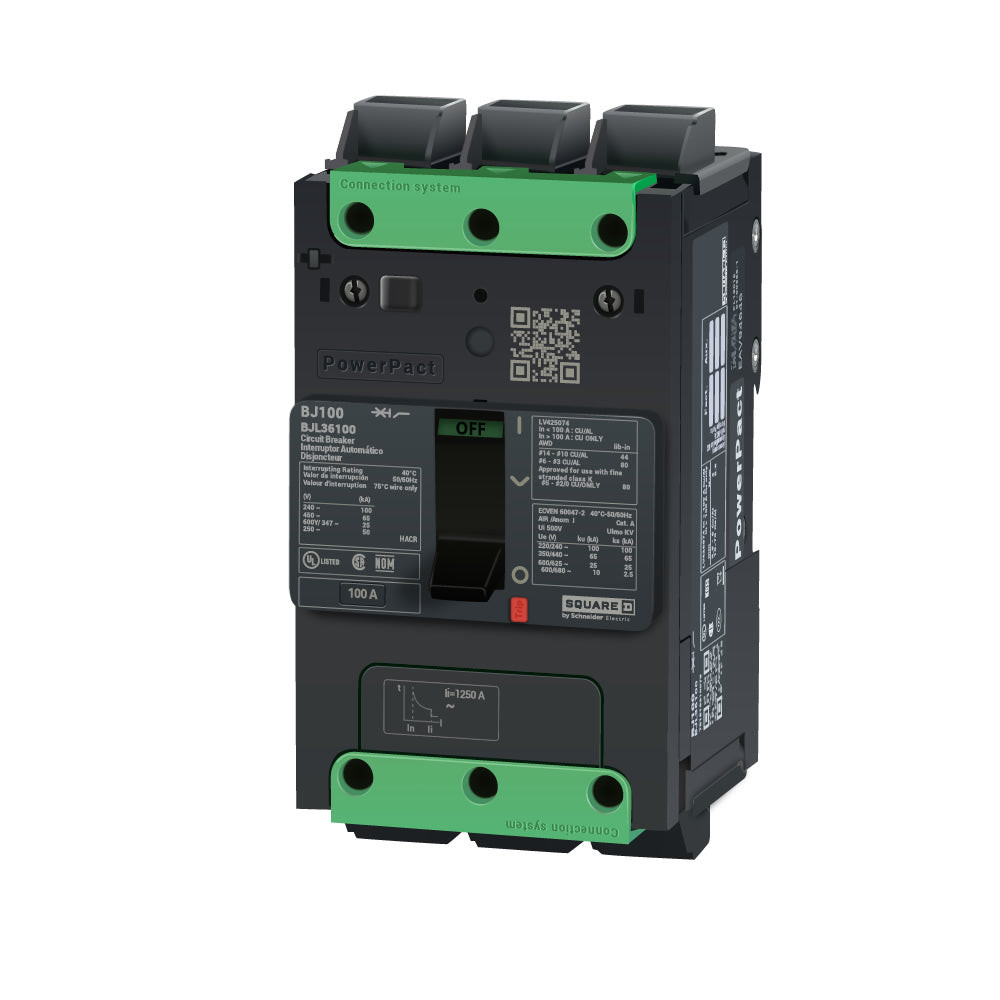

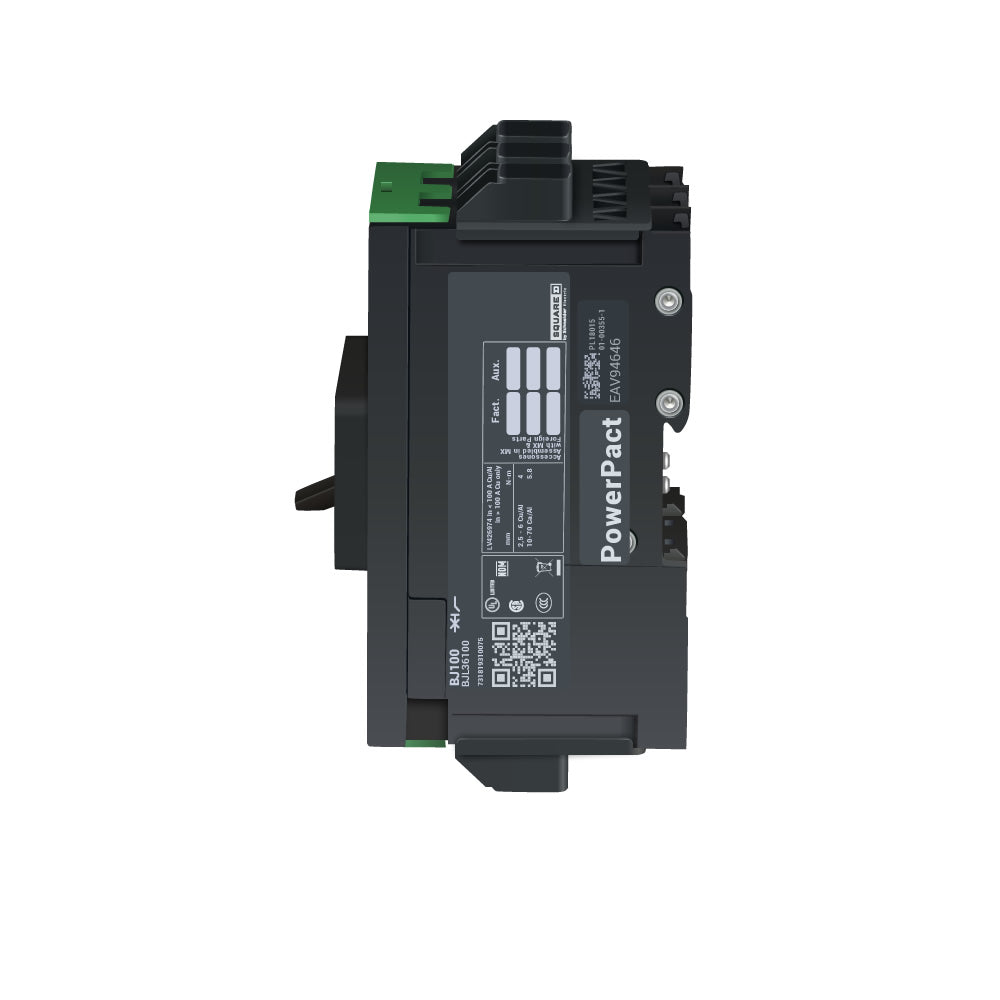

Square D BJL36100 Circuit Breaker | Powerpact BJL 600V 100A

Product Description:
The Square D BJL36100 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 100A rating and a 65kA@480V AIC rating. This breaker includes Thermal Magnetic protection and uses a Feed-Thru connection for easy installation.

Key Features:
✔ Part Number: BJL36100
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BJL
✔ Voltage: 600V
✔ Amperage: 100A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Protection: Thermal Magnetic
✔ Terminal Connection: Everlink Lug Both Ends
✔ Frame Size: 125A/BJ
✔ Wire Size: Min. 14 AWG, Max. 2 AWG (rigid/stranded)
✔ Certification: CSA, EN/IEC, GB, NEMA, NMX, UL
✔ UPC: 606481186075
✔ GTIN: 03606480000000
✔ Country of Origin: Mexico
