Square D BJL36125 Circuit Breaker | Powerpact BJL 600V 125A

Product Description:

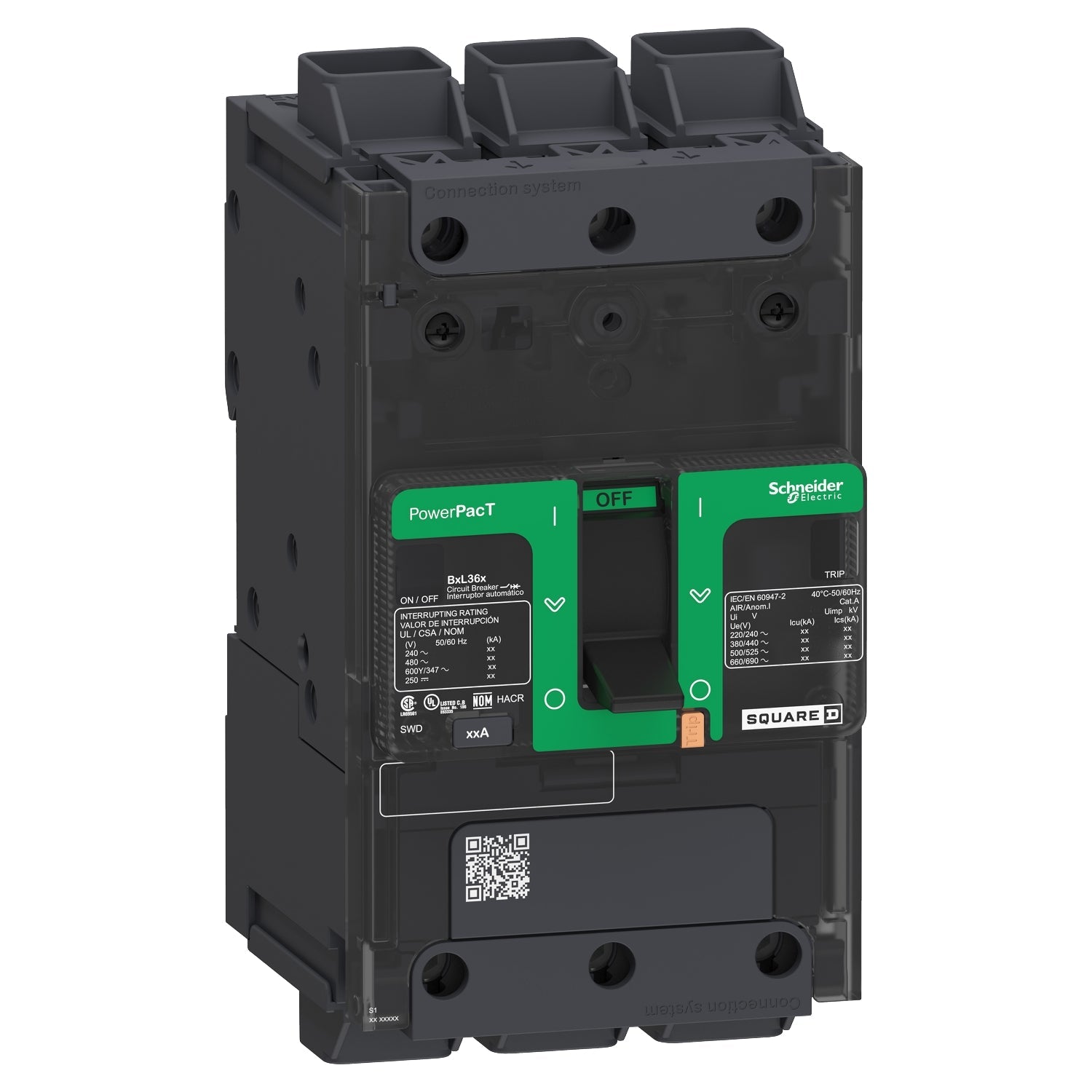

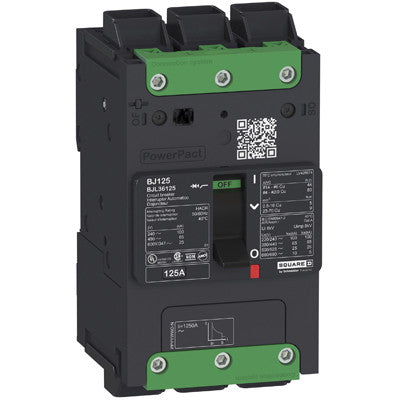

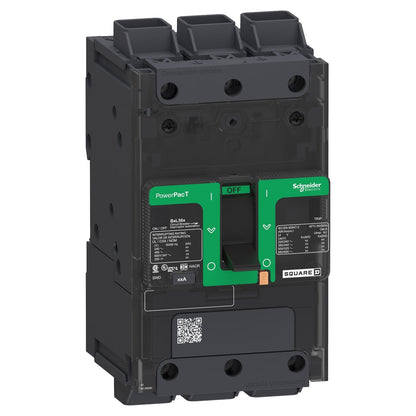

The Square D BJL36125 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 125A rating and a 65kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: BJL36125
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BJL
✔ Voltage: 600V
✔ Amperage: 125A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Protection: Thermal Magnetic
✔ Terminal Connection: Everlink Lug Both Ends
✔ Frame Size: 125A/BJ
✔ Wire Size: Min. 14 AWG, Max. 2 AWG (rigid/stranded)
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, UL 489
✔ Certification: CSA, EN/IEC, NEMA, UL
✔ UPC: 606481186082
✔ GTIN: 03606480000000
✔ Country of Origin: Mexico
