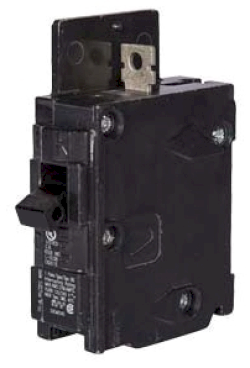

Siemens BQ1B03000S01 Circuit Breaker | 120V 30A 1P 10kA@120V Bolt-on BQ Series

Product Description:

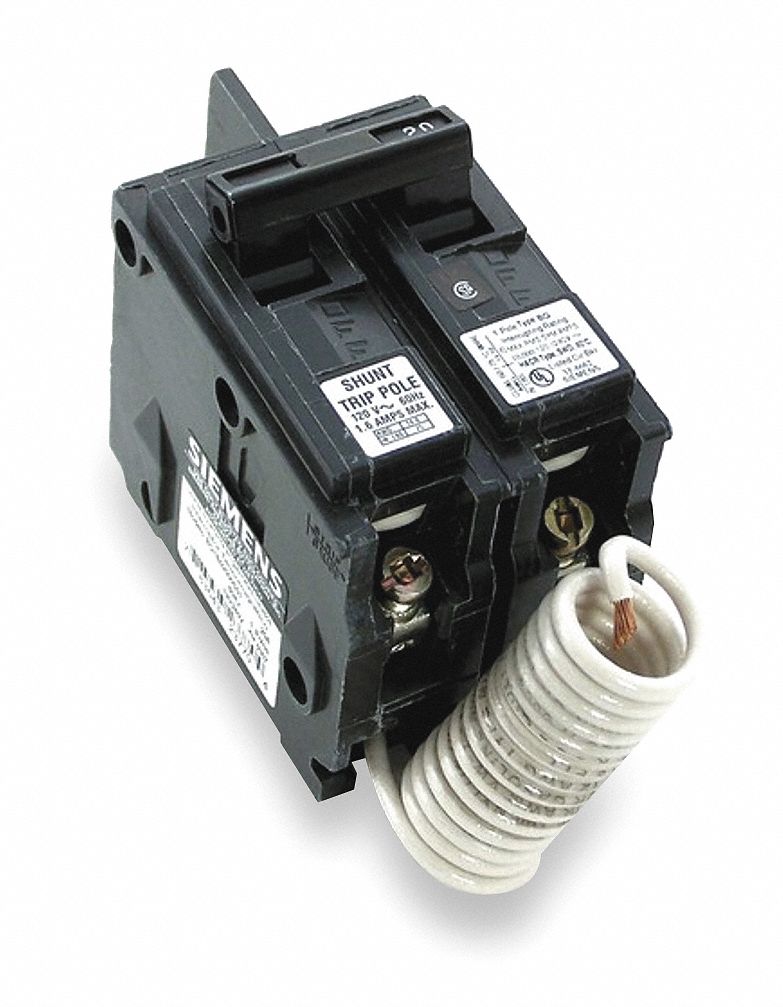

The Siemens BQ1B03000S01 is a Molded Case Circuit Breaker from the BQ Series. It features 1 pole, 120V voltage, and 30A amperage with a 10kA@120V AIC rating. This breaker uses a bolt-on connection and includes thermal magnetic protection. It comes with a non-interchangeable 120V shunt trip.

Key Features:
✔ Part Number: BQ1B03000S01
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQ Series
✔ Type: BQ
✔ Voltage: 120
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BQ
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 783643239487
✔ GTIN: 00783643239487
✔ Country of Origin: Mexico
✔ Dimensions: 9.843 x 15.748 x 6.693
✔ Weight: 1
✔ Panel Type: Siemens Panelboards
✔ Standards: CSA Certified, HACR Rated, UL Listed
