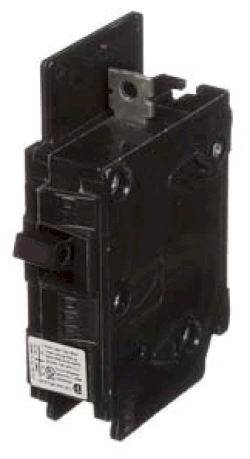

Siemens BQ1B050H Circuit Breaker | BQ Series BQH 120V 50A
Siemens BQ1B050H Circuit Breaker | BQ Series BQH 120V 50A
Price:
Sale
Sold out
Regular price
$62.32 USD
Regular price
$150.50 USD
Sale price
$62.32 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Siemens BQ1B050H is a Molded Case Circuit Breaker from the BQ Series. It features a 1-pole design with a 120V, 50A rating and a 22kA@120V AIC rating. This breaker uses a bolt-on connection and offers thermal magnetic protection. It is UL-listed and CSA-certified for safety compliance.
Key Features:
✔ Part Number: BQ1B050H
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQ Series
✔ Type: BQH
✔ Voltage: 120V
✔ Amperage: 50A
✔ Phase: 1
✔ Poles: 1
✔ AIC Rating: 22kA@120V
✔ Connection: Bolt-on
✔ Protection: Thermal Magnetic
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BQH
✔ Min. Wire Size: 12 AWG (Al), 14 AWG (Cu)
✔ Max. Wire Size: 6 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Certification: CSA Certified, UL Listed
✔ UPC: 783643161535
✔ GT
