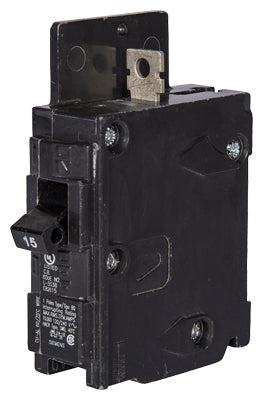

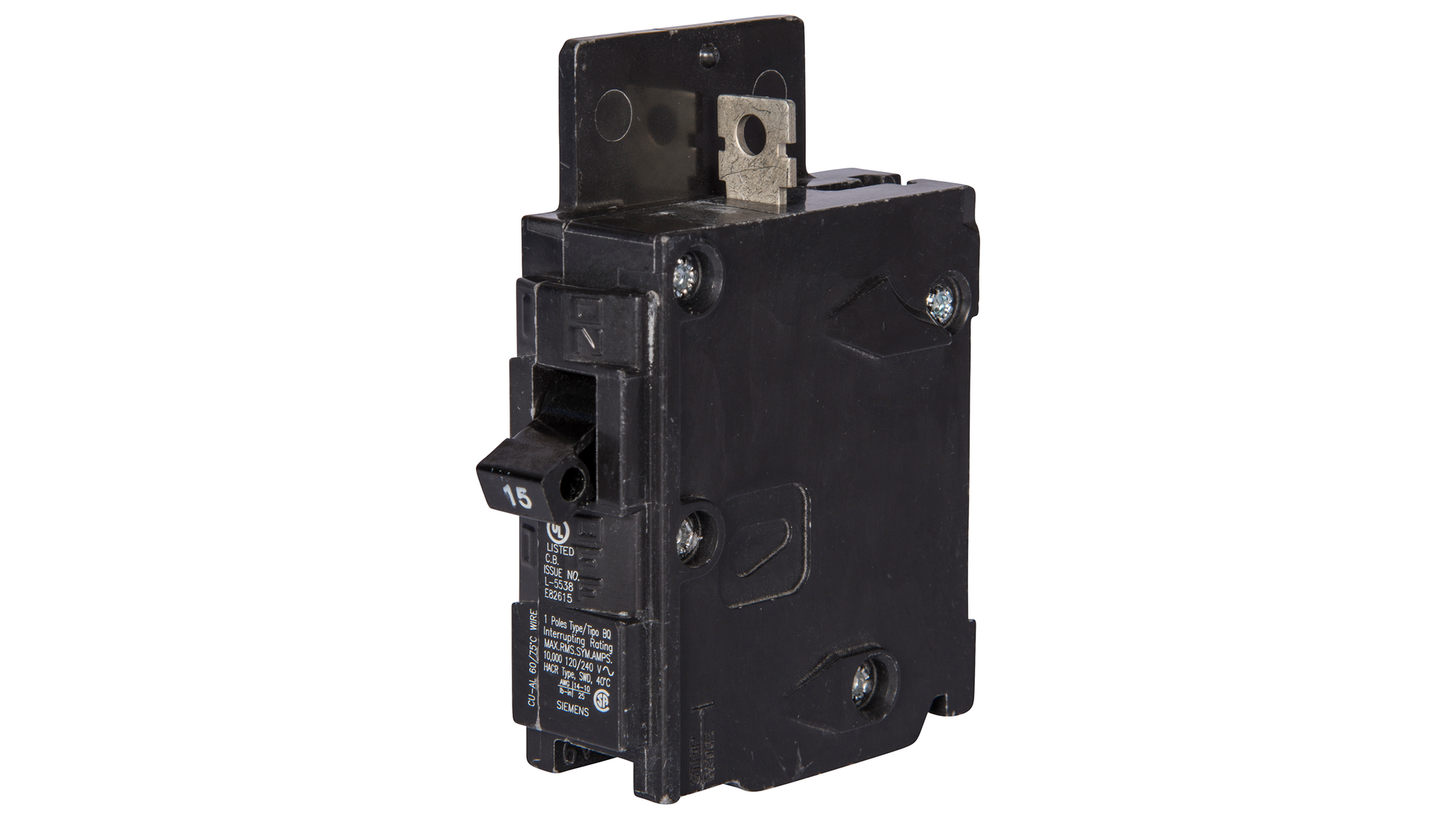

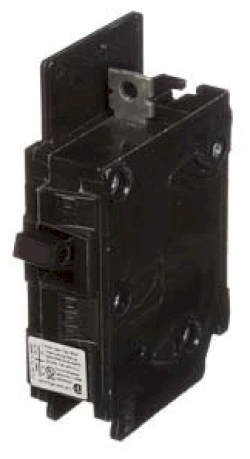

Siemens BQ1B060H Circuit Breaker | BQ Series BQH 120V 60A
Siemens BQ1B060H Circuit Breaker | BQ Series BQH 120V 60A
Price:
Sale
Sold out
Regular price
$57.78 USD
Regular price
$150.50 USD
Sale price
$57.78 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 2 left
Couldn't load pickup availability
Product Description:
The Siemens BQ1B060H is a Molded Case Circuit Breaker from the BQ Series. It features a 1-pole design with a 120V, 60A rating and a 22kA AIC rating at 120V. This breaker uses a bolt-on connection and offers thermal magnetic protection. It is UL Listed and CSA Certified for safety compliance.
Key Features:
✔ Part Number: BQ1B060H
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQ Series
✔ Type: BQH
✔ Voltage: 120V
✔ Amperage: 60A
✔ Certification: UL Listed, CSA Certified
✔ UPC: 783643161559
✔ GTIN: 00783643161559
✔ Phase: 1
✔ Poles: 1
✔ AIC Rating: 22kA@120V
✔ Connection: Bolt-on
✔ Protection: Thermal Magnetic
✔ Frame Size: 125A/BQH
✔ Min. Wire Size: 12 AWG (Al), 14 AWG (Cu)
✔ Max. Wire Size: 6 AWG
✔ Breaker Type: High Interrupting Capacity
The Siemens BQ1B060H is a Molded Case Circuit Breaker from the BQ Series. It features a 1-pole design with a 120V, 60A rating and a 22kA AIC rating at 120V. This breaker uses a bolt-on connection and offers thermal magnetic protection. It is UL Listed and CSA Certified for safety compliance.
