Images are for reference only
Siemens

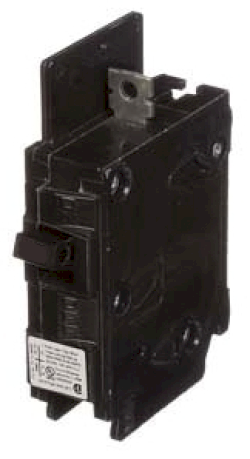

Siemens BQ1B070H Circuit Breaker | BQ Series BQH 120V 70A
Siemens BQ1B070H Circuit Breaker | BQ Series BQH 120V 70A
Price:
Sale
Sold out
Regular price
$32.84 USD
Regular price
$218.00 USD
Sale price
$32.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Siemens BQ1B070H is a Molded Case Circuit Breaker from the BQ Series. It features a 1-pole design with a 120V, 70A rating and a 22kA@120V AIC rating. This breaker uses a bolt-on connection and offers thermal magnetic protection. It is CSA Certified and UL Listed for safety compliance.
Key Features:
✔ Part Number: BQ1B070H
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQ Series
✔ Type: BQH
✔ Voltage: 120V
✔ Amperage: 70A
✔ Phase: 1
✔ Poles: 1
✔ AIC Rating: 22kA@120V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BQH
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
✔ Max. Wire Size: 6 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ Certification: CSA Certified, UL Listed
The Siemens BQ1B070H is a Molded Case Circuit Breaker from the BQ Series. It features a 1-pole design with a 120V, 70A rating and a 22kA@120V AIC rating. This breaker uses a bolt-on connection and offers thermal magnetic protection. It is CSA Certified and UL Listed for safety compliance.
Key Features:
✔ Part Number: BQ1B070H
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQ Series
✔ Type: BQH
✔ Voltage: 120V
✔ Amperage: 70A
✔ Phase: 1
✔ Poles: 1
✔ AIC Rating: 22kA@120V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BQH
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
✔ Max. Wire Size: 6 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ Certification: CSA Certified, UL Listed
