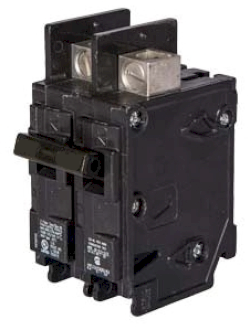

Siemens BQ2B01500S01 Circuit Breaker 120/240V 15A 2P 10kA@240V Bolt-on BQ Series
Siemens BQ2B01500S01 Circuit Breaker 120/240V 15A 2P 10kA@240V Bolt-on BQ Series
Price:
Sale
Sold out
Regular price
$208.35 USD
Regular price
$479.00 USD
Sale price
$208.35 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 5 left
Couldn't load pickup availability
Product Description:
The Siemens BQ2B01500S01 is a molded case circuit breaker designed for 120/240V electrical systems. It offers reliable thermal magnetic protection and is rated for 15 amps with a 10kA interrupting capacity. This 2-pole breaker features a bolt-on connection and includes a non-interchangeable 120V shunt trip. It is compatible with Siemens panelboards and meets UL and HACR standards.
Key Features:
✔ Part Number: BQ2B01500S01
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQ Series
✔ Type: BQ
✔ Voltage: 120/240
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BQ
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 783643237711
✔ GTIN: 00783643237711
✔ Country of Origin: Mexico
✔ Dimensions: 4 in x 3 in x 3 in
✔ Weight: 0.75
✔ Panel Type: Siemens Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
