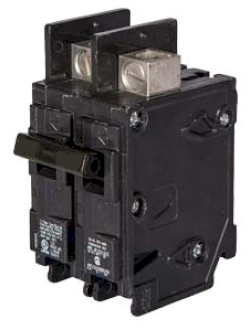

Siemens BQ2B02000S01 Circuit Breaker | 120/240V 20A 2P 10kA@240V Bolt-on BQ Series

Product Description:
The Siemens BQ2B02000S01 is a 2-pole molded case circuit breaker designed for 120/240V applications. It features a 20 amp rating and a 10kA@240V interrupting capacity for reliable circuit protection. This thermal magnetic breaker uses a bolt-on connection and includes a non-interchangeable 120V shunt trip function. It is compatible with Siemens panelboards and is HACR rated and UL listed.

Key Features:
✔ Part Number: BQ2B02000S01
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQ Series
✔ Type: BQ
✔ Voltage: 120/240
✔ Amperage: 20
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BQ
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 783643237728
✔ GTIN: 00783643237728
✔ Country of Origin: Mexico
✔ Dimensions: 4 in x 4 in x 4 in
✔ Weight: 1
✔ Panel Type: Siemens Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
