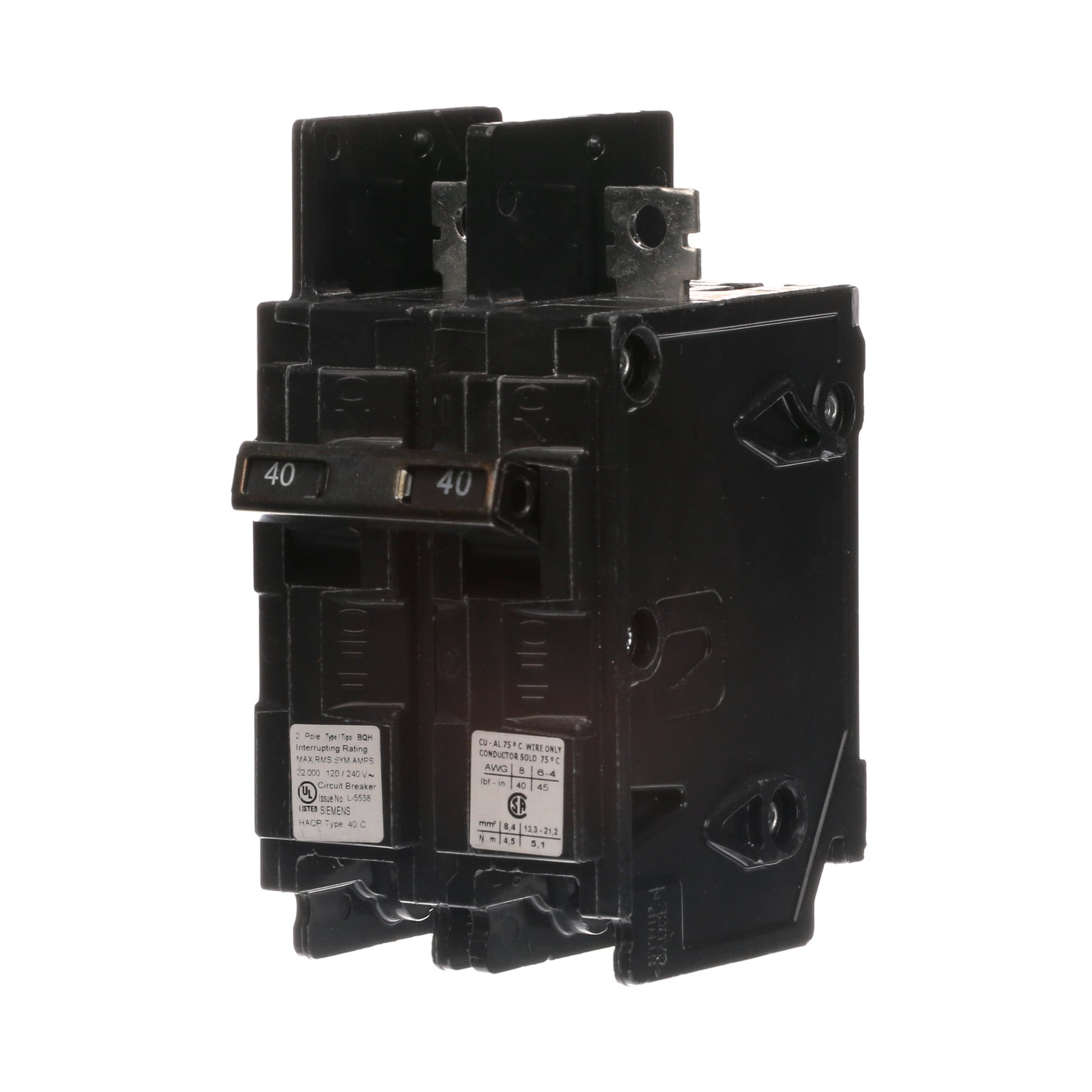

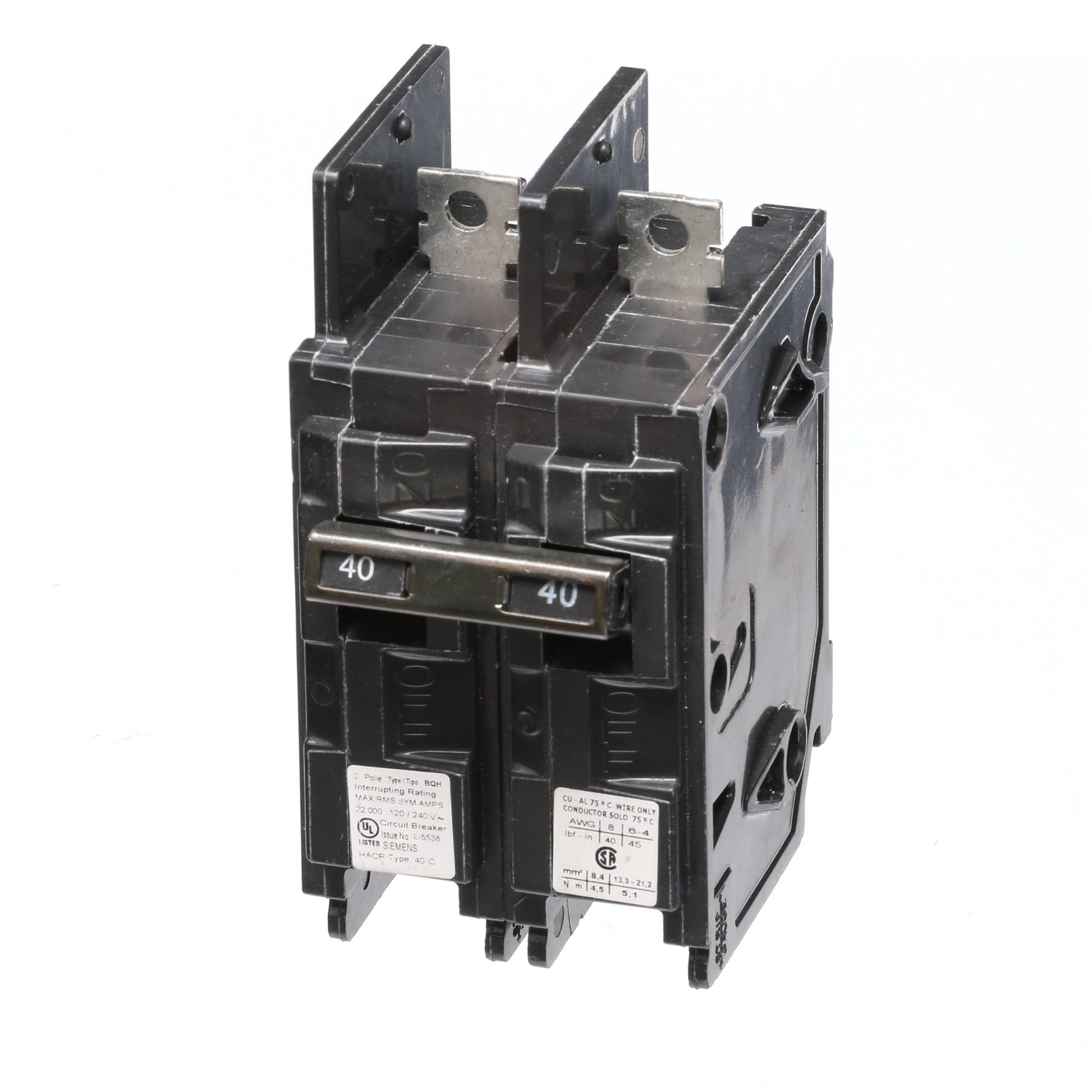

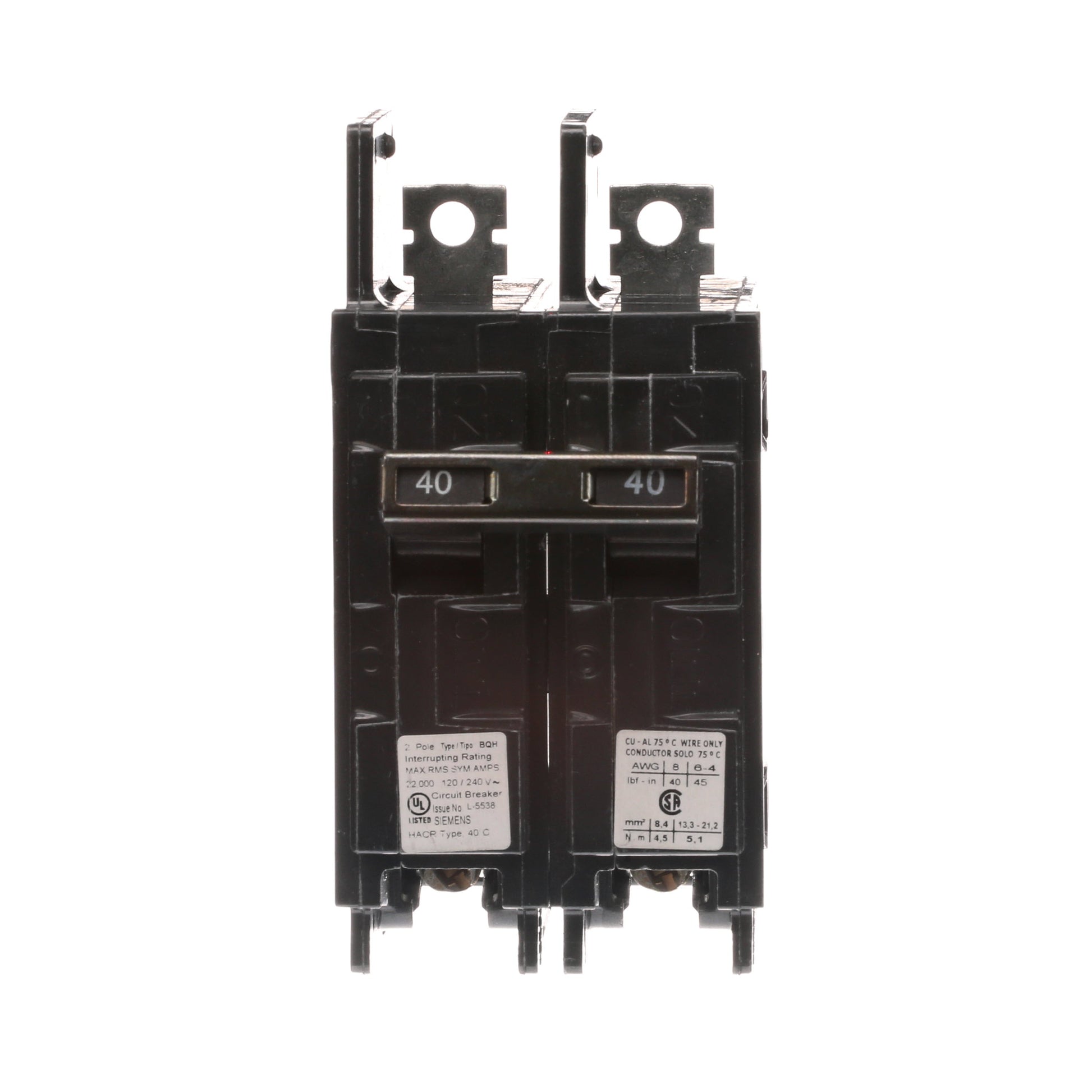

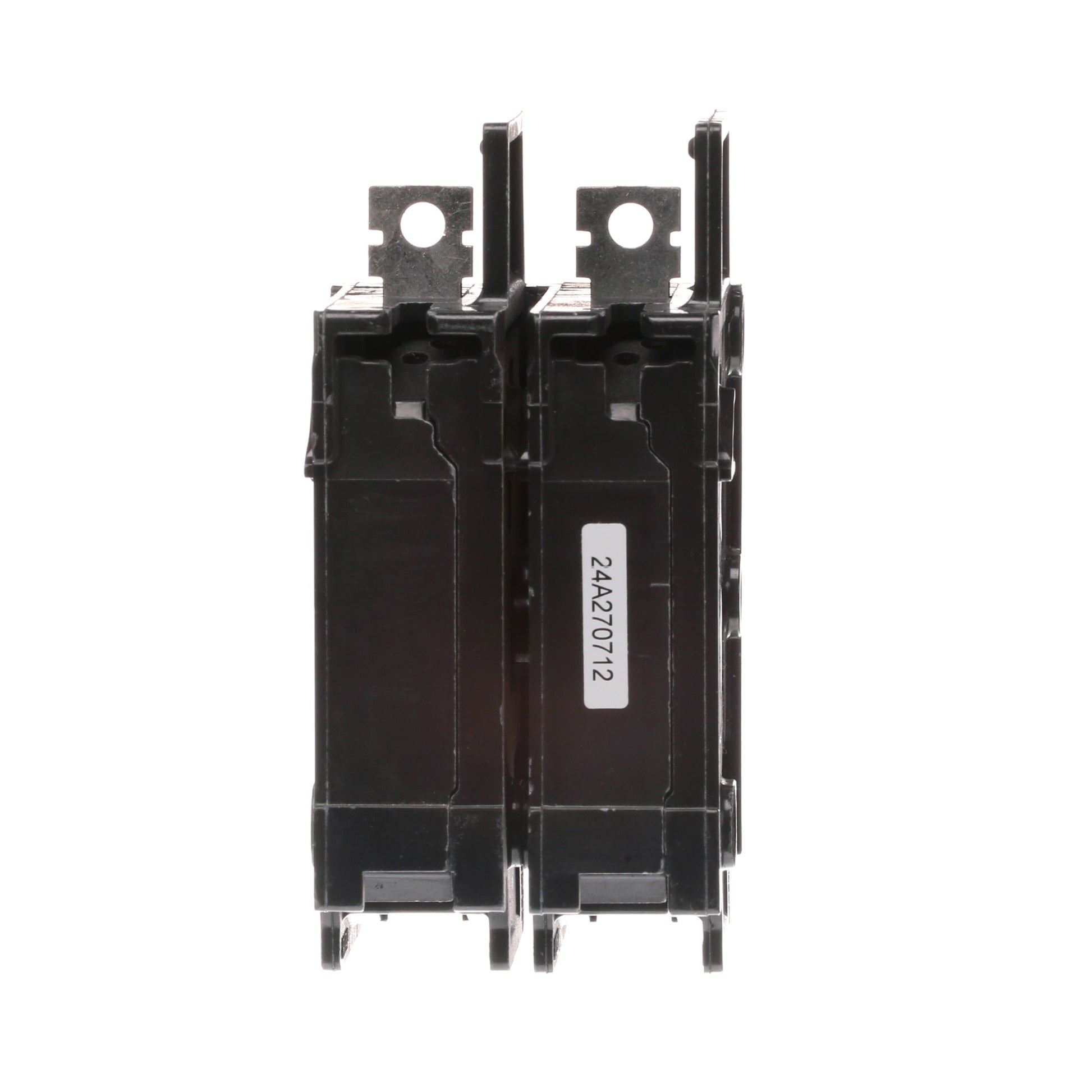

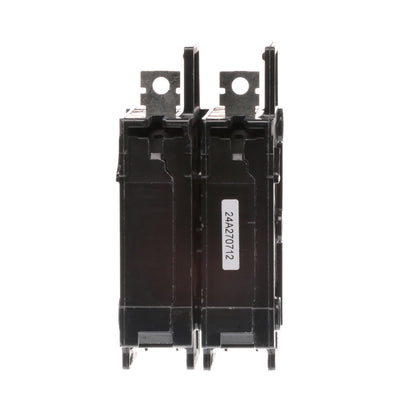

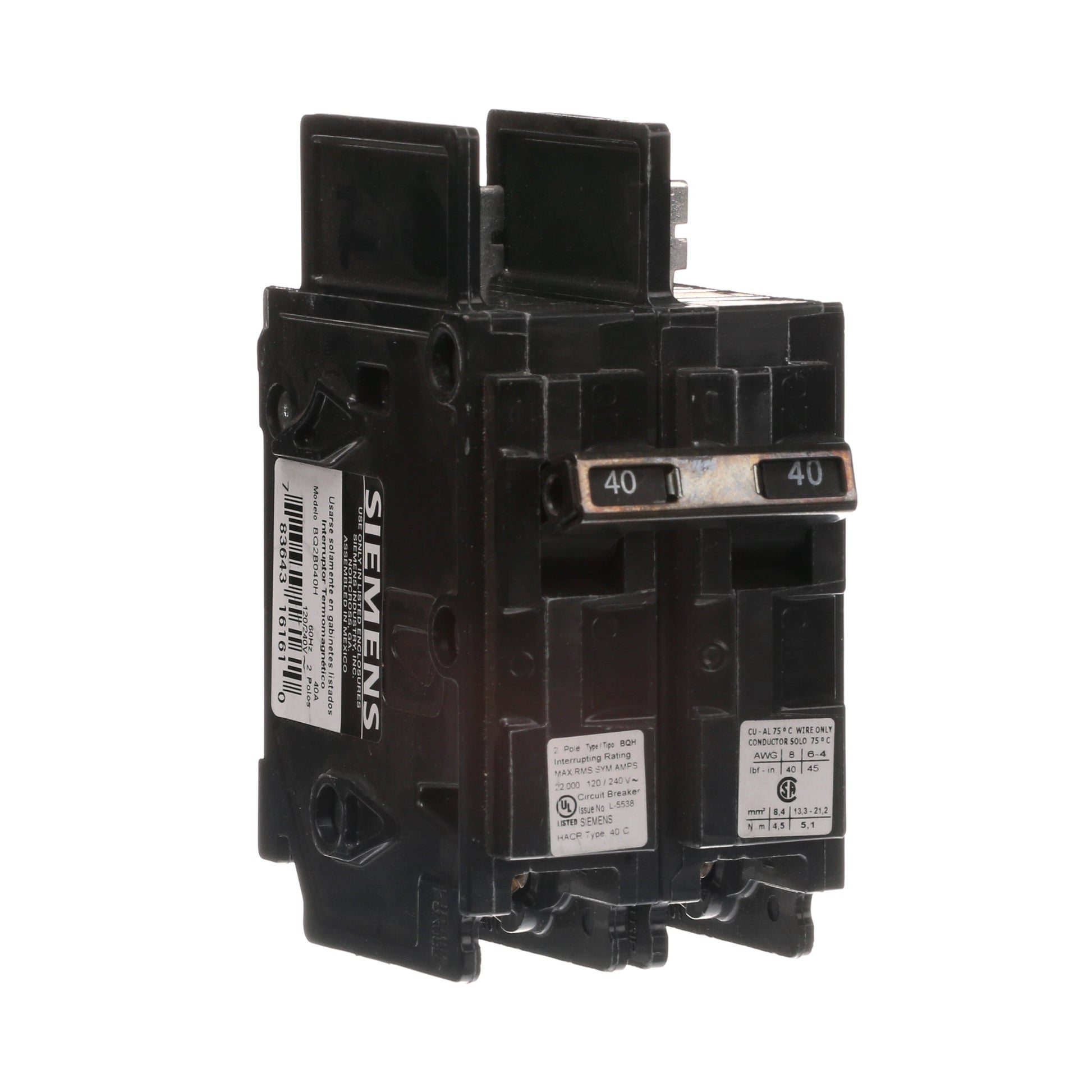

Siemens BQ2B040H Molded Case Circuit Breaker 120/240V 40A 2P 22kA@240V Bolt-on BQ Series

Product Description:
The Siemens BQ2B040H is a molded case circuit breaker designed for reliable electrical protection. It is a 2-pole, 40 amp breaker rated for 120/240V systems with a high interrupting capacity of 22kA@240V. This thermal magnetic circuit breaker uses a bolt-on connection for secure installation. It is part of the BQ Series family and is suitable for use in Siemens panelboards.

Key Features:
✔ Part Number: BQ2B040H
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQ Series
✔ Type: BQH
✔ Voltage: 120/240
✔ Amperage: 40
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BQH
✔ MCM Size: Min. Wire Size 2 AWG (Al), 4 AWG (Cu) Max. Wire Size 1/0 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ UPC: 783643161610
✔ GTIN: 00783643161610
✔ Country of Origin: Mexico
✔ Dimensions: 2 in x 4 in x 4 in
✔ Weight: 0.75
✔ Panel Type: Siemens Panelboards
✔ Standards: CSA Certified, HACR Rated, UL Listed
✔ Certification: CSA Certified, HACR Rated, UL Listed
