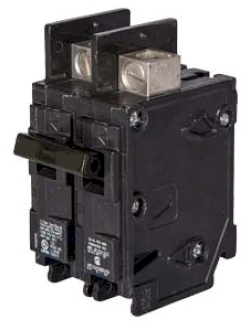

Siemens BQ2B05000S01 Molded Case Circuit Breaker | 240V 50A 2P 10kA@240V Bolt-on BQ Series

Product Description:
The Siemens BQ2B05000S01 is a 2-pole molded case circuit breaker rated for 50 amps at 240 volts. It features thermal magnetic protection and a bolt-on connection for secure installation. This breaker is part of the BQ Series and includes a non-interchangeable 120V shunt trip function. It is designed for use in Siemens panelboards and is UL Listed.

Key Features:
✔ Part Number: BQ2B05000S01
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQ Series
✔ Type: BQ
✔ Voltage: 240
✔ Amperage: 50
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BQ
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 783643237759
✔ GTIN: 00783643237759
✔ Country of Origin: Mexico
✔ Dimensions: 3.937 x 5.906 x 2.756
✔ Weight: 1
✔ Panel Type: Siemens Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: UL Listed
