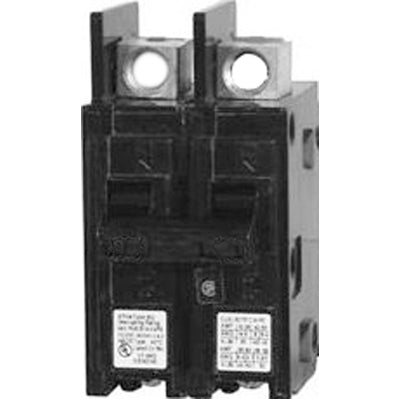

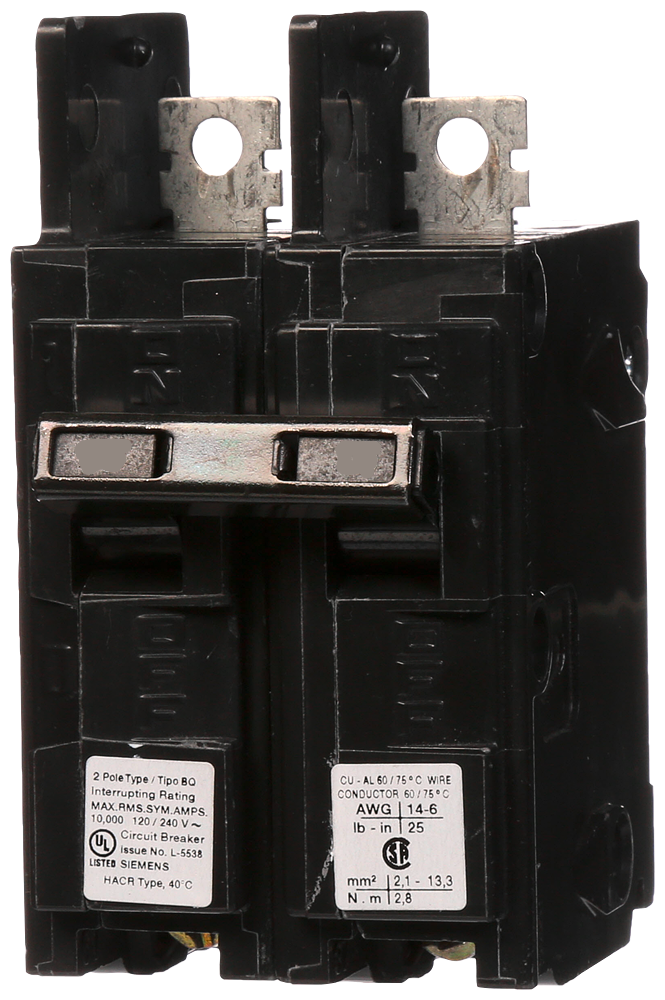

Siemens BQ2B080H Molded Case Circuit Breaker | 120/240V 80A 2 Pole 22kA@240V Bolt-on BQ Series

Product Description:
The Siemens BQ2B080H is a Molded Case Circuit Breaker from the BQ Series family. It is a 2-pole, 80 amp breaker designed for 120/240V systems with a high interrupting capacity of 22kA at 240V. This thermal magnetic circuit breaker uses a bolt-on connection for secure installation. It is compatible with Siemens panelboards and meets UL and HACR standards.

Key Features:
✔ Part Number: BQ2B080H
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQ Series
✔ Type: BQH
✔ Voltage: 120/240
✔ Amperage: 80
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BQH
✔ MCM Size: Min. Wire Size 2 AWG (Al), 4 AWG (Cu) Max. Wire Size 1/0 AWG
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ UPC: 783643226135
✔ GTIN: 00783643226135
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 2 in x 2 in
✔ Weight: 0.75
✔ Panel Type: Siemens Panelboards
✔ Standards: HACR Rated, UL
✔ Certification: HACR Rated, UL
