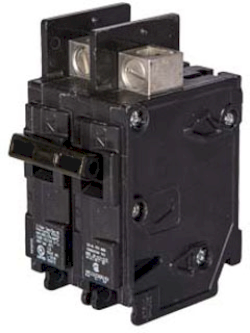

Siemens BQ2B09000S01 Molded Case Circuit Breaker | 240V 90A 2P 10kA@240V Bolt-on BQ Series

Product Description:
The Siemens BQ2B09000S01 is a Molded Case Circuit Breaker from the BQ Series family. It features 2 poles, 240V voltage, and 90A amperage with a 10kA@240V AIC rating. This breaker uses a bolt-on connection and includes thermal magnetic protection. It comes with a non-interchangeable 120V shunt trip.

Key Features:
✔ Part Number: BQ2B09000S01
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQ Series
✔ Type: BQ
✔ Voltage: 240
✔ Amperage: 90
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BQ
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 783643237797
✔ GTIN: 00783643237797
✔ Country of Origin: Mexico
✔ Dimensions: 3.937 x 5.906 x 2.756
✔ Weight: 0.75
✔ Panel Type: Siemens Panelboards
✔ Standards: HACR Rated, UL Listed
