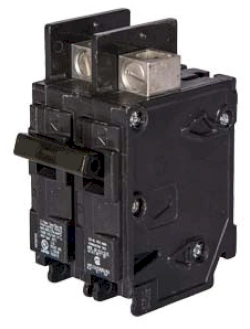

Siemens BQ2B12500S01 Molded Case Circuit Breaker | 240V 125A 2P 10kA@240V Bolt-on BQ Series
Siemens BQ2B12500S01 Molded Case Circuit Breaker | 240V 125A 2P 10kA@240V Bolt-on BQ Series
Price:
Sale
Sold out
Regular price
$1,597.32 USD
Regular price
$1,372.00 USD
Sale price
$1,597.32 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Siemens BQ2B12500S01 is a 2-pole molded case circuit breaker with a 125 amp rating and 240V capacity. It features thermal magnetic protection and a bolt-on connection for secure installation. This breaker has an AIC rating of 10kA@240V and includes a 120V shunt trip. It is part of the BQ Series family and is designed for use in Siemens panelboards.
Key Features:
✔ Part Number: BQ2B12500S01
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQ Series
✔ Type: BQ
✔ Voltage: 240
✔ Amperage: 125
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BQ
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 783643088849
✔ GTIN: 00783643088849
✔ Country of Origin: Mexico
✔ Dimensions: 2.756 x 4.724 x 2.756
✔ Weight: 1
✔ Panel Type: Siemens Panelboards
✔ Standards: HACR Rated, UL Listed
The Siemens BQ2B12500S01 is a 2-pole molded case circuit breaker with a 125 amp rating and 240V capacity. It features thermal magnetic protection and a bolt-on connection for secure installation. This breaker has an AIC rating of 10kA@240V and includes a 120V shunt trip. It is part of the BQ Series family and is designed for use in Siemens panelboards.
