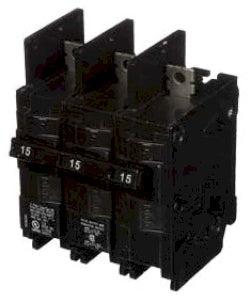

Siemens BQ3B01500S01 Molded Case Circuit Breaker | 240V 15A 3P 10kA@240V Bolt-on BQ Series

Product Description:
The Siemens BQ3B01500S01 is a molded case circuit breaker designed for reliable electrical protection. It features a 3-pole configuration with a 240V voltage rating and 15A amperage capacity. This model includes thermal magnetic protection and a bolt-on connection for secure installation. It comes complete with a non-interchangeable 120V shunt trip.

Key Features:
✔ Part Number: BQ3B01500S01
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQ Series
✔ Type: BQ
✔ Voltage: 240
✔ Amperage: 15
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BQ
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 783643237810
✔ GTIN: 00783643237810
✔ Country of Origin: Mexico
✔ Dimensions: 4 in x 3 in x 3 in
✔ Weight: 1
✔ Panel Type: Siemens Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
