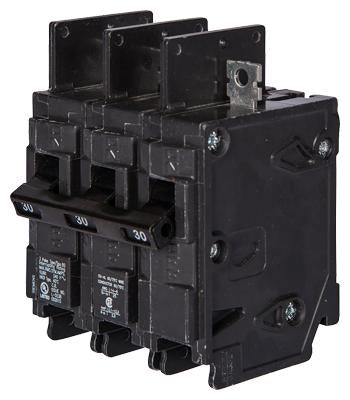

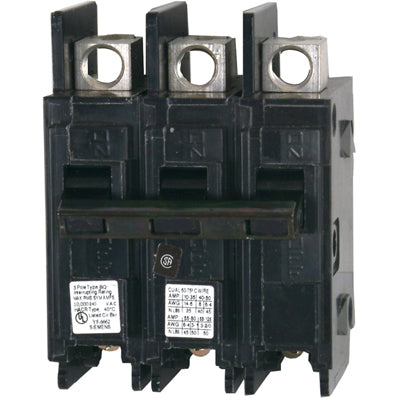

Siemens BQ3B035H Molded Case Circuit Breaker | 240V 35A 3P 22kA@240V Bolt-On BQ Series

Product Description:
The Siemens BQ3B035H is a Molded Case Circuit Breaker from the BQ Series family. It is a 3-pole, 35 amp breaker rated for 240 volts with an AIC rating of 22kA@240V. This model features thermal magnetic protection and a bolt-on connection for secure installation. It is designed for use in Siemens panelboards and is HACR rated and UL listed.

Key Features:
✔ Part Number: BQ3B035H
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQ Series
✔ Type: BQH
✔ Voltage: 240
✔ Amperage: 35
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BQH
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ UPC: 783643239586
✔ GTIN: 00783643239586
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 3 in x 3 in
✔ Weight: 1
✔ Panel Type: Siemens Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
