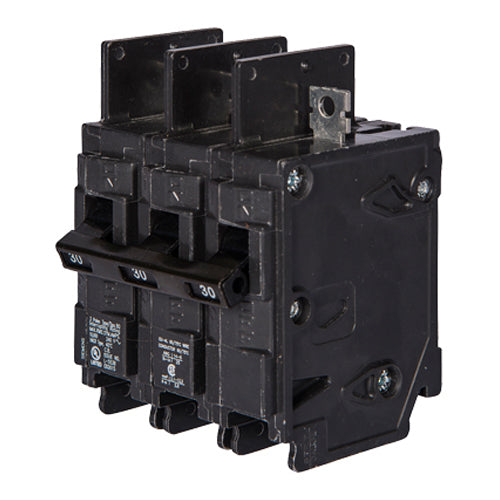

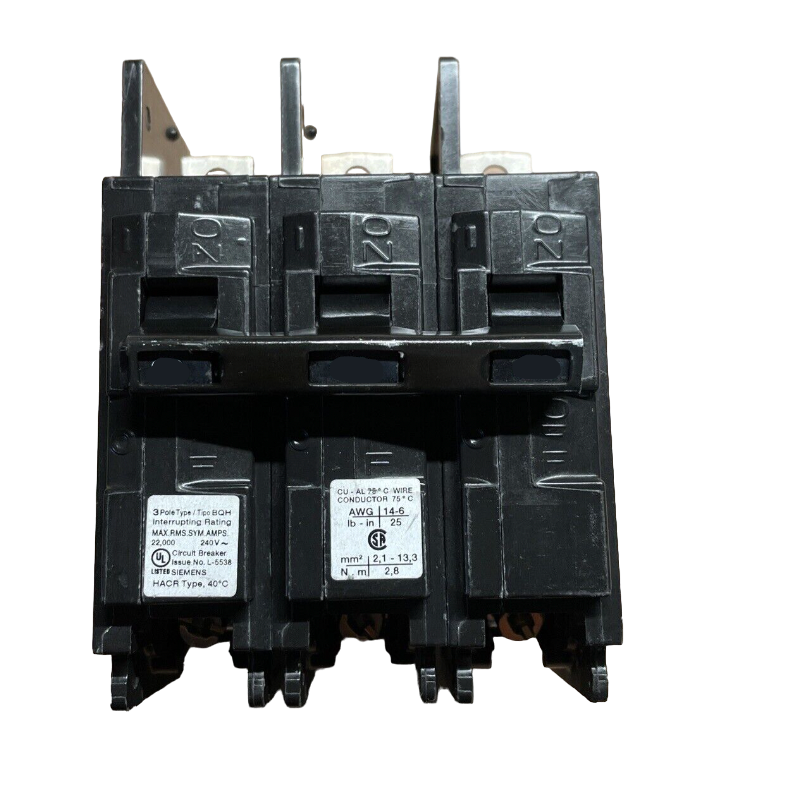

Siemens BQ3B070H Circuit Breaker | 240V 70A 3P 22kA@240V Bolt-on BQ Series

Product Description:
The Siemens BQ3B070H is a 3-pole molded case circuit breaker with a 70 amp rating and 240V capacity. It features thermal magnetic protection and a high interrupting capacity of 22kA@240V. Designed for Siemens panelboards, it uses a bolt-on connection and complies with UL standards.

Key Features:
✔ Part Number: BQ3B070H
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQ Series
✔ Type: BQH
✔ Voltage: 240
✔ Amperage: 70
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BQH
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ UPC: 783643161733
✔ GTIN: 00783643161733
✔ Country of Origin: Mexico
✔ Dimensions: 2.756 x 2.756 x 3.937
✔ Weight: 1
✔ Panel Type: Siemens Panelboards
✔ Standards: HACR Rated, UL Listed
