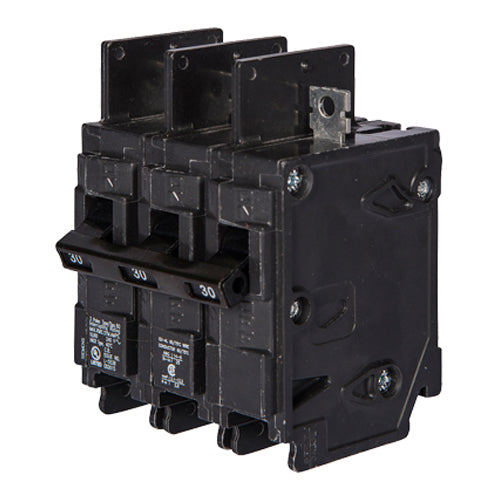

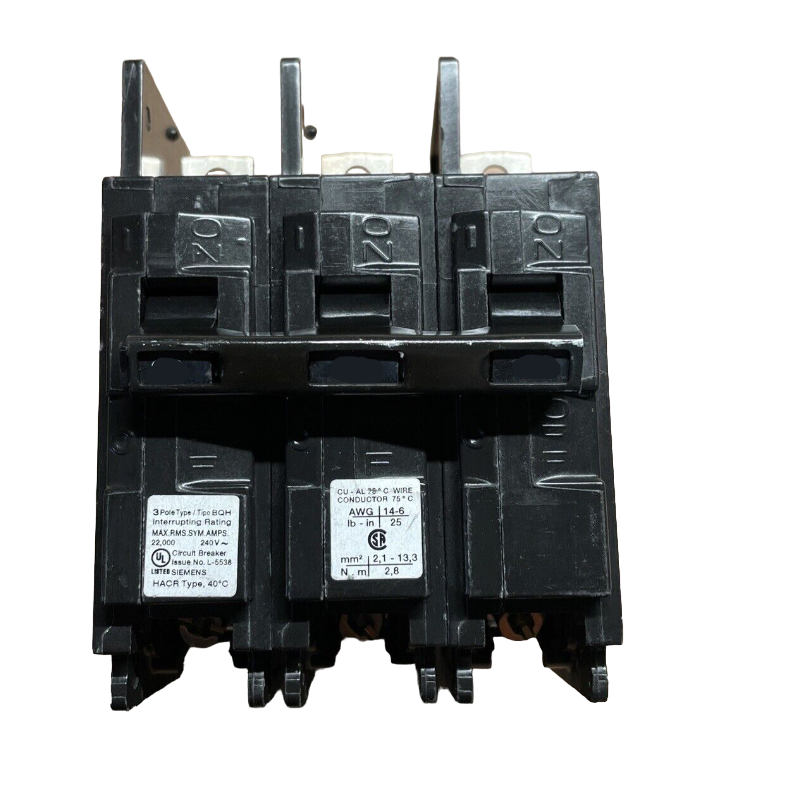

Siemens BQ3B090H Molded Case Circuit Breaker | 240V 90A 3P 22kA@240V Bolt-on BQ Series

Product Description:
The Siemens BQ3B090H is a Molded Case Circuit Breaker from the BQ Series family. It is a 3-pole, 240 Volt, 90 amp rated breaker with a 22kA@240V AIC rating and bolt-on connections. This model provides thermal magnetic protection and is designed for use in Siemens panelboards.

Key Features:
✔ Part Number: BQ3B090H
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQ Series
✔ Type: BQH
✔ Voltage: 240
✔ Amperage: 90
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BQH
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
✔ Breaker Type: High Interrupting Capacity
✔ Protection: Thermal Magnetic
✔ UPC: 783643161740
✔ GTIN: 00783643161740
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 4 in x 4 in
✔ Weight: 1
✔ Panel Type: Siemens Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
