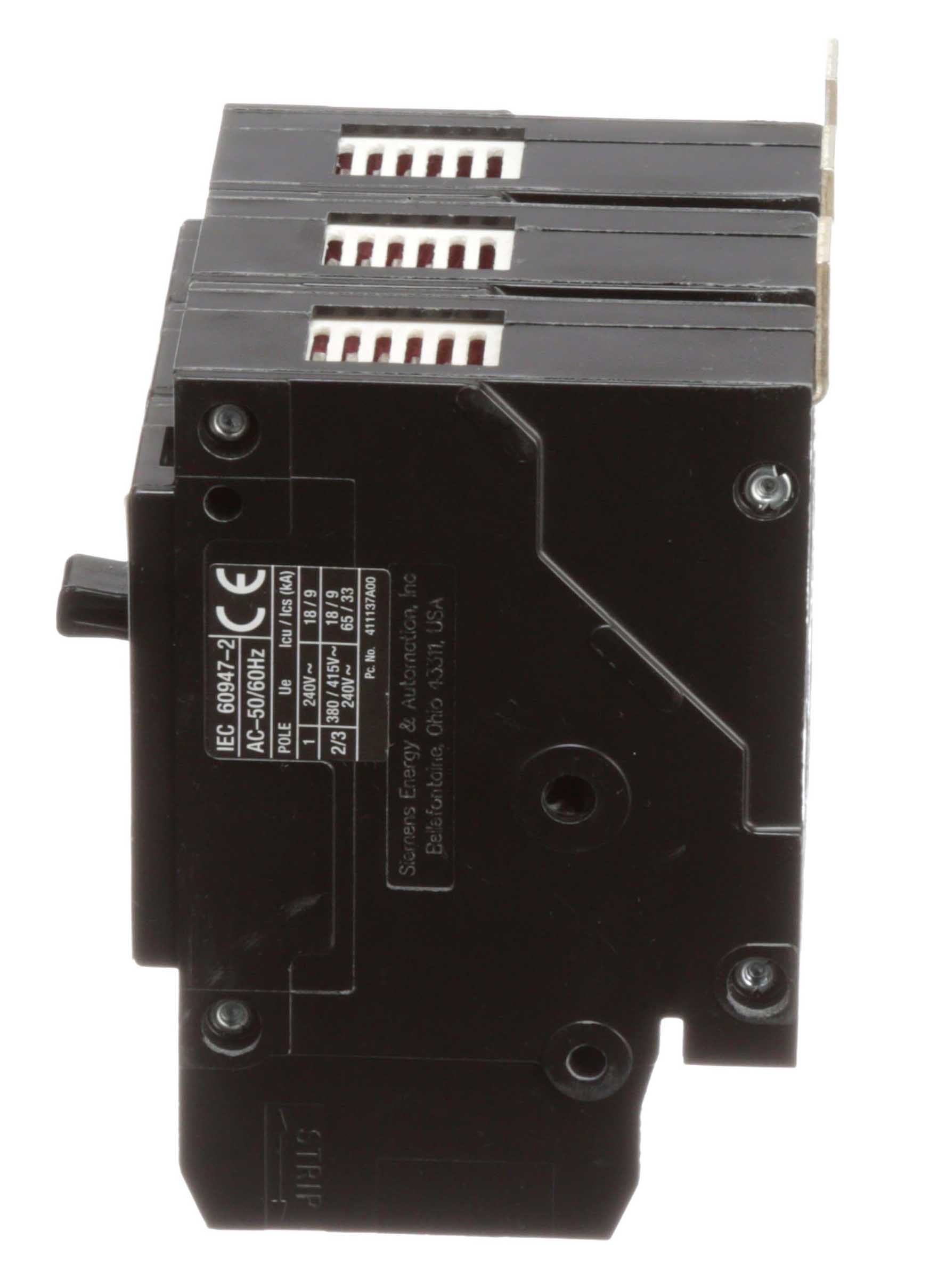

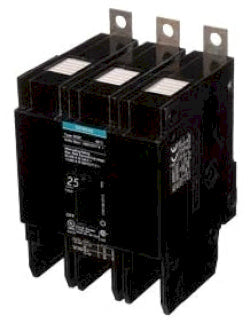

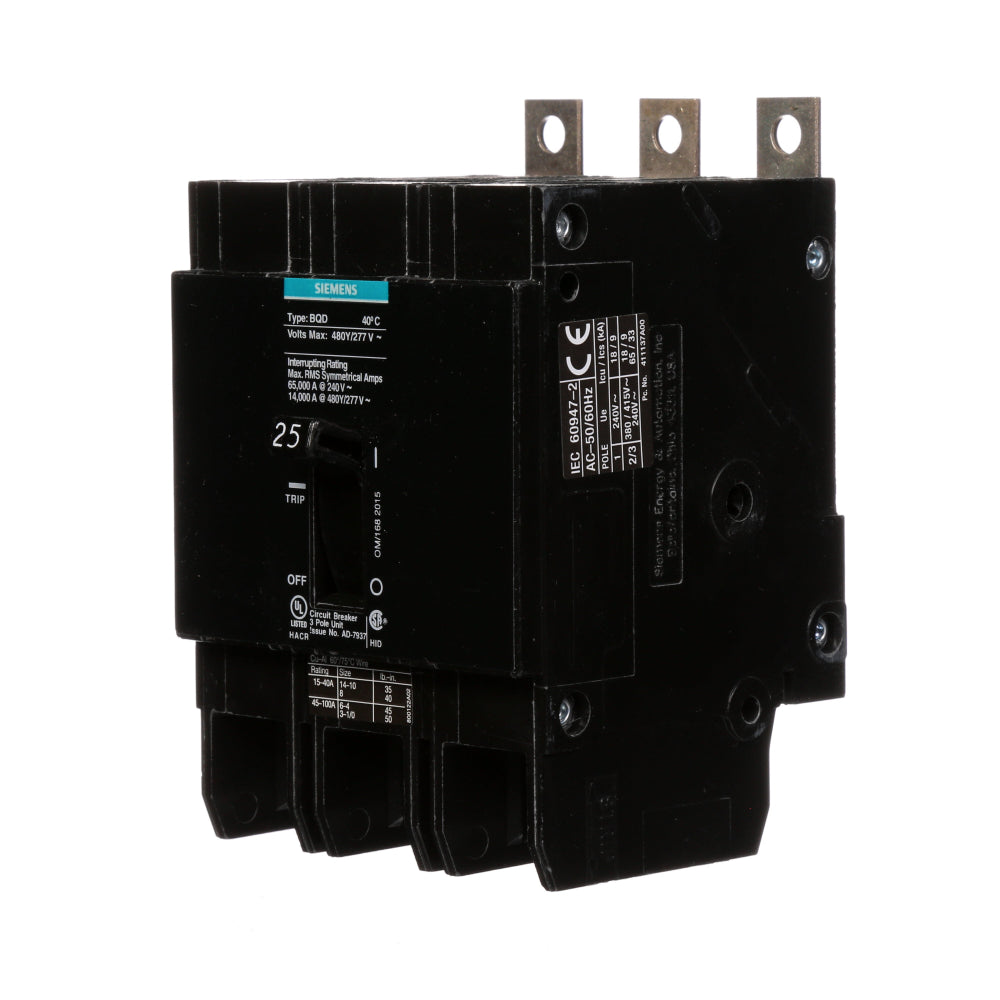

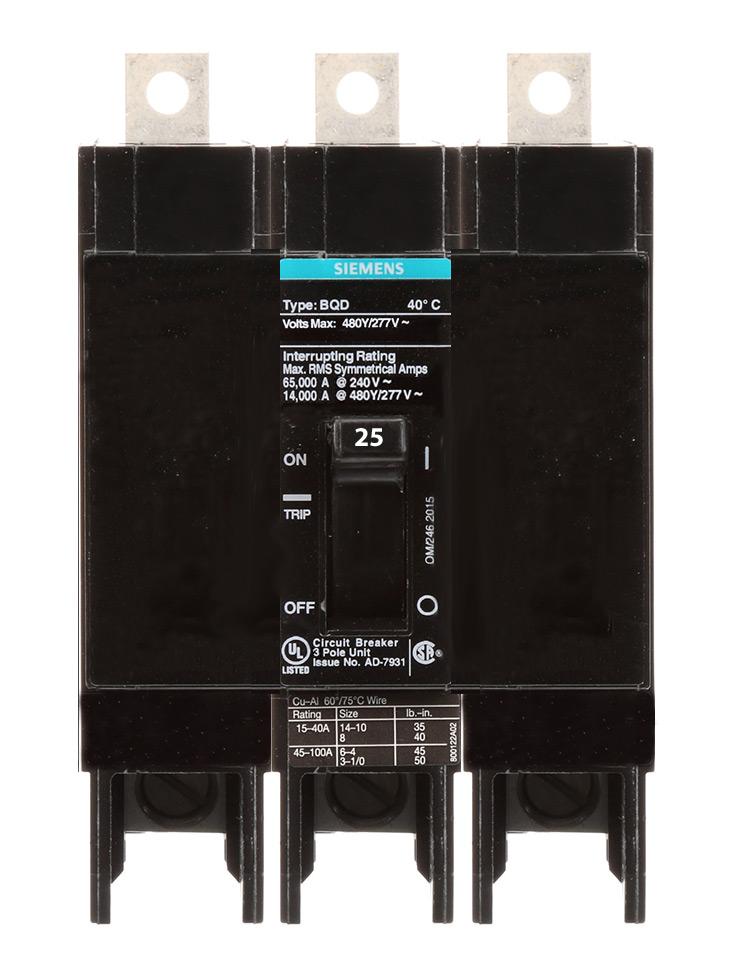

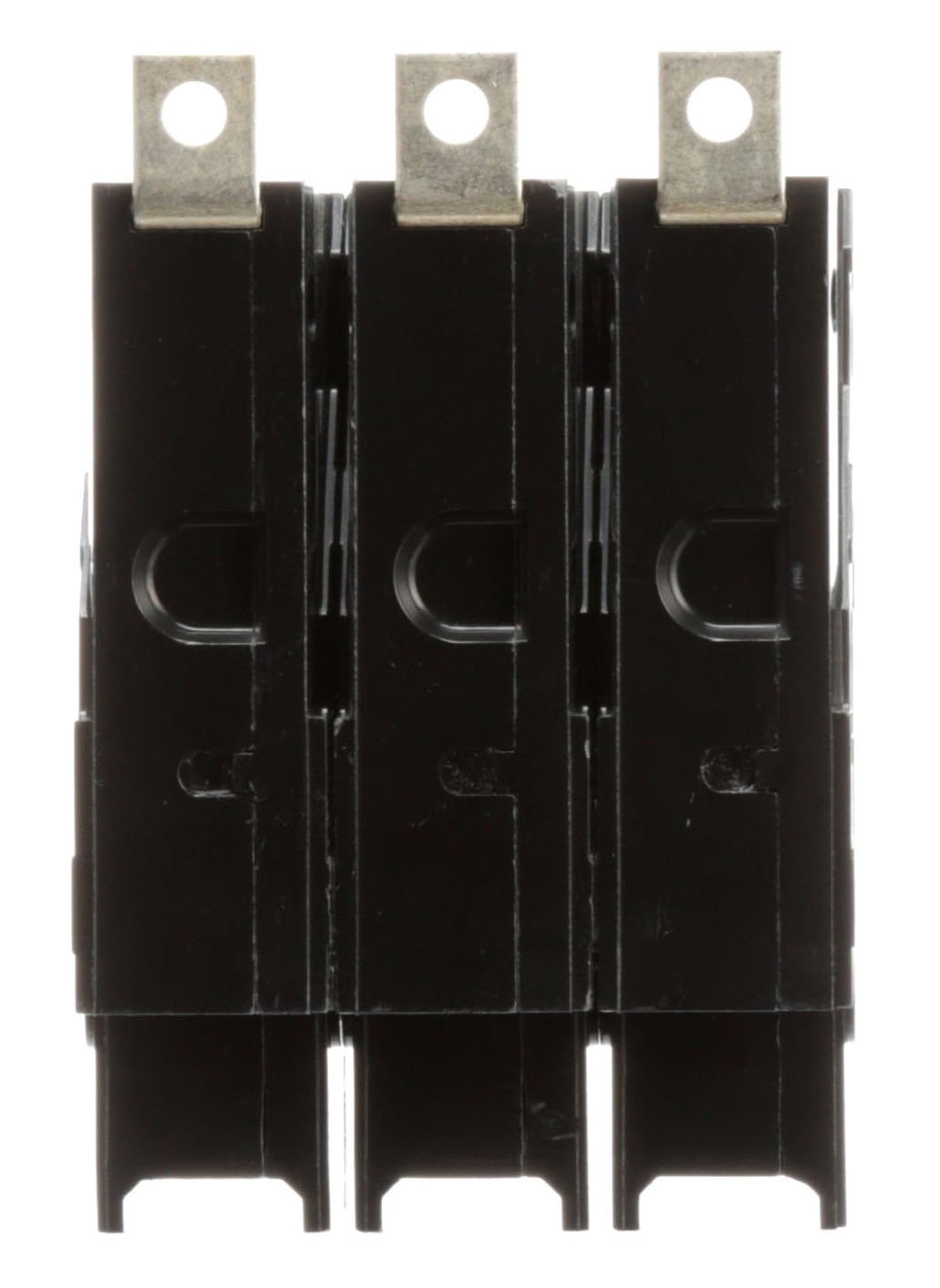

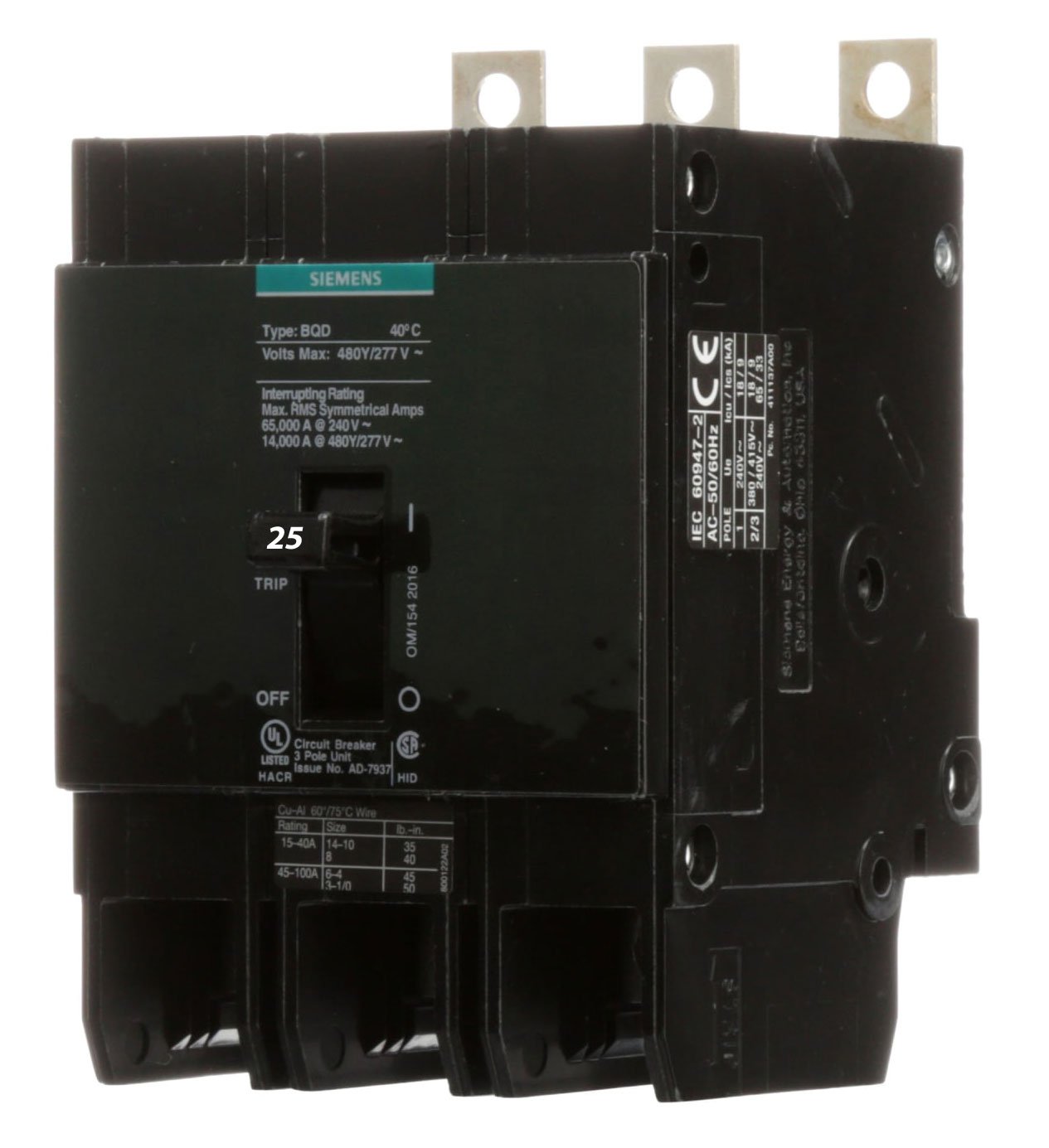

Siemens BQD325 Circuit Breaker | 480V 25A 3P 14kA@480V Bolt-on BQD Series
Siemens BQD325 Circuit Breaker | 480V 25A 3P 14kA@480V Bolt-on BQD Series
Price:
Sale
Sold out
Regular price
$265.75 USD
Regular price
$1,352.00 USD
Sale price
$265.75 USD
Unit price
per
Shipping calculated at checkout.
Stock:
32 in stock
Couldn't load pickup availability
Product Description:
The Siemens BQD325 is a molded case circuit breaker designed for reliable electrical protection. It features a 3-pole configuration with a 480V voltage rating and 25A amperage capacity. This thermal magnetic breaker offers long-time and instantaneous protection functions. It is suitable for use in Siemens P1 panelboards and complies with industry standards.
Key Features:
✔ Part Number: BQD325
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQD Series
✔ Type: BQD
✔ Voltage: 480
✔ Amperage: 25
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 14kA@480V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/BQD
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643277366
✔ GTIN: 00783643277366
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 4.49 in x 4.49 in
✔ Weight: 1
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: CSA-C22.2, IEC 60947-2, UL 489
✔ Certification: CSA-C22.2, IEC 60947-2, UL 489
