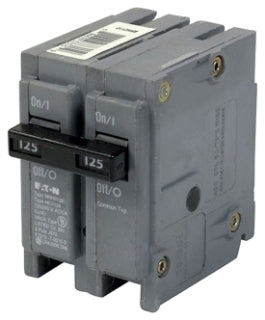

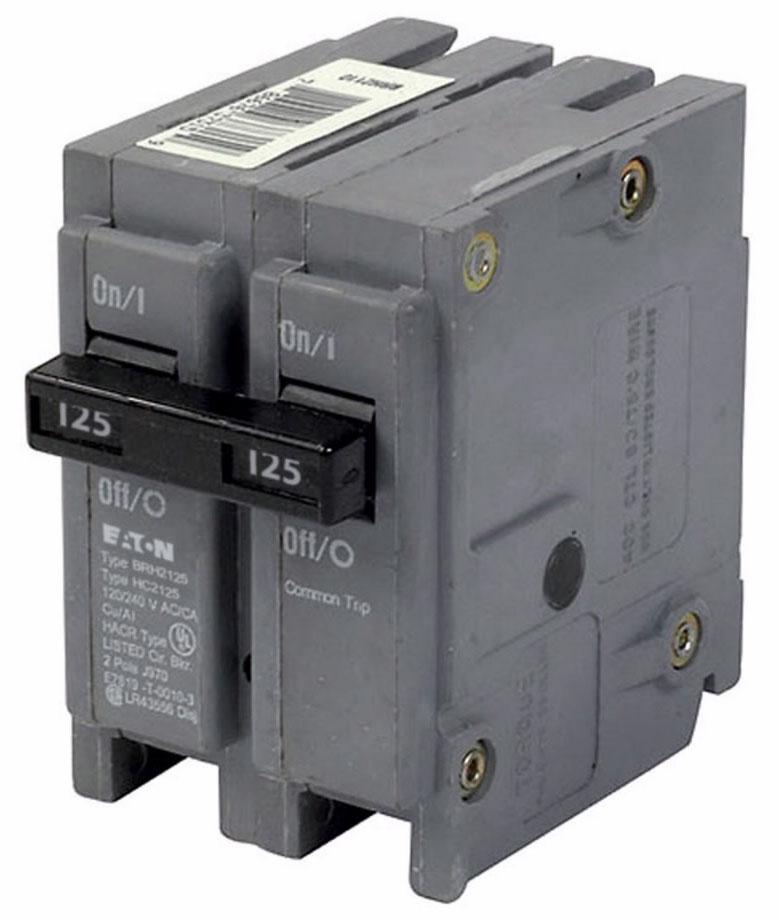

Cutler Hammer BRH2125 Circuit Breaker | 240V 125A 2P 22kA@240V Plug-In BR Series

Product Description:
The Cutler Hammer BRH2125 is a Molded Case Circuit Breaker from the BR Series family. It features a 2-pole design with a 240V, 125A rating and a 22kA@240V AIC rating. This breaker uses a plug-in connection and offers thermal magnetic protection for reliable circuit safety. Key Features:
✔ Part Number: BRH2125
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BR Series
✔ Type: BRH
✔ Voltage: 240
✔ Amperage: 125
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 22kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ MCM Size: Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 786676373951
✔ GTIN: 00786676373951
✔ Country of Origin: Dominican Republic
✔ Dimensions: Length 3in Height 3in Width 2in
✔ Weight: 0.68
✔ Panel Type: Type BR Loadcenters
✔ Standards: UL 490
✔ Certification: UL 490, Federal Specifications Classification W-C376
✔ Wire Size: #4 to 2/0 AWG CU/AL
