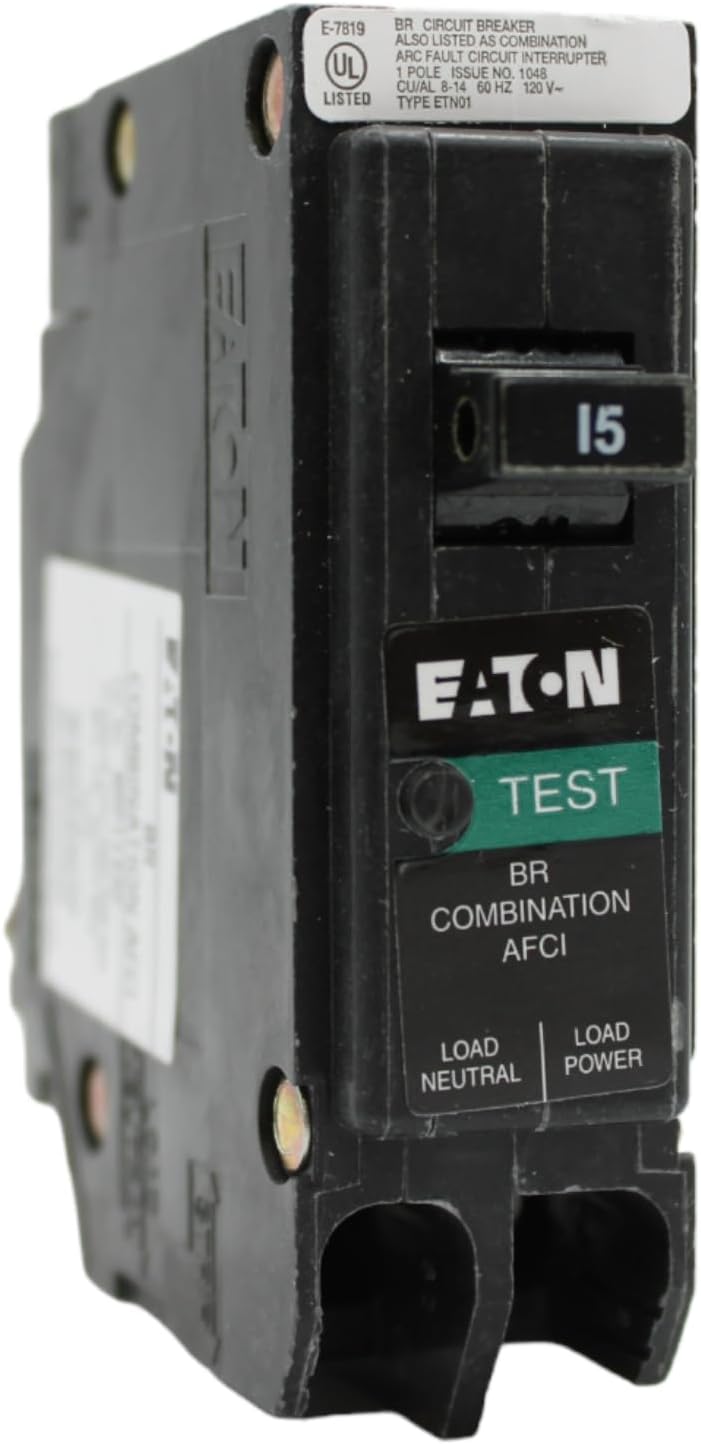

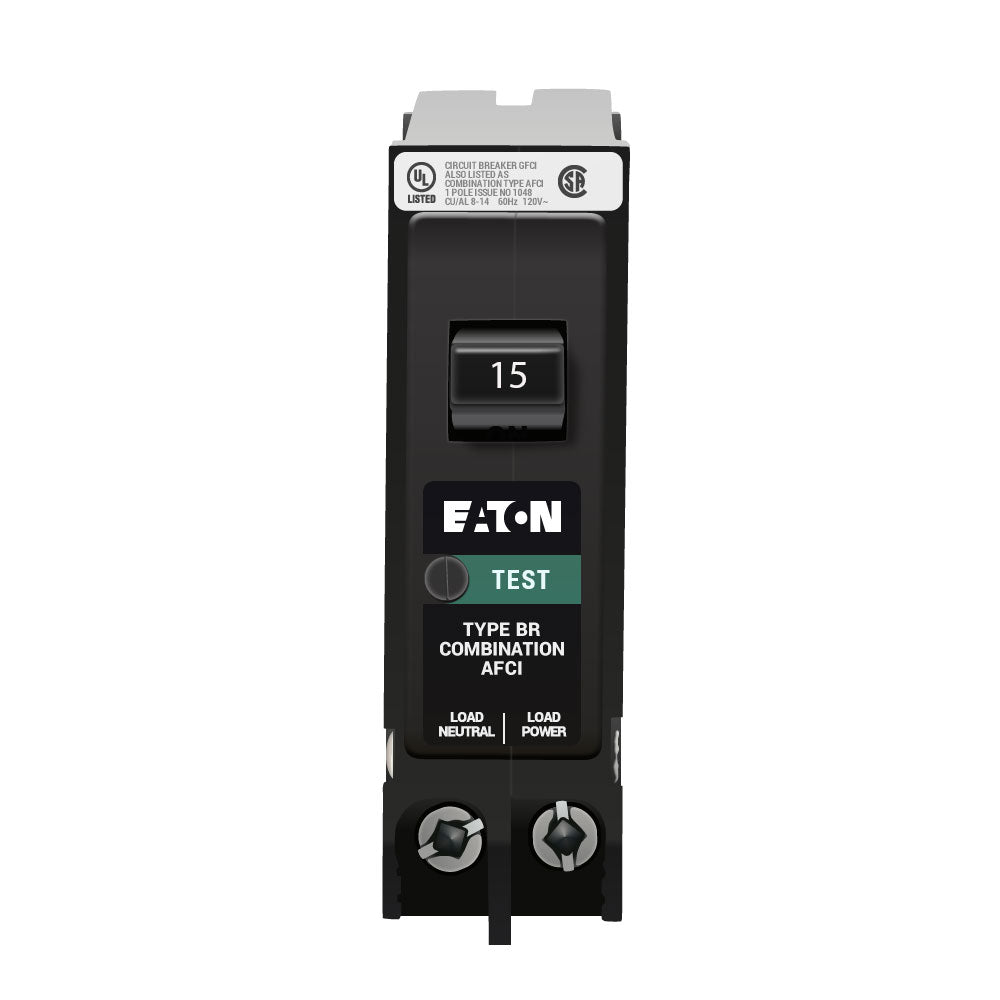

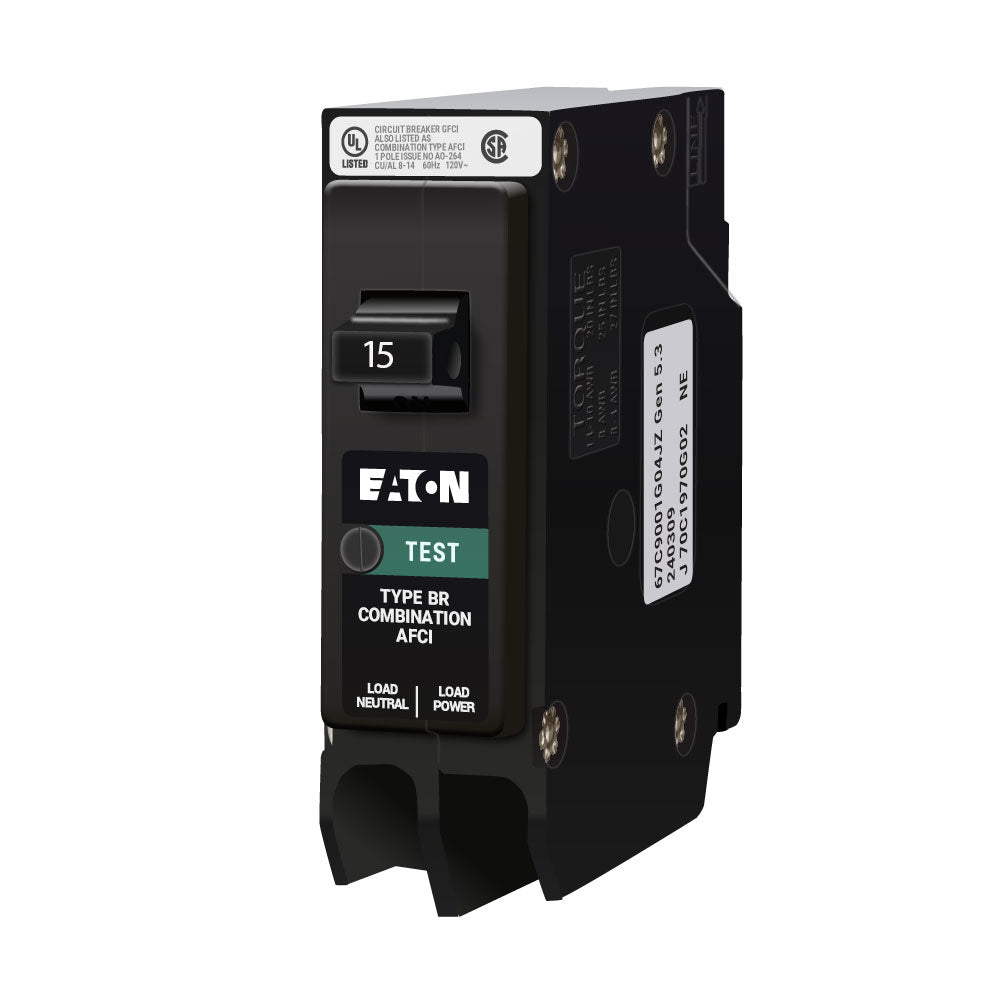

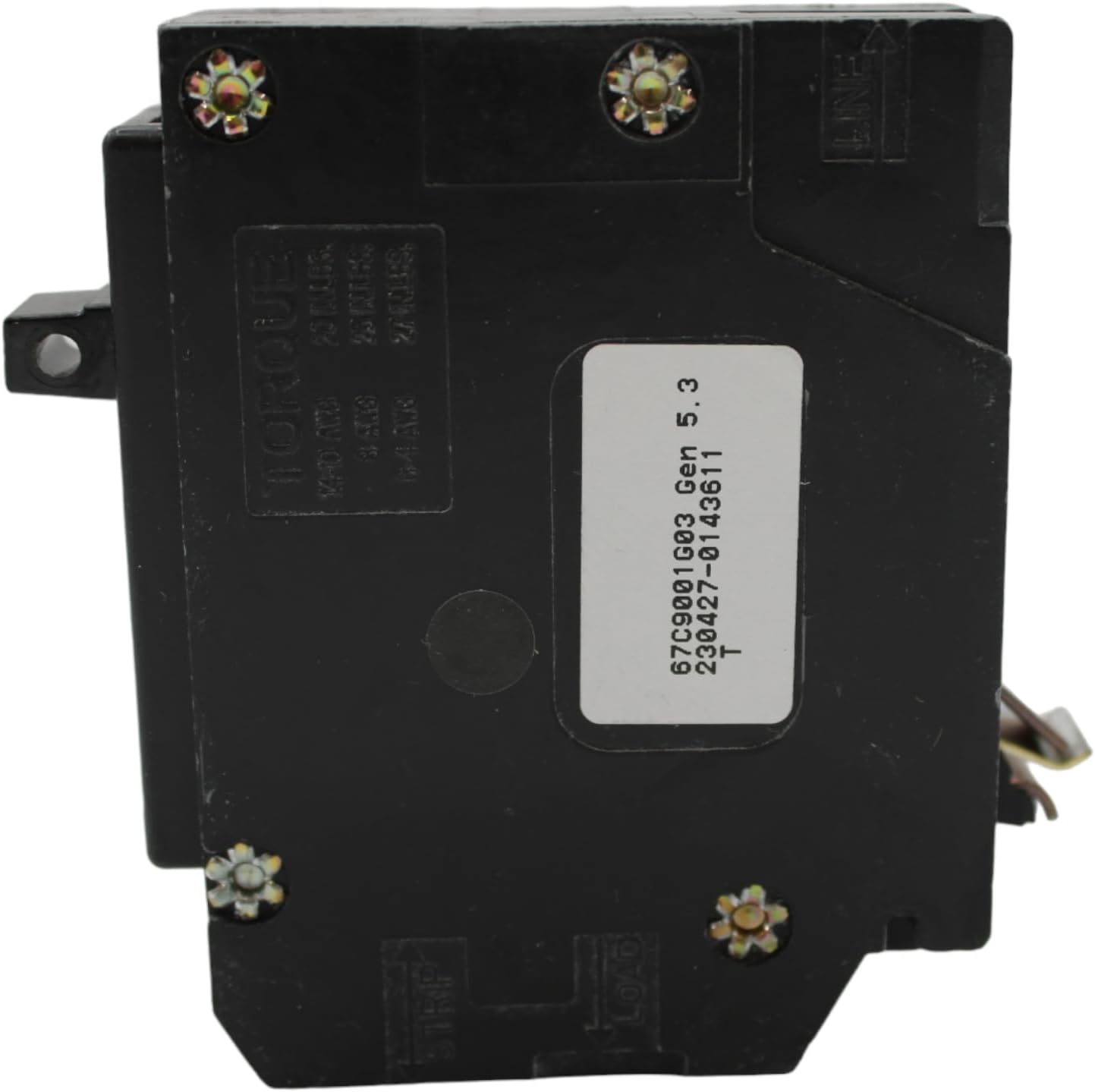

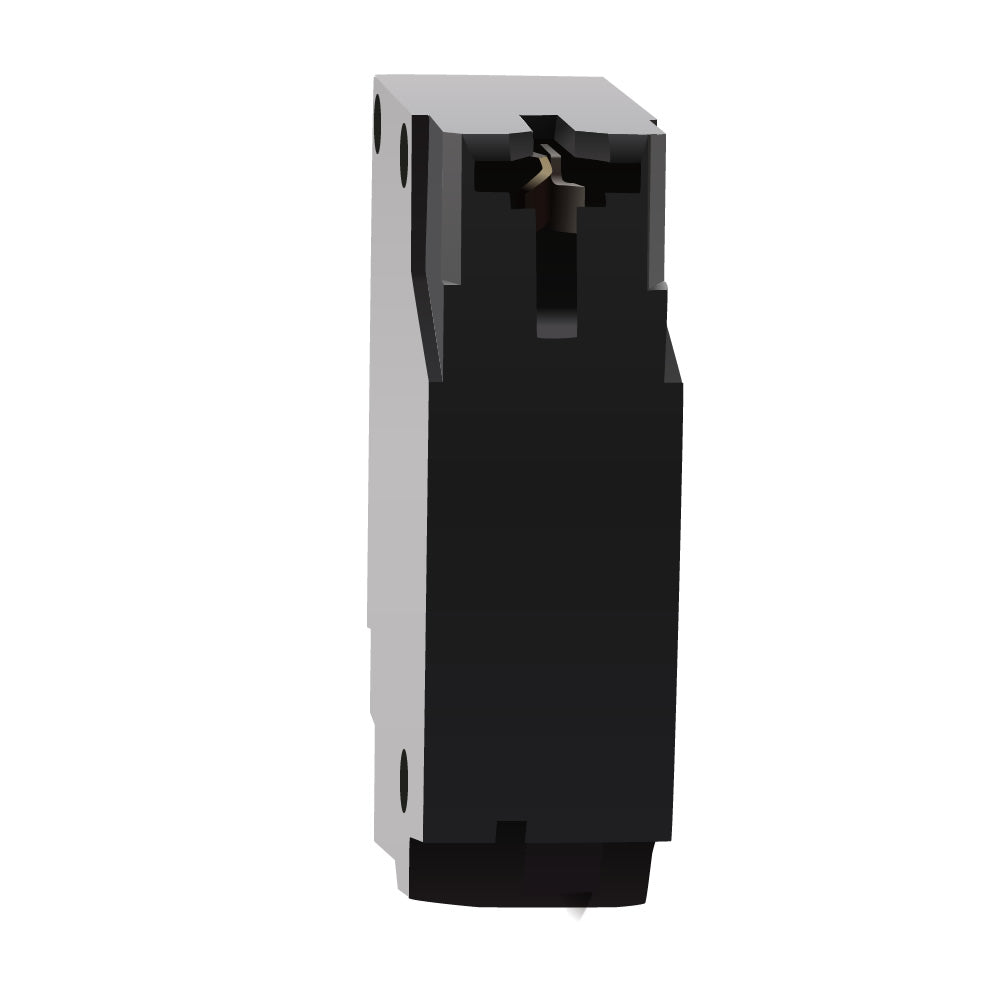

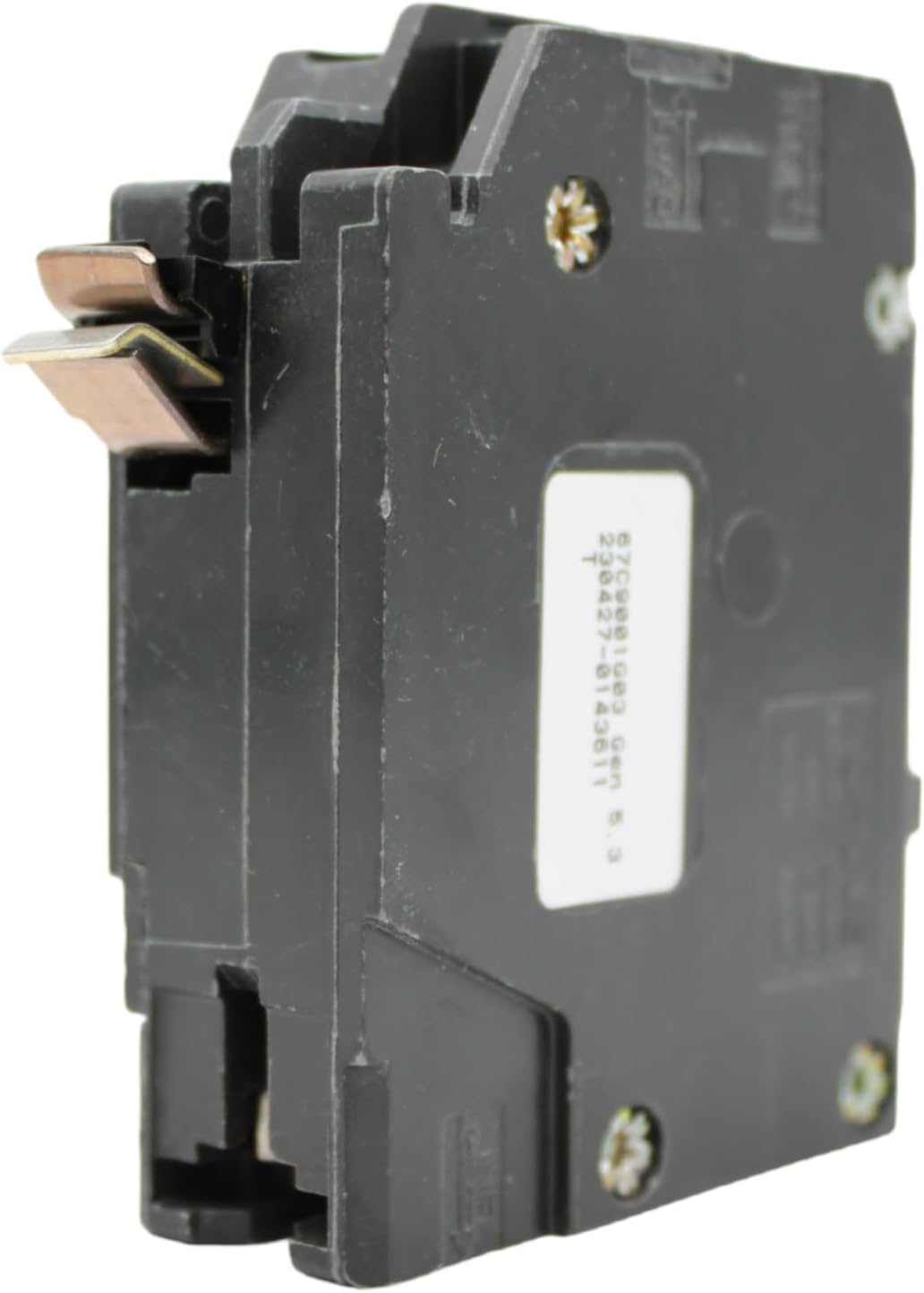

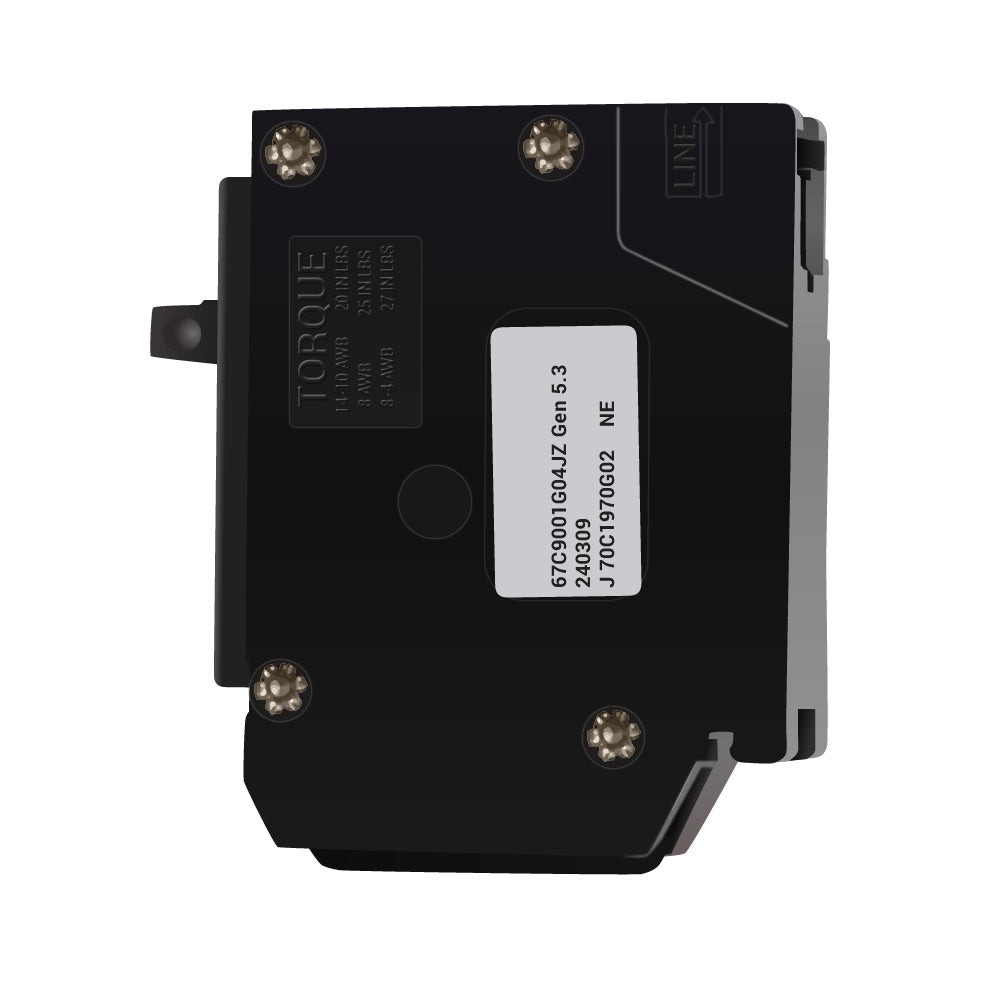

Eaton BRP115AF Circuit Breaker | 120V 15A 1P 10kA@120V Type BR

Product Description:
The Eaton BRP115AF is a Molded Case Circuit Breaker from the Type BR family. It is a 1 pole, 120 Volt, 15 amp breaker with a 10kA@120V AIC rating and Plug-In connection. This model features Thermal Magnetic protection and is designed for Type BR Loadcenters. It is UL Listed and suitable for residential or light commercial applications.

Key Features:
✔ Part Number: BRP115AF
✔ Manufacturer: Emery Jensen Distribution LLC
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Type BR
✔ Type: BRP
✔ Voltage: 120
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Plug-On
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: Combination Arc Fault Circuit Interrupter
✔ Protection: Thermal Magnetic
✔ Trip Type: AFCI Combination circuit breaker
✔ UPC: 786689041014
✔ GTIN: 00786689041014
✔ Country of Origin: Dominican Republic
✔ Dimensions: 2.56 in x 1.1 in
✔ Weight: 0.45 lb
✔ Panel Type: Type BR Loadcenters
✔ Standards: UL Listed
✔ Certification: UL
✔ Wire Size: #14-8 AWG Cu/Al
