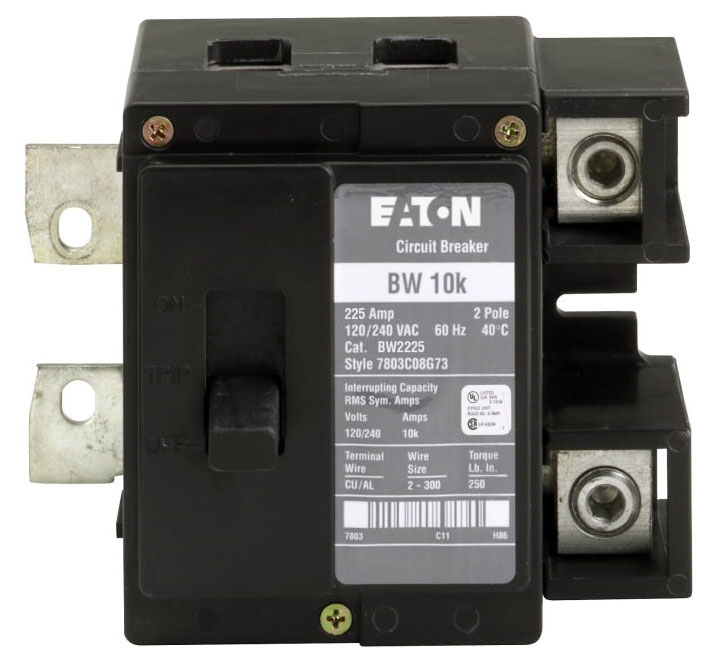

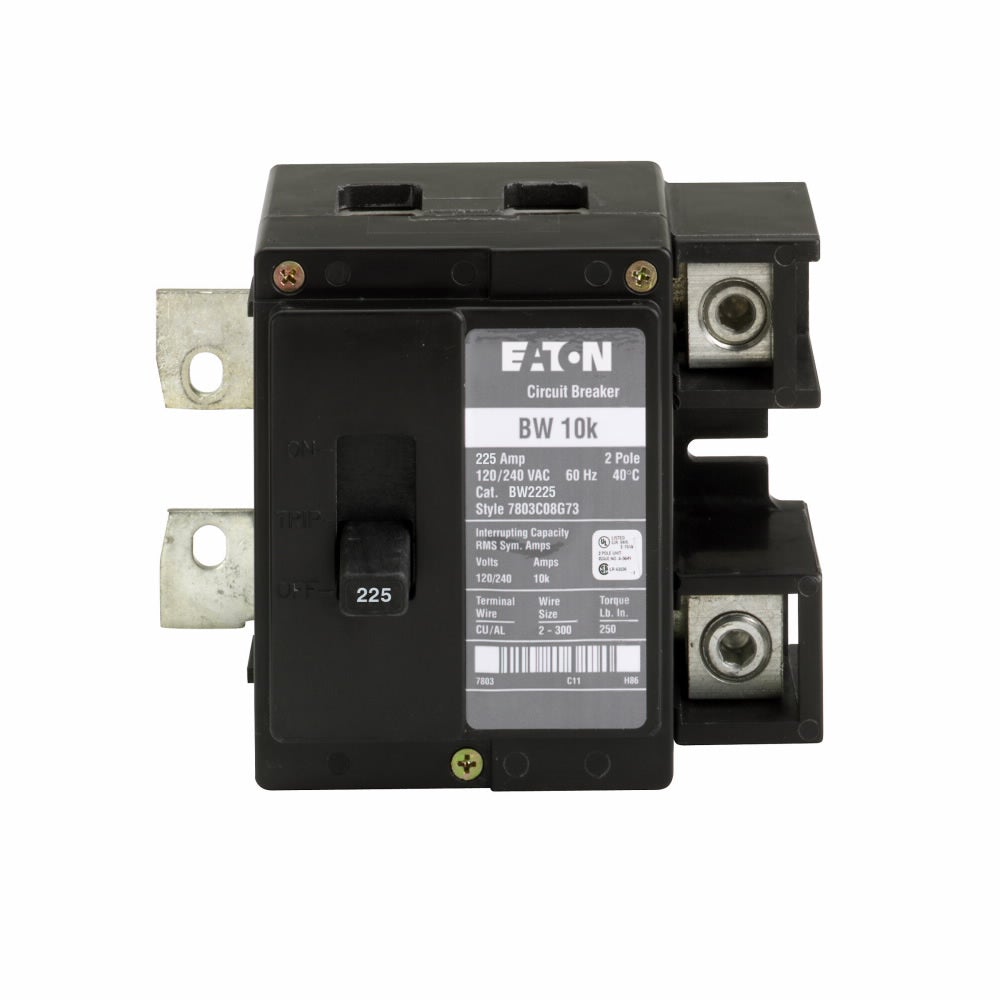

Cutler Hammer BW2225 Circuit Breaker | BW Series BW 240V 225A

Product Description:
The Cutler Hammer BW2225 is a Molded Case Circuit Breaker from the BW Series. It features a 2-pole design with a 240V, 225A rating and a 10kA@240V AIC rating. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: BW2225
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BW Series
✔ Type: BW
✔ Voltage: 240V
✔ Amperage: 225A
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ UPC: 786679122556
✔ GTIN: 00786679122556
✔ Country of Origin: Dominican Republic
✔ Dimensions: 6.25in (L) x 5in (H) x 5.25in (W)
✔ Weight: 2.75 lbs
✔ Certification: UL 489
✔ Wire Size: #2 AWG to 300KCmil CU/AL
