Product Description:

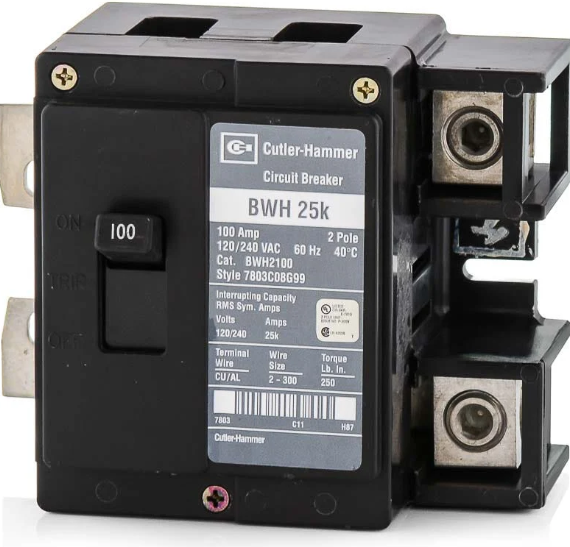

The Cutler Hammer BWH2100 is a Molded Case Circuit Breaker from the BWH Series. It features a 2-pole design, 240V voltage rating, and 100A amperage with a 25kA@240V AIC rating. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: BWH2100
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BWH Series
✔ Type: BWH
✔ Voltage: 240V
✔ Amperage: 100A
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 25kA@240V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ UPC: 782116061105
✔ GTIN: 00782116061105
✔ Country of Origin: Dominican Republic
✔ Dimensions: 6.25in (L) x 5.25in (H) x 5.25in (W)
✔ Weight: 2.75 lbs
✔ Certification: UL 489, Federal Specifications W-C375
✔ Wire Size: 2 AWG
