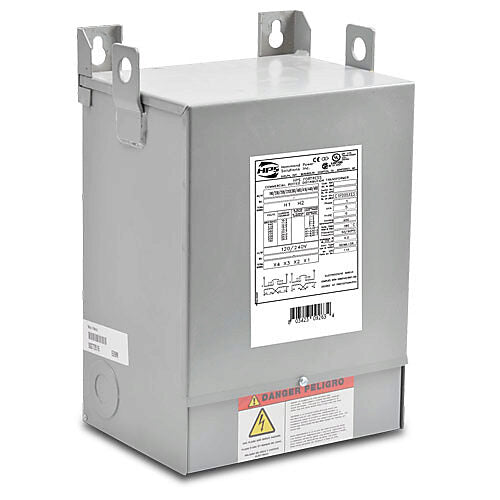

Hammond Power Solutions C1F005XES Transformer | 5kVA 120/240V Type 3R Enclosure
Hammond Power Solutions C1F005XES Transformer | 5kVA 120/240V Type 3R Enclosure
Price:
Sale
Sold out
Regular price
$1,246.84 USD
Regular price
$1,302.00 USD
Sale price
$1,246.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 6 left
Couldn't load pickup availability
⚠️ Special Order Policy – Hammond Products
Hammond transformers are built to order and processed immediately after purchase. All Hammond items are Non-Cancellable and Non-Returnable once the order is placed. Please confirm specifications carefully before checkout.
Product Description:
This general duty transformer is designed for industrial power distribution and control systems. It features versatile primary and secondary voltage configurations with aluminum windings and a durable Type 3R/IP24 enclosure. The unit operates with a 135°C temperature rise and complies with IBC 2018 seismic standards for reliable performance in demanding environments.
Key Features:
✔ Part Number: C1F005XES
✔ Manufacturer: Hammond Power Solutions
✔ Category: Transformer
✔ Phase: 1
✔ Duty: General Duty
✔ Frequency: 50/60Hz,60Hz(1)
✔ Primary Voltage: 120/240,130/262(1)
✔ Primary Connection: Parallel x Series (Vx2V)
✔ Secondary Voltage: 120/240,130/262(1)
✔ Secondary Connection: Parallel/Series-N (V/2V)
✔ Material: Aluminum
✔ Temperature Rise: 135°C
✔ Insulation Class: 180°C
✔ EKVA: 5
✔ Seismic Compliance: IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
✔ Sound Level: 45dBA (NEMA ST-20)
✔ Impedance (Std): 1% - 5%
✔ Enclosure Type: Type 3R / IP24
✔ Enclosure Finish: ANSI 61 Grey, UL50
✔ Enclosure Dimensions: 17.25in/439mm(H), 10in/254mm(W), 7.75in/197mm(D)
✔ Electrostatic Shield: Single
✔ Standard kVA: 5
✔ Vector Configuration: 0°
✔ UPC: 803423092634
✔ Weight: 120
✔ Certification: CSA, UL, CE
Resources:
✔ Engineering Drawing (PDF)
✔ Brochure
✔ Hammond Product Application Videos
✔ Frequently Asked Questions
✔ Troubleshooting Guide
✔ Enclosure CAD Drawing (PDF)
