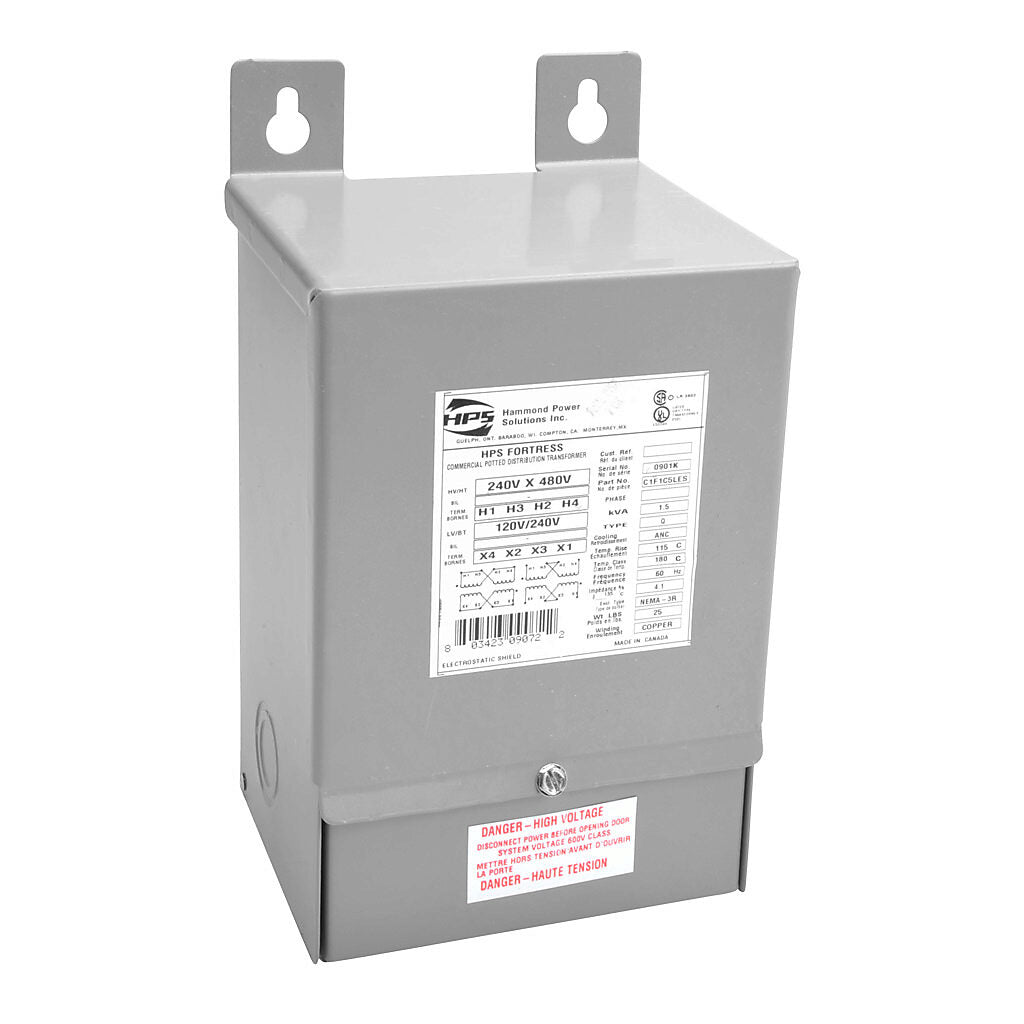

Hammond Power Solutions C1F1C5LES Transformer 1.5kVA 240x480V-120/240V Fortress
Hammond Power Solutions C1F1C5LES Transformer 1.5kVA 240x480V-120/240V Fortress
Price:
Sale
Sold out
Regular price
$390.29 USD
Regular price
$401.00 USD
Sale price
$390.29 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
⚠️ Special Order Policy – Hammond Products
Hammond transformers are built to order and processed immediately after purchase. All Hammond items are Non-Cancellable and Non-Returnable once the order is placed. Please confirm specifications carefully before checkout.
Product Description:
This single-phase general duty transformer is designed for industrial power distribution applications. It features a flexible primary voltage configuration of 240x480V and delivers a secondary output of 120/240V. Constructed with copper windings, it is housed in a Type 3R/IP24 rated enclosure and complies with IBC 2018 seismic standards. Typical applications include industrial control systems and machinery power supplies.
Key Features:
✔ Part Number: C1F1C5LES
✔ Manufacturer: Hammond Power Solutions
✔ Category: Transformer
✔ Phase: 1
✔ Duty: General Duty
✔ Frequency: 60Hz
✔ Primary Voltage: 240x480
✔ Primary Connection: Parallel x Series (Vx2V)
✔ Secondary Voltage: 120/240
✔ Secondary Connection: Parallel/Series-N (V/2V)
✔ Material: Copper
✔ Temperature Rise: 135°C
✔ Insulation Class: 180°C
✔ EKVA: 1.5
✔ Seismic Compliance: IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
✔ Sound Level: 45dBA (NEMA ST-20)
✔ Impedance (Std): 1% - 5%
✔ Secondary Termination (NPL): Wire Leads
✔ Enclosure Type: Type 3R / IP24
✔ Enclosure Finish: ANSI 61 Grey, UL50
✔ Enclosure Dimensions: 10.56in/269mm(H), 5.88in/150mm(W), 5.19in/132mm(D)
✔ Electrostatic Shield: Single
✔ Standard kVA: 1.5
✔ Vector Configuration: 0°
✔ UPC: 803423090722
✔ Weight: 36
✔ Certification: CSA, UL
Resources:
✔ Engineering Drawing (PDF)
✔ Brochure
✔ Hammond Product Application Videos
✔ Frequently Asked Questions
✔ Troubleshooting Guide
✔ Enclosure CAD Drawing (PDF)
